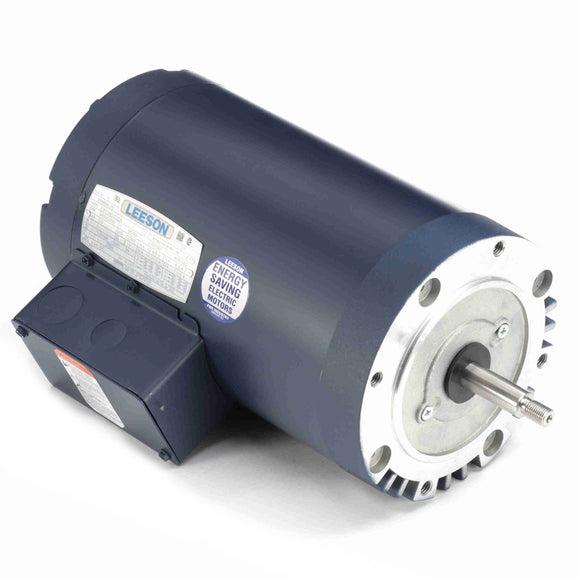

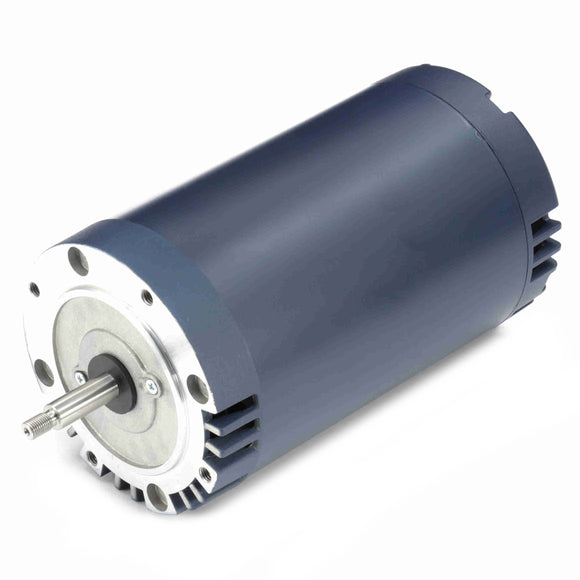

116698.00 Leeson 5HP Jet Pump Electric Motor, 3490RPM

$529.97 USD

Shipping calculated at checkout

Leeson Electric (Regal Rexnord) SKU: 116698.00 Barcode: 691720346570

30 Day
Return Policy

Ships Fast
in 24 hours

DP, 56J Frame, 230/460VAC 3-Phase 60Hz, C6T34DC92A, Round Body, Rolled Steel, 5/8" Threaded Shaft

Description Product Specs Manufacturer





Features




Features


  • NEMA 56 C face mounting flange

  • Threaded shafts made of 303 grade stainless steel

  • CCW rotation facing lead end

  • Double sealed bearings on shaft end

  • Terminal board with quick connects

  • Locked shaft end bearings






General Specifications





General Specifications






























Model :
C6T34DC92A
Catalog No :
116698.00

Part Description :
..5HP..3490RPM.56.DP.230/460V.3PH.60HZ.CONT.40C.1.15SF.C FACE.C6T34DC92A......NOT....3.7/2.2kW...
Category :
Jet Pump

Stock :
No






Nameplate Specifications





Nameplate Specifications








































































Output HP :
5 HP
Output KW :
3.7 kW

Frequency :
60 Hz
Voltage :
230/460 V

Current :
12.4/6.2 A
Speed :
3490 RPM

Service Factor :
1.15
Phase :
3

Efficiency :
85.5 %
Duty :
Continuous

Insulation Class :
F
Design Code :
A

KVA Code :
L
Frame :
56J

Enclosure :
Drip Proof
Overload Protector :
No

Ambient Temperature :
40 °C
Drive End Bearing Size :
6205

Opp Drive End Bearing Size :
6203
UL :
Recognized

CSA :
Y
CE :
N

IP Code :
22






Technical Specifications





Technical Specifications

























































Electrical Type :
Squirrel Cage Induction Run
Starting Method :
Across The Line

Poles :
2
Rotation :
Reversible

Mounting :
Round
Motor Orientation :
HORIZONTAL

Drive End Bearing :
BALL
Opp Drive End Bearing :
BALL

Frame Material :
Rolled Steel
Shaft Type :
J

Overall Length :
13.68 in
Frame Length :
8.50 in

Shaft Diameter :
0.625 in
Shaft Extension :
2.44 in

Assembly/Box Mounting :
F1 ONLY
UPC :
691720346570

Weight :
52.00 LB






Speed & Load Characteristics





Speed Characteristics































































Curvepoint Current (Amps) Current (%) Torque (ft-lbs) Torque (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)

Pull-Up
0.00 0.0 23.00 307.0 400 0.00 0.0 5.00

Full Load
6.20 0.0 7.50 100.0 3,488 0.00 0.0 5.00

Locked-Rotor
59.00 0.0 25.00 333.0 0 0.00 0.0 5.00

Break-Down
0.00 0.0 31.00 413.0 2,400 0.00 0.0 5.00





Load Characteristics






  • % of Rated Load

  • Current (Amps)

  • Rated Output (KW)

  • Efficiency (%)

  • Power Factor (%)

  • Speed (RPM)

  • Temp. Rise @ FL

  • Torque (ft-lb)





  • 0 %

  • 3.20

  • 0.143

  • 0.0

  • 5.6

  • 3,598

  • 0.0

  • 0.00





  • 25 %

  • 3.29

  • 1.782

  • 93.6

  • 68.0

  • 3,557

  • 0.0

  • 3.30





  • 50 %

  • 3.50

  • 1.995

  • 93.6

  • 71.5

  • 3,551

  • 0.0

  • 3.70





  • 75 %

  • 4.65

  • 3.023

  • 92.7

  • 81.6

  • 3,522

  • 0.0

  • 3.40





  • 100 %

  • 6.00

  • 4.150

  • 89.9

  • 86.8

  • 3,488

  • 60.0

  • 7.50





  • 125 %

  • 7.46

  • 5.300

  • 88.0

  • 89.2

  • 3,454

  • 0.0

  • 9.50





  • 150 %

  • 9.09

  • 6.540

  • 85.6

  • 90.3

  • 3,417

  • 0.0

  • 11.53
