| Drives Type | L510 MICRO DRIVE |
| Amps | 10.5 |
| HP | 3 |
| Phase | 3 |
| Voltage | 230 |
| Enclosure | CHASSIS |
| Height | 5.67 |
| Width | 4.65 |
| Depth | 5.8 |
| Approx. Weight | 4.000 LB |
| List Price | $400.00 |

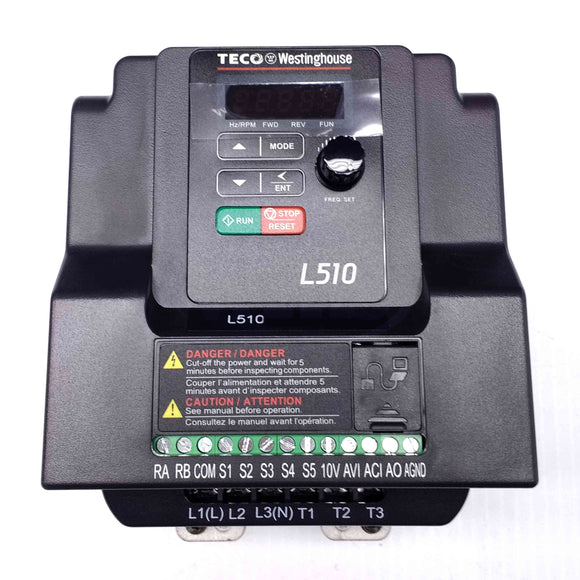

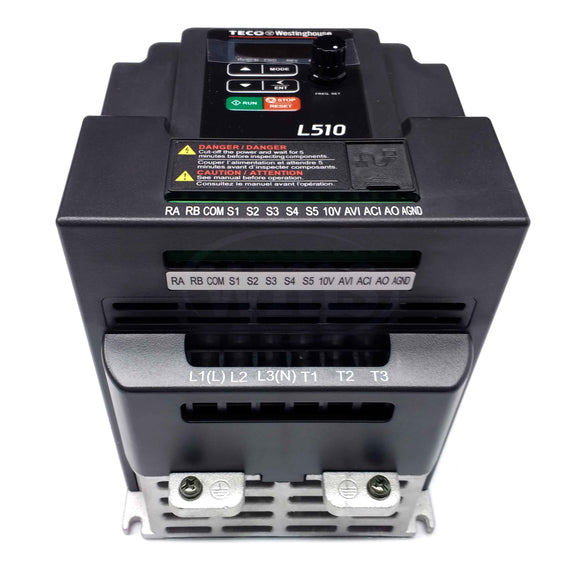

L510 MICRO DRIVE MEDIUM DUTY
A compact, low cost, and versatile AC Drive that is easy to program and ideal for OEM's.
APPLICATIONS:
• Mixing
• Treadmills
• Lathes
• Fans
• AC Contactor Replacement
• Milling
• Small Conveyors
• Pumps
FEATURES:
• Chassis Style Enclosure (IP20)
• Sensorless Vector or V/ Hz with Auto Torque Boost Feature
• 0.25 to 1 HP, 115V, 50/ 60Hz,1-Phase
• 0.25 to 3 HP, 230V, 50/ 60Hz,1-Phase
• 0.5 to 3 HP, 230V, 50/ 60Hz,3-Phase
• 1 to 3 HP, 460V, 50/ 60Hz, 3-Phase
• Extensive Diagnostic and Monitoring Capabilities
• Din Rail Option
• PID Control
• 8 Preset speeds
• Two Multi-Function Analog Input/ Qty 1 Analog Output
• Built-in Modbus or BACnet Protocol Via RJ 45 Interface
• UL, cUL, and CE Approved
Links
Teco-Westinghouse L510 Brochure
Teco-Westinghouse L510 Instruction Manual
Teco-Westinghouse L510 Quick Start Guide
Teco-Westinghouse L510 Quick Startup Manual
