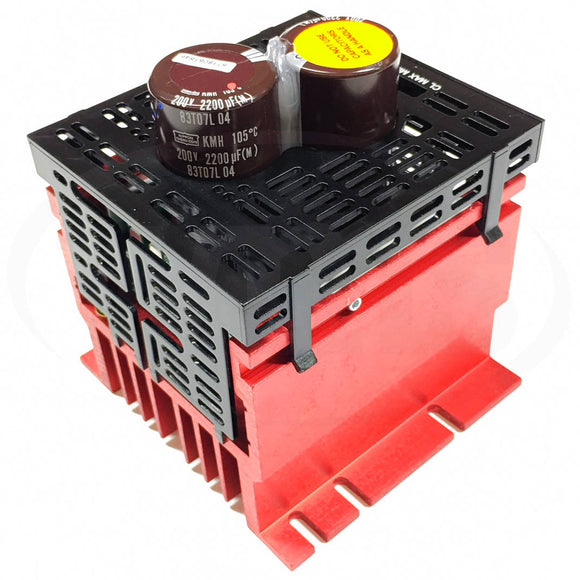

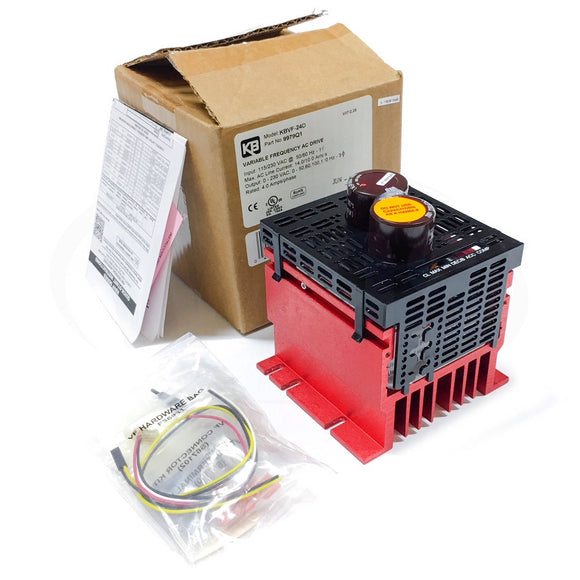

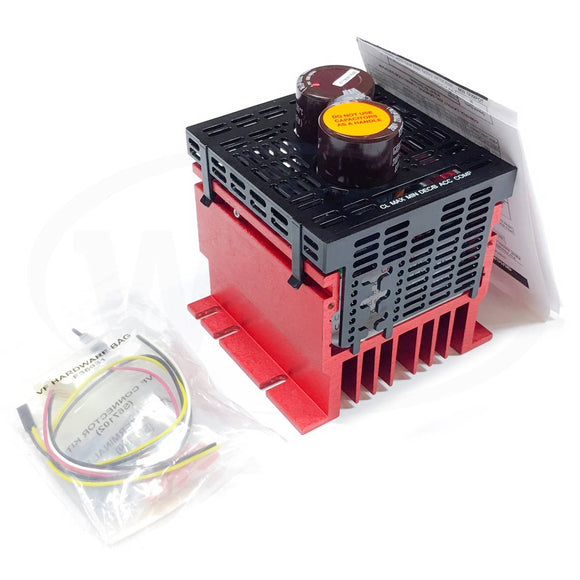

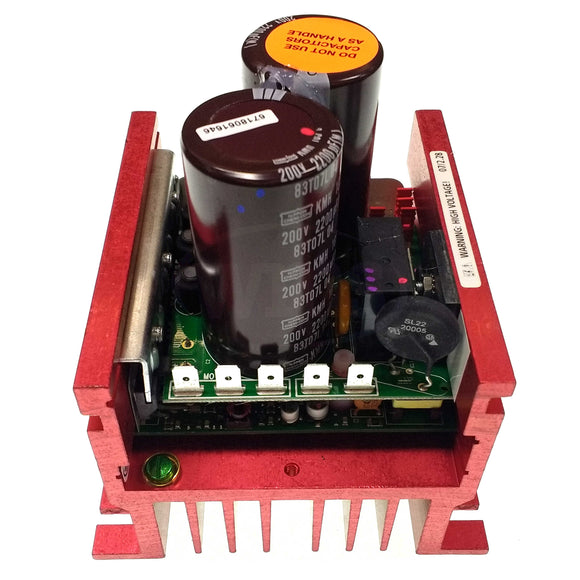

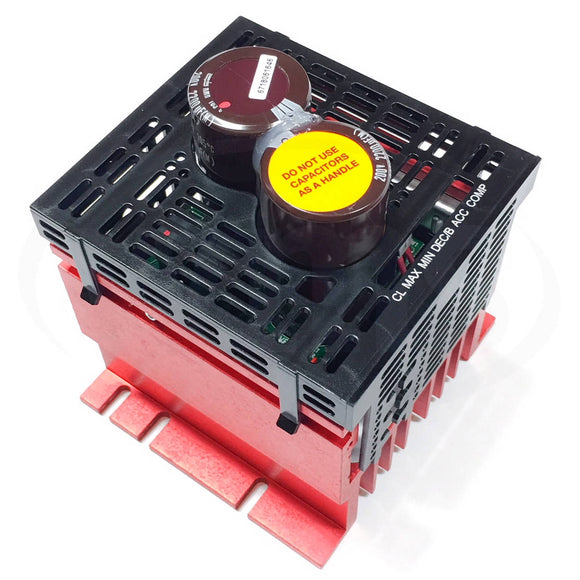

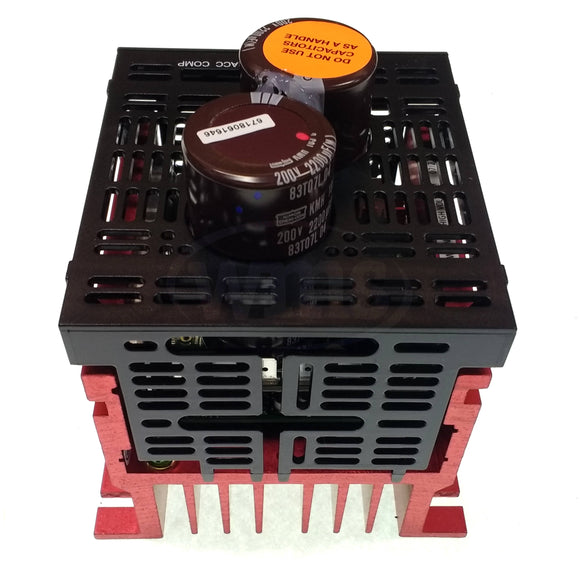

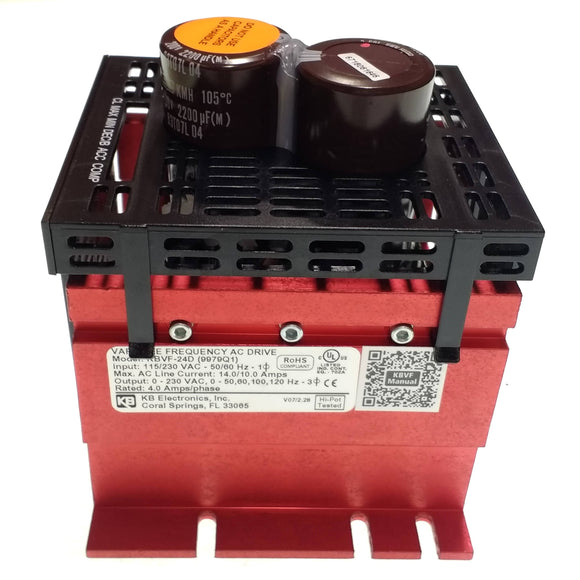

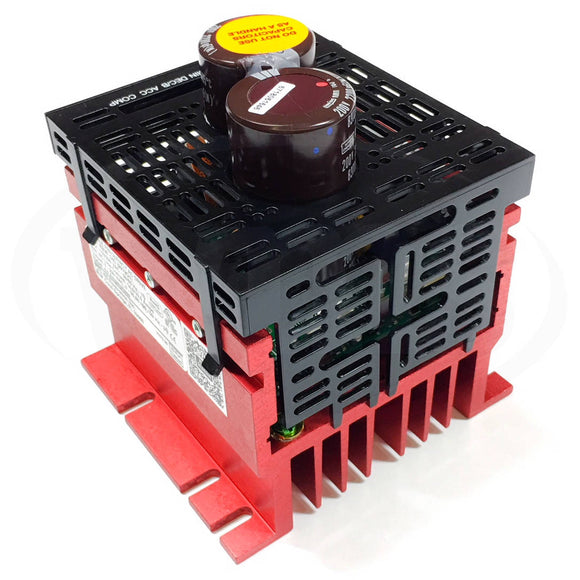

KB Electronics 9979 KBVF-24D Hybrid AC Drive

KBVF-24D Hybrid AC Drive, A Digital Drive with Analog Interface
IP 20 Enclosure

Primary Features:
• 1 Horsepower
• 1Ø Input 115/230 VAC, 50/60 Hz
• Max AC Line Current: 14.0/10.0 Amps
• 3Ø Output 0-230 VAC, 0-50, 60, 100, 120 Hz
• Rated: 4.0 Amps/Phase
• 200% Starting Torque
• Power and Status Indicators

Additional Features:
• Sensorless Flux Vector Control
• Flux Vector Compensation with Static Auto-Tune provides excellent speed regulation
• Electronic Inrush Current Limit (EICL™) Protection
• Eliminates harmful inrush AC line current during power up.
• Ride-Through
• Holding Torque at Zero Speed
• Regeneration Protection
• Undervoltage and Overvoltage Protection
• Short Circuit Protection
• Basic, Programmable, Trimpot Adjustments

Drive Options:
• Drive-Link™ Programming Kit
• SIVFR Signal Isolator and Run Fault Relay*
• DIVF Modbus Serial Communication Module
• Class “A” or “B” (CE) RFI Filter
• DBVF Dynamic Brake Module
• Multi-Speed Board
• KBRK Remote Digital Keypad
• IOVF Input/Output Multi-Function Module

Dimensions approx. 4.3" x 4.7" X 5.0"
Agency approvals: UL, CE, CSA, C-Tick, RoHS available
