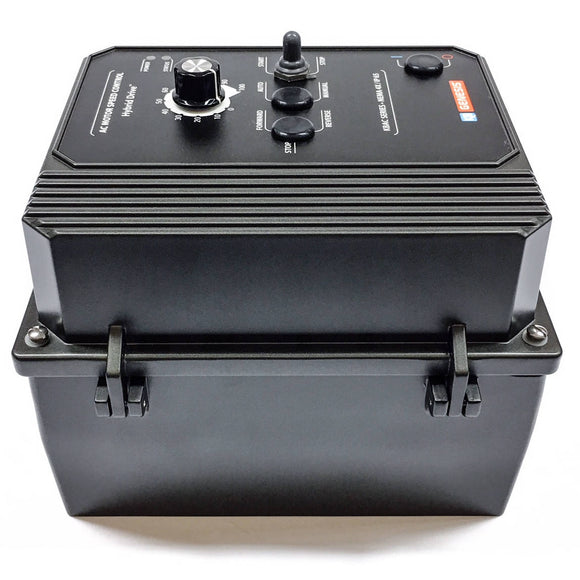

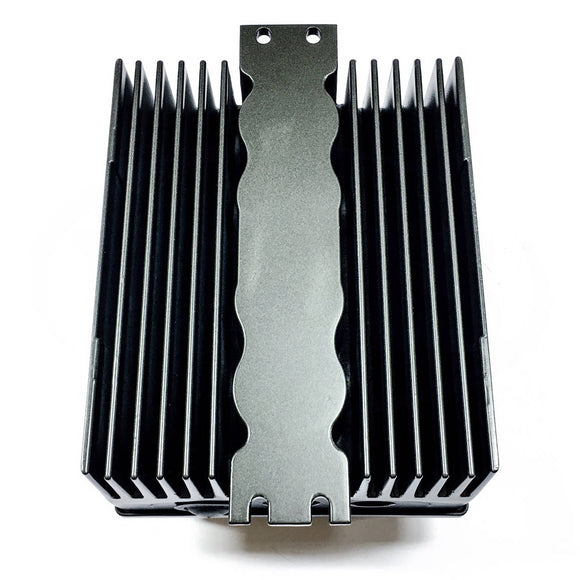

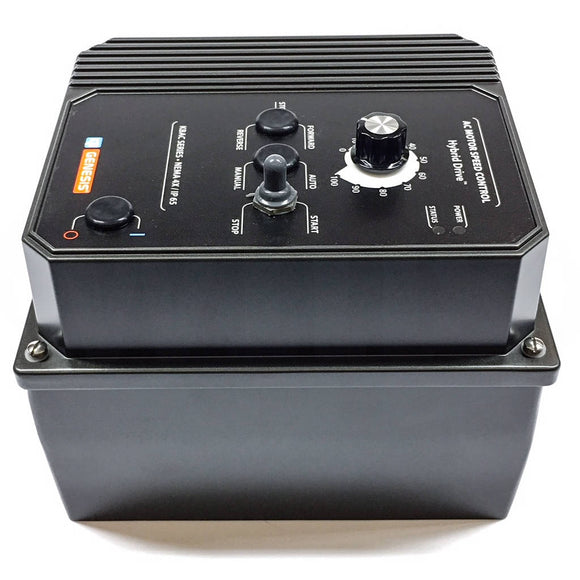

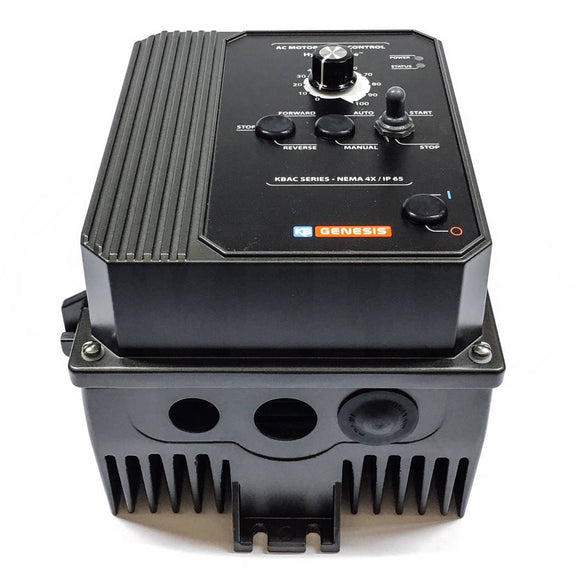

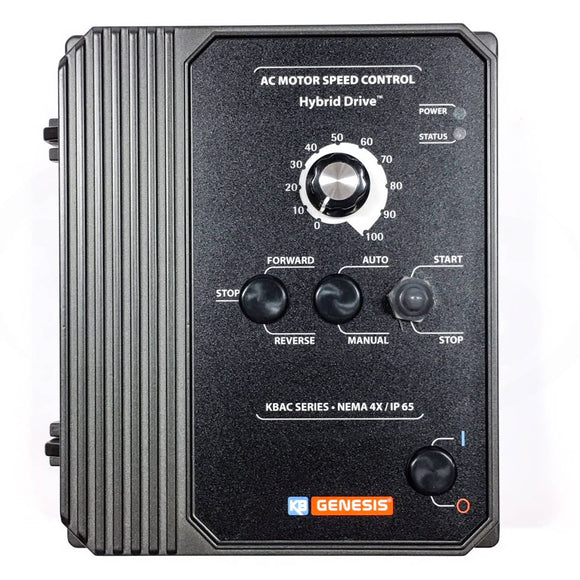

Ratings
| Manufacturer | KB Electronics Nidec |
|---|---|
| Part Number | 9540 |
| Model Number | KBAC-48 |
| Input Power | 460 VAC 3 Phase 50/60 Hz |
| Output Power | 460 VAC 3 Phase |
| Color | Gray |
| Ratings | 5 HP 3.75 kW 8.3 Amps |
| Net Weight | 10.3 lbs 4.7 kg |
| Case | B |
| Warranty | 18 Month Limited Warranty |
Specifications
| Maximum Load | 150% (2 Minutes) |
|---|---|
| Carrier (Switching) Frequency | 8 or 16 kHz |
| Output Frequency Resolution | 0.06 Hz |
| Mininum Output Frequency to Motor | 0.3 Hz |
| Acceleration Time | 0.3 to 20 Seconds |
| Deceleration Time | 0.3 to 20 Seconds |
| Speed Range | 60:1 |
| Speed Regulation (30:1 Speed Range 0 to Full Load) |
2.5 % of Base Speed |
| Stalled Motor Trip Time | 6 Seconds |
| Braking | DC Injection |
| Operating Temperature Range | 0 to 40°C 32 to 104°F |
| Storage Temperature | -25 to +85°C -13 to +185°F |
Features
- Sensorless Flux Vector Control: Flux Vector Compensation with Static Auto-Tune provides excellent speed regulation with high torque loads throughout the entire speed range. Auto energy saving at light loads. Smooth motor torque.
- Electronic Inrush Current Limit (EICL™) Protection: Eliminates harmful inrush AC line current during power up.
- Run/Fault Relay: Can be used to turn equipment on or off, to signal a warning if the drive is put into “Stop” mode, or to signal if a fault has occurred.
- Start/Stop Switch: Provides electronic “Start” and “Stop” functions.
- Ride-Through: Provides smooth recovery to the previous set speed during a momentary power loss.
- Holding Torque at Zero Speed: Resists motor shaft rotation when the drive is in “Stop” mode.
-
Regeneration Protection: Eliminates tripping due to high bus voltage caused by rapid deceleration of high
inertial loads. - Undervoltage and Overvoltage Protection: uts down the drive if the AC line input voltage goes above or below the operating range.
- Short Circuit Protection: Shuts down the drive if a short circuit occurs at the motor (phase-to-phase).
-
Trimpot Adjustments: Min. Speed
Max. Speed
Acceleration
Deceleration
DC Injection Brake
Current Limit
Boost
Jog
Slip Compensation -
Jumper Selections: AC Line Input Voltage
Horsepower
Auto Ride-Through
50Hz/60Hz Motor Frequency
1X/2X Motor RPM
Boost Mode
Brake Mode
Run/Fault Output Relay
NO/NC Stop Contact
Constant/Variable Torque Mode
Constant/Variable Torque I2t.
Drive Options
- On/Off AC Line Switch: Disconnects the AC line.
- Forward-Stop-Reverse Switch: Provides motor reversing and stop functions.
- Run-Stop-Jog Switch: Selects speed setting from either the Main Speed Potentiometer or the JOG Trimpot.
- Signal Isolator: Provides isolation between a non-isolated signal source and the drive.
- Auto/Manual Switch: When used with the Signal Isolator, it selects the remote process signal or the Main Speed Potentiometer.
- Class “A” (CE) RFI Filter: Installs inside the drive.
- Liquidtight Fittings: Provides a liquid-tight seal for wiring the drive. Kit includes necessary liquidtight fittings.
Applications
- Actuators
- Air Cleaners
- Amusement Rides
- Ball Pitching Machines
- Blowers
- Boat Lifts
- Bowling Alley Lane Cleaners
- CNC
- Conveyors
- Door and Gate Openers
- Drilling
- Duct Cleaners
- Dumbwaiters
- Elevators and Hoists
- Exercise Equipment
- Fabric Processing
- Fans
- Feeders
- Film Processing
- Floor Cleaning
- Food Processing
- Garment Cutting
- Grinding and Polishing
- Hoppers
- Horse Walkers
- HVAC
- Indexers
- Irrigation
- Laminating
- Lift Station Pumps
- Machine Tools
- Medical
- Milling
- Mixers
- Oven Conveyors
- Packaging
- Paint Blenders, Shakers, and Sprayers
- Paper Handling
- Portable Equipment Used with GFCIs
- Pottery Wheels
- Printing
- Pumps
- Range Hoods
- Sandblasting
- Saws
- Sewing
- Stretch Wrap
- Textile
- Treadmills
- Therapeutic Vibrators
- Washing Machines
- Wave Soldering
- Web Processing
- Wheelchair Lifts
- Whole House Vacuums and Attic Fans
- Wire Feeders
- Wood and Metal Lathes and Cutters
- Winders and Unwinders
