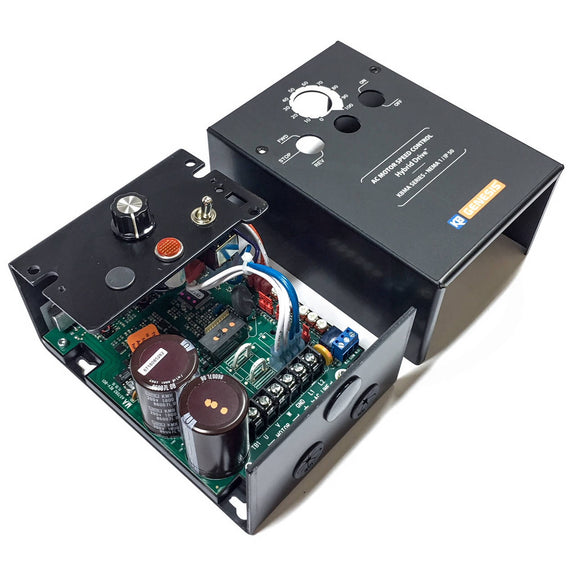

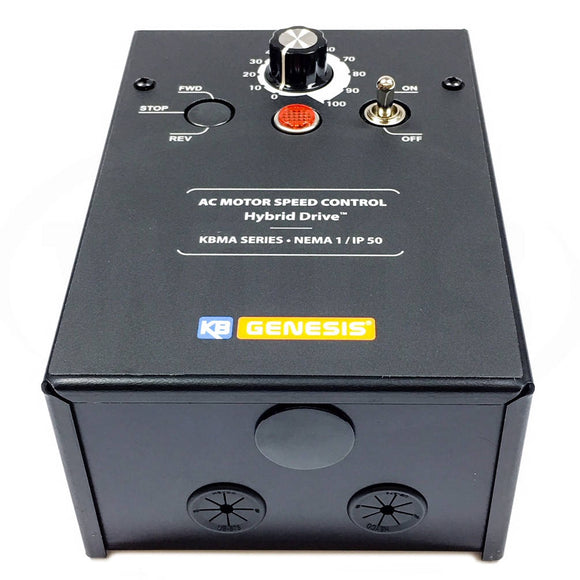

KB Electronics 9533 Adjustable Frequency Drive, KBMA-24

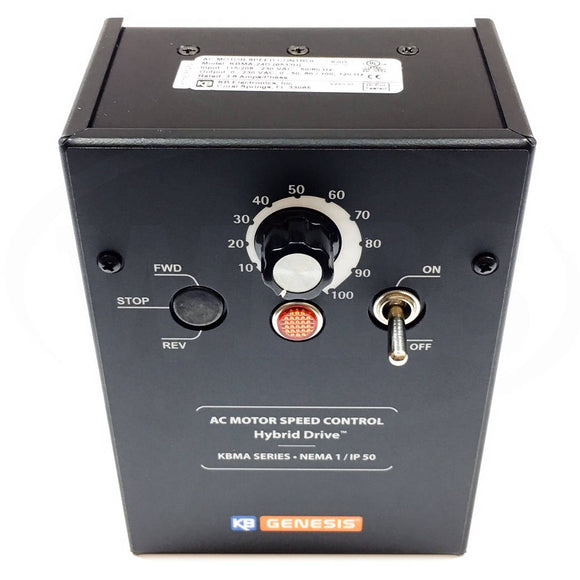

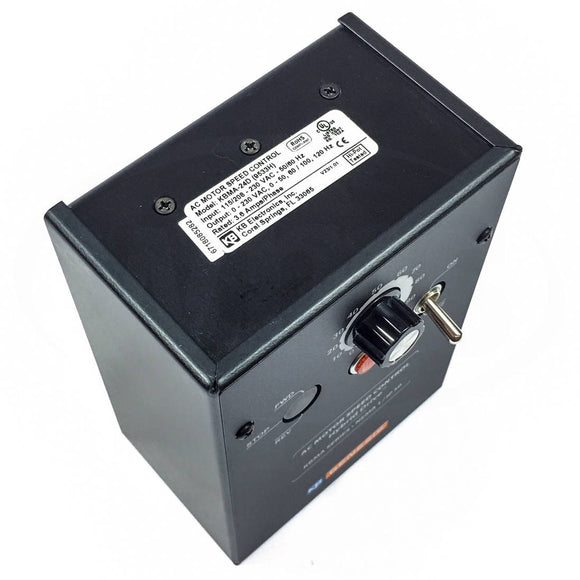

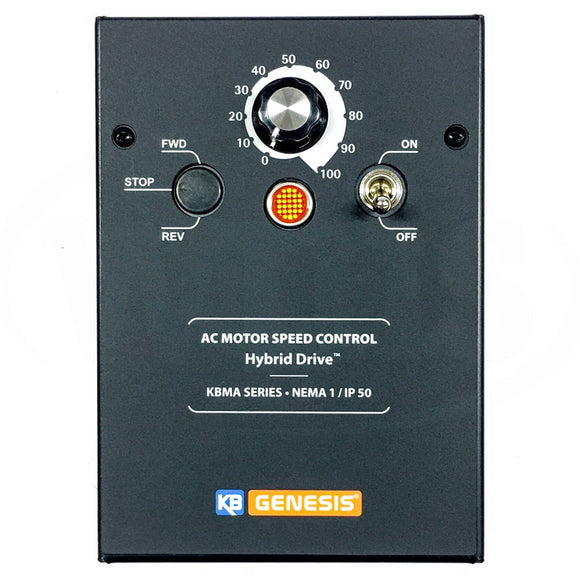

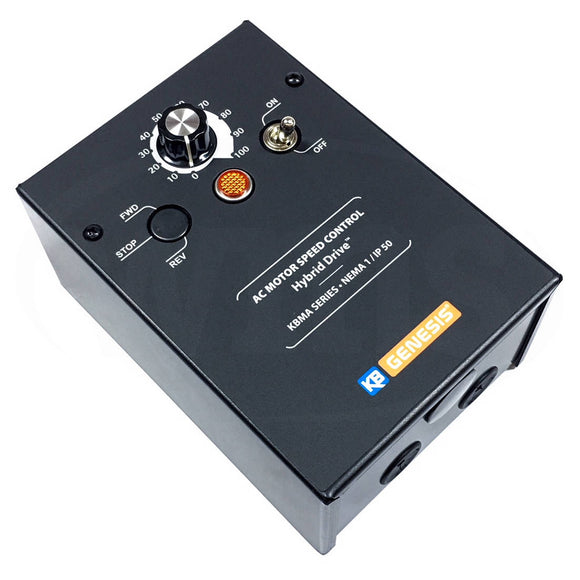

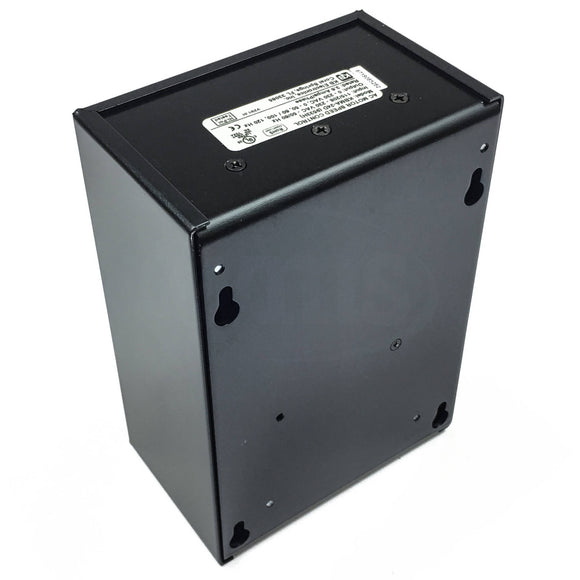

KBMA-24D Hybrid AC Drive, A Digital Drive with Analog Interface Rugged Aluminum NEMA-1 / IP-50 Enclosure Primary Features: Horsepower (Kw) 1/8 (.09) to 1.0 (.75), Jumper Selectable 1Ø Input 115/230 VAC, 50/60 Hz 3Ø Output 230 VAC On/Off AC Line Switch, 200% Starting Torque Diagnostic LED Status Indicators Additional Features: Flux Vector Compensation with Static Auto-Tune provides excellent speed regulation with high torque loads throughout the entire speed range. Auto energy saving at light loads. Smooth motor torque. Electronic Inrush Current Limit (EICLTM) Protection Run/Fault Relay Output Contacts Holding Torque at Zero Speed in "Stop" mode Undervoltage and Overvoltage Protection Short Circuit Protection, phase to phase Ride-Through momentary power loss Regeneration Protection eliminates tripping Basic Programmable Trimpot Adjustments Dimensions approx. in (cm). 7.00" (17.8) x 4.95" (12.7) x 4.15" (10.7). Agency approvals: UL, CE, CSA, C-Tick.
