| range of product |
Harmony XB4 |
|
|---|---|---|
| product or component type |

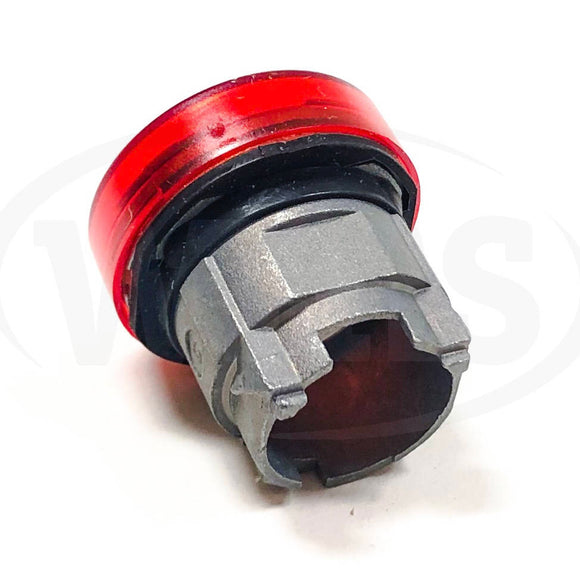

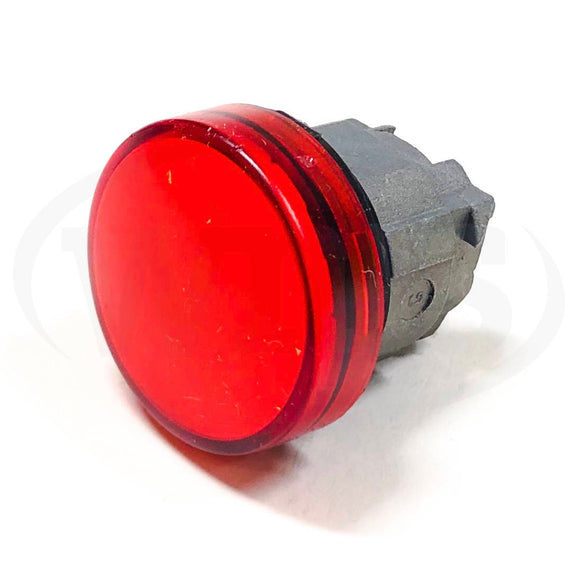

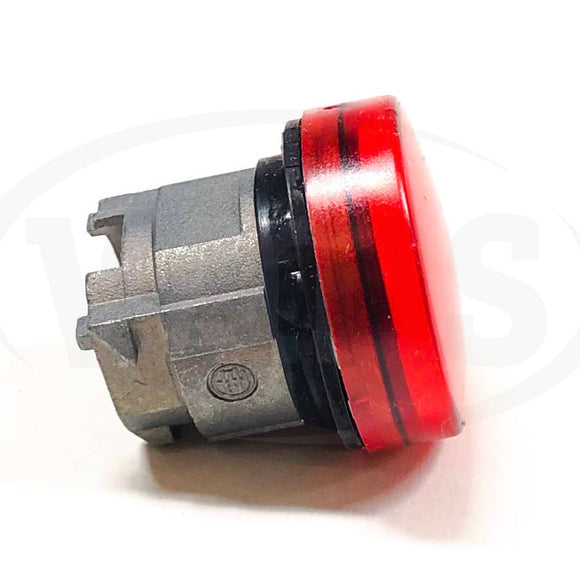

Head for pilot light |
|
| product compatibility |
Integral LED |
|
| device short name |
ZB4 |
|
| bezel material |
Chromium plated metal |
|
| mounting diameter |
0.87 in (22 mm) |
|
| sale per indivisible qty |
1 |
|
| head type |
Standard |
|
| shape of signaling unit head |
Round |
|
| cap/operator or lens colour |
Red |
|
| operator additional information |
With plain lens |
|
| CAD overall width |
1.14 in (29 mm) |
|
|---|---|---|
| CAD overall height |
1.14 in (29 mm) |
|
| CAD overall depth |
1.18 in (30 mm) |
|
| product weight |
0.06 lb(US) (0.026 kg) |
|
| resistance to high pressure washer |
1015.26 psi (7000000 Pa) at 131 °F (55 °C),distance: 0.1 m |
|
| electrical composition code |
P1 in front mounting with integral LED P2 in front mounting with integral LED and transformer |
|
| protective treatment |
TH |
|
|---|---|---|
| ambient air temperature for storage |
-40...158 °F (-40...70 °C) |
|
| ambient air temperature for operation |
-40...158 °F (-40...70 °C) |
|
| overvoltage category |
Class I conforming to IEC 60536 |
|
| IP degree of protection |
IP69 IP67 IP66 conforming to IEC 60529 IP69K |
|
| NEMA degree of protection |
NEMA 13 NEMA 4X |
|
| IK degree of protection |
IK06 conforming to IEC 50102 |
|
| standards |
EN/IEC 60947-1 EN/IEC 60947-5-1 EN/IEC 60947-5-4 EN/IEC 60947-5-5 JIS C 4520 UL 508 CSA C22.2 No 14 |
|
| vibration resistance |
5 gn (f = 2...500 Hz) conforming to IEC 60068-2-6 |
|
| shock resistance |
30 gn (duration = 18 ms) half sine wave acceleration conforming to IEC 60068-2-27 50 gn (duration = 11 ms) half sine wave acceleration conforming to IEC 60068-2-27 |
|
| Category |
22468 - PUSHBUTTONS,22MM(METAL) NEW |
|
|---|---|---|
| Discount Schedule |
CS2 |
|
| GTIN |
00785901354154 |
|
| Nbr. of units in pkg. |
1 |
|
| Package weight(Lbs) |
5.9999999999999998E-2 |
|
| Returnability |
Y |
|
| Country of origin |
France |
|
