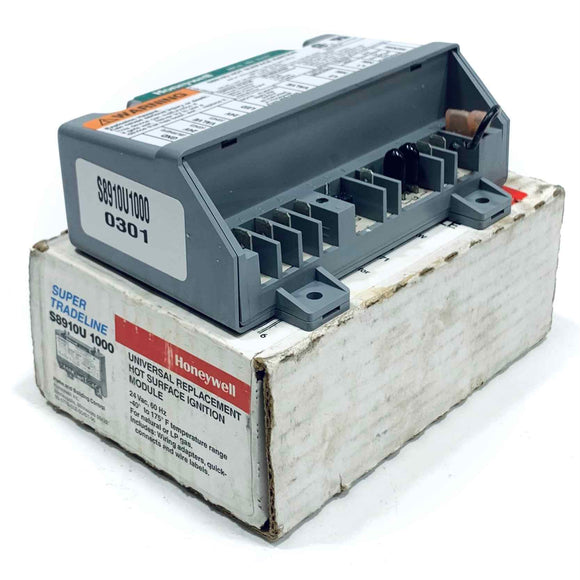

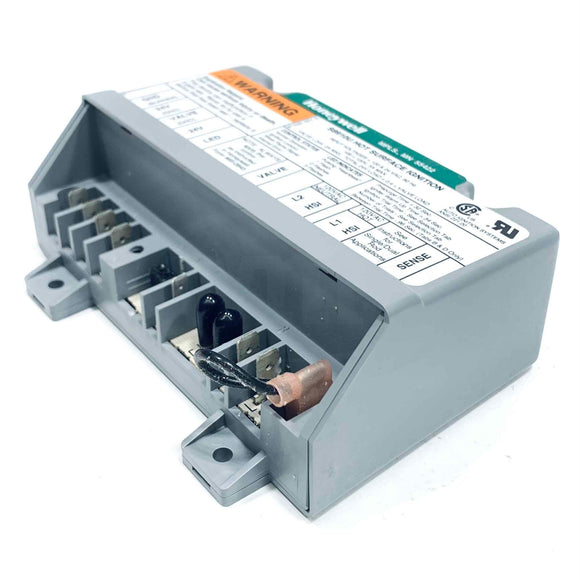

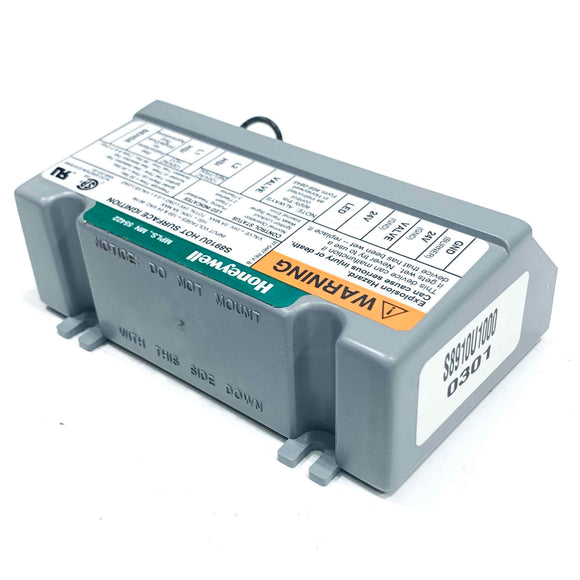

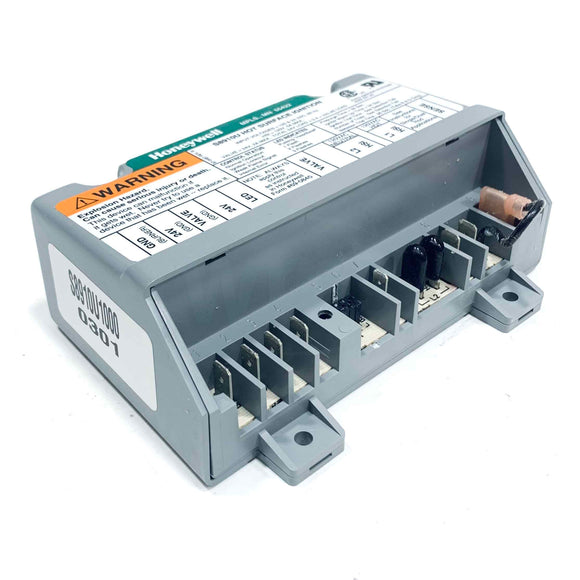

S8910U1000 Honeywell Super Tradeline Hot Surface Ignition Module, 24 Vac, 60Hz

Overview:
Universal hot surface ignition module replaces multiple field installed hot surface ignition modules supplied by Honeywell, White-Rodgers, Robertshaw and Johnson. Uses a 120 VAC igniter. Includes cross reference, instructions, and accessories for easy replacement.

Features:
Replaces over 800 White-Rodgers, Robertshaw and Honeywell hot surface ignition models.
For 120 Vac (up to 5.0A) surface igniter (Norton 201/271 or equivalent).
S8910U 3000 Series has LED status indicator and microammeter ports for easy trouble shooting
For local (single rod) or remote (dual rod) rectification type flame sensing.
Contains easy-to-use cross reference and instructions plus the accessories required to replace the existing hot surface ignition module.
Provides one or three ignition trials (four-second or seven-second trials) per call for heat.
Field selectable number of ignition trials and trial time based on unit being replaced.
Igniter warm up time: 7 (12 seconds second and third trial), 17 (27 seconds second and third trial), 34, or 45 seconds
