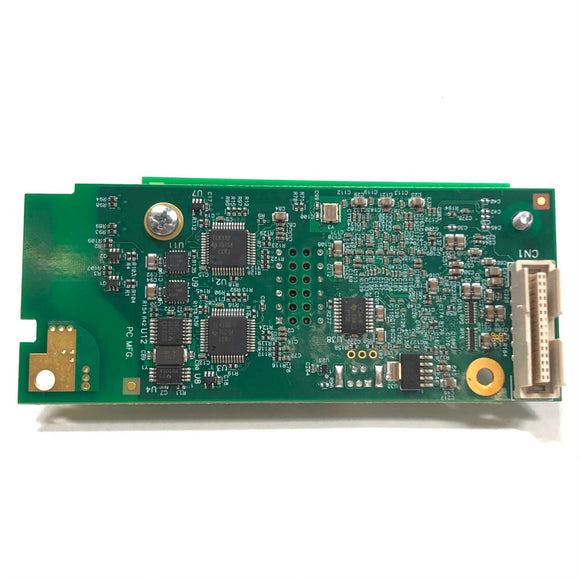

OPC-PRT2 Fuji ProfiNet Communication Card

$490.00 USD

Shipping calculated at checkout

Fuji Electric Corp. of America SKU: OPC-PRT2

30 Day
Return Policy

Ships Fast
in 24 hours

































































The OPC-PRT2 multiprotocol communication interface provides Ethernet-based network connectivity to Fuji FRENIC-MEGA and FRENIC-HVAC adjustable speed drives.


The OPC-PRT2 currently provides support for the following Ethernet networks:

Modbus/TCP

BACnet/IP

EtherNet/IP (DLR)

Allen Bradley CSP (also known as "PCCC" and "AB Ethernet")

PROFINET IO (MRP)

Documents




















Brochure

Brochure (PDF, 1 Page, 300KB)
Manual

User's Manual (October 28, 2019, PDF, 115 Pages, 14MB)

Function Code Register List - Available in the Fuji Configuration Studio

RS-485 User's Manual 24A7-E-0082 - Applicable for the OPC-PRT2 (PDF, 171 Pages, 1.83MB)
Version Information

Version Info (December 3, 2019, PDF, 4 Pages, 96KB)
Network Documents

EtherNet/IP EDS (V1.1, ZIP, 8KB)

PROFINET GSDML (September 13, 2016, ZIP, 13KB)

XTPro Specification (PDF, 21 Pages, 320KB)
Web Server

Default Web Server, Version 7 (ZIP, 260KB)

XTPro Example (ZIP, 610KB)
Sample Application Programs

RSLogix 5000 Examples (ZIP, 1.59MB)

RSLogix 5000 Add-On Instructions (ZIP, 516KB)

RSLogix 500 Examples (ZIP, 53KB)

Software






Fuji Configuration Studio

Firmware






The latest firmware is included in the latest Fuji Configuration Studio

Features
























Network

MRP (Media Redundancy Protocol) and DLR (Device Level Ring) allows for fast recovery and high availability.

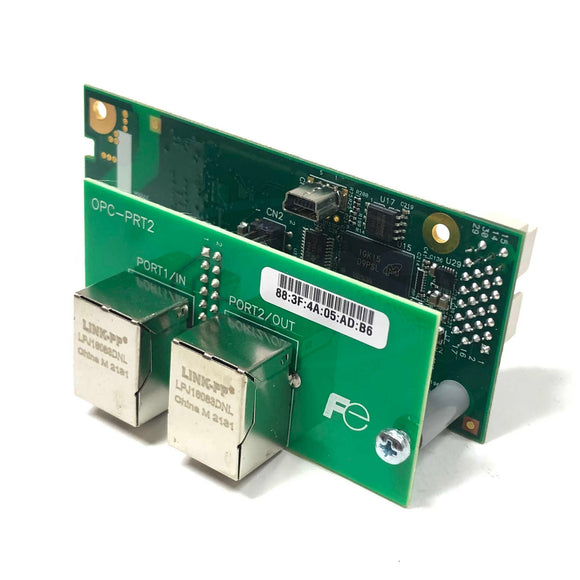

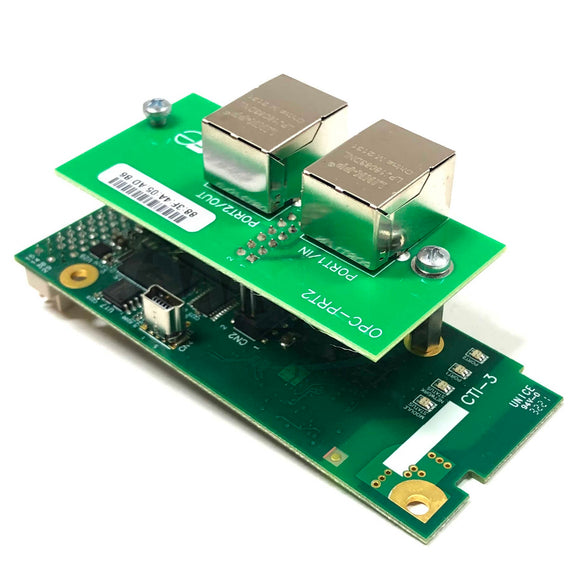

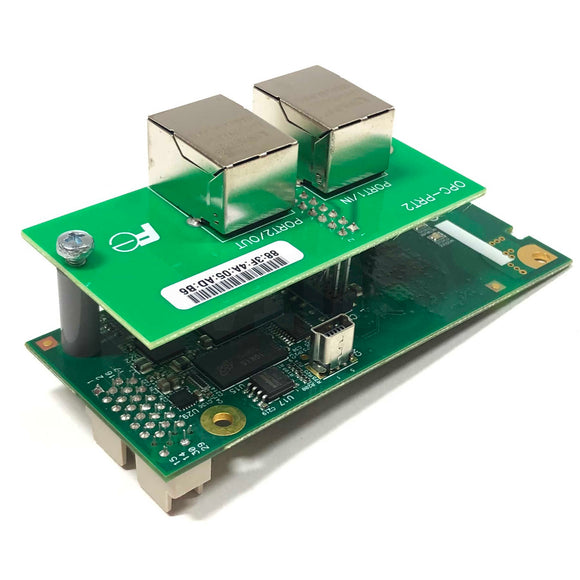

Dual RJ-45 ports with embedded IEEE 802.3 10BASE-T/100BASE-TX Ethernet switch supports star, daisy-chain, and redundant ring topologies. Shielded RJ-45 connectors accept standard CAT5-type 8-conductor unshielded twisted-pair (UTP) patch cables.

MDI/MDI-X auto-crossover allows the use of any combination of straight-through and cross-over Ethernet cables.

Supports multiple protocols simultaneously.

Graphical User Interface

The Configuration Studio software reduces the user's learning curve.

Easily discover, configure, and update units via USB and Ethernet.


USB

USB 2.0 port with mini-B connector provides composite USB device functionality. USB connection allows for product identification, configuration, and firmware updating.

Enumerates as a standard USB mass storage device ("flash drive") for configuration and web page customization.

FTP

Remote configuration, web server content, and firmware updating.

Remote access to the unit's file system.
Field-Upgradeable

As new firmware becomes available, the unit can be upgraded in the field by the end-user.


















Custom Embedded Web Server

Open XML-based socket data transfer allows end users to create their own custom web server content and load it onto the unit's internal file system.

The factory-default web server provides real-time inverter function code monitoring/control via standard web browsers such as Microsoft Internet Explorer and Mozilla Firefox.
Dashboard

A variety of gauges, meters, and graphs can be configured to provide an at-a-glance graphical overview of critical application variables in real-time. A total of ten gauge windows are available (two at a time) and each gauge window can be configured to display one of six different gauge types.

A virtual keypad interface provides quick access to control and monitor information.
Network Timeout Action

A configurable network timeout action can be programmed that allows function codes to have their own unique "fail-safe" conditions in the event of a network interruption.
Indicators

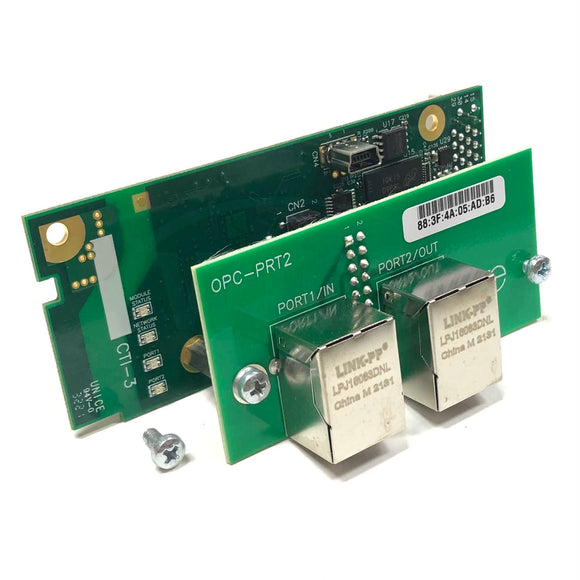

1 bicolor red/green module status LED.

1 bicolor red/green network status LED.

2 bicolor red/green Ethernet LEDs.
ROHS Compliant

The OPC-PRT2 is lead-free.
