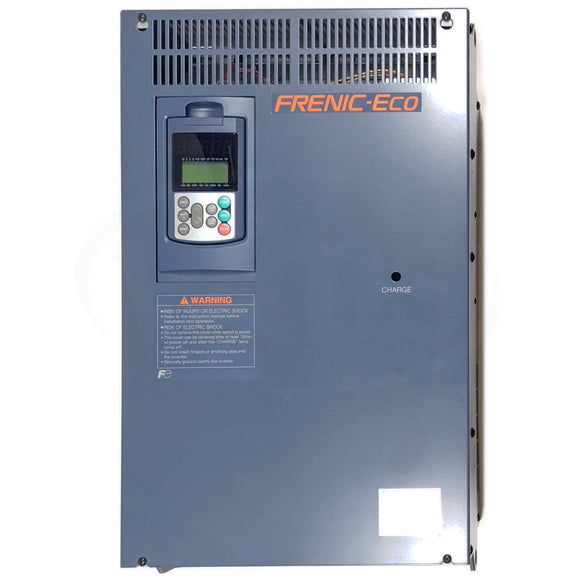

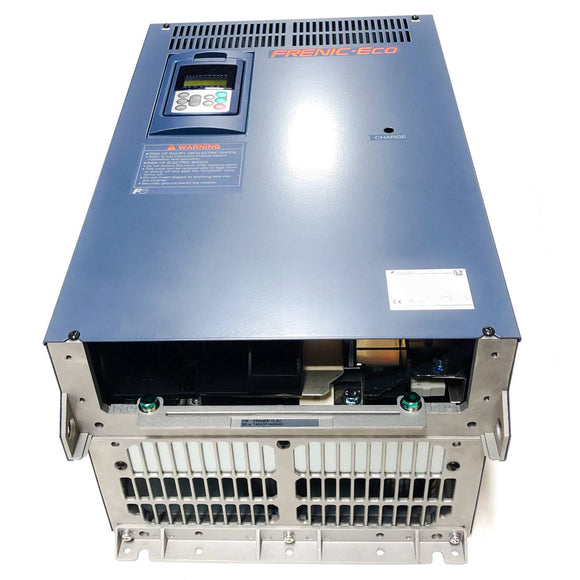

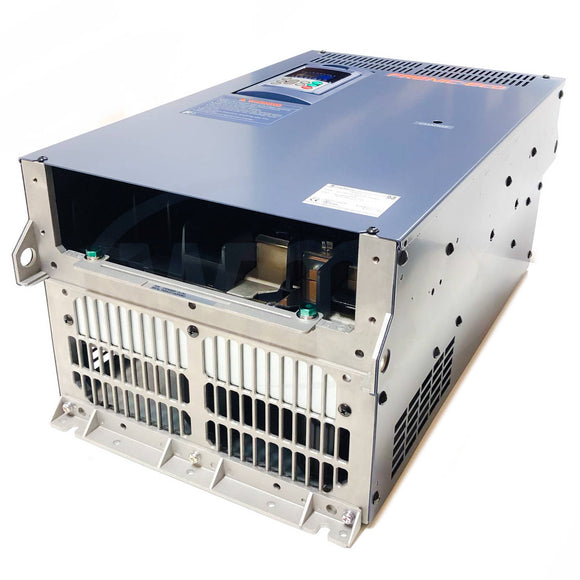

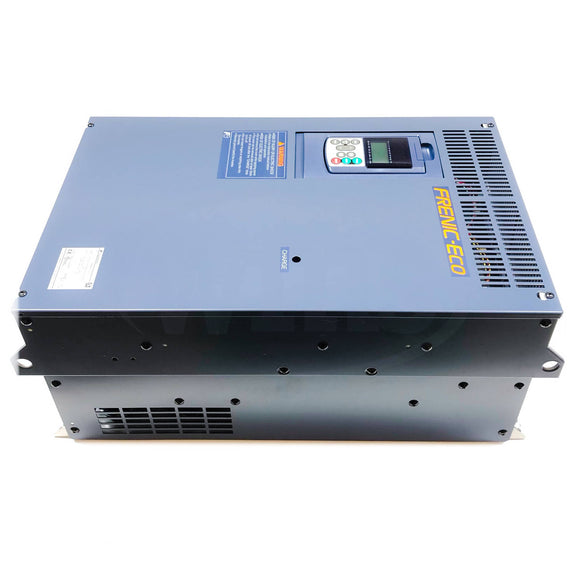

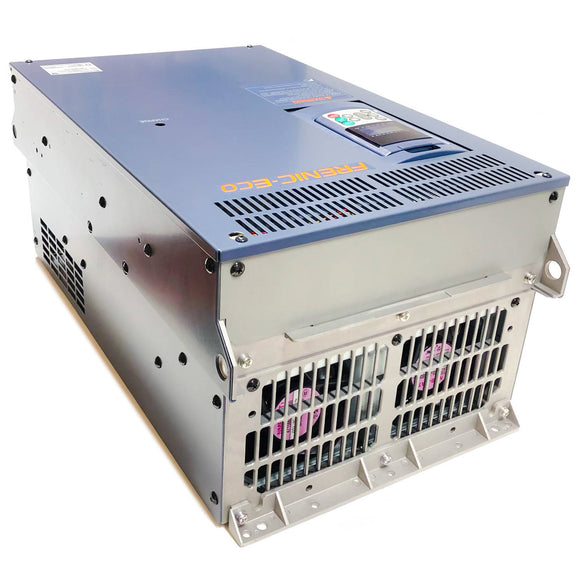

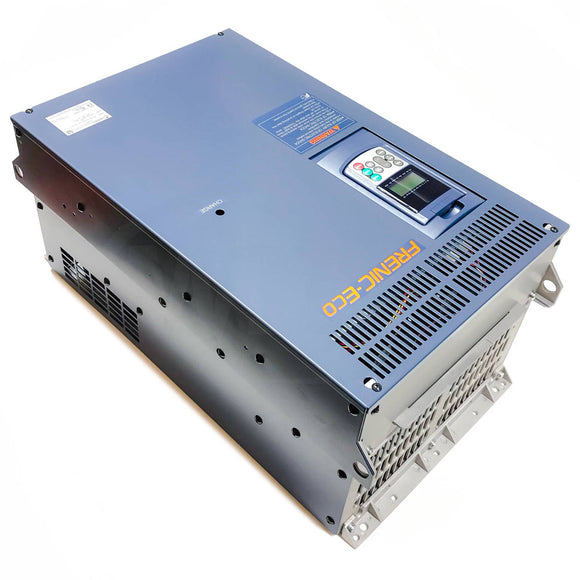

FRN700F1S-4U 700 HP Fuji FRENIC-Eco Inverter/VFD 460V

$42,105.60 USD

Shipping calculated at checkout

Fuji Electric Corp. of America SKU: FRN700F1S-4U

30 Day
Return Policy

Ships Fast
in 24 hours

3 Phase Input (460V 3-Phase Output)
Rated 200 HP with 1 Phase Input





Description



Fuji Electric’s FRENIC-Eco series is environmentally friendly by helping to significantly reduce energy use. These drives feature a small footprint for tight installations, network compatibility, and long-term reliability for three-phase applications ranging from 1 HP up to 900 HP. These high performance AC drives / variable frequency drives (VFD) / v/ Hz vector drives are optimized for HVAC applications, such as chillers, air handlers, and fan coils.



General Specifications













































Brand Fuji Electric Corp of America
Model FRN700F1S-4U
Series FRENIC-ECO
Nominal Motor HP 700 HP
Input Voltage 3 Phase
380-480VAC
50/60Hz
Output Capacity 840 Amps
669 kVA
Overload Capability 120% of rated current for 1 minute
Enclosure IP00, UL Open Type
Mass 783 lbs
355 kg
Ambient Temperature UL Open Type: +14 to +122°F (-10 to +50°C)



Inputs / Outputs





























Analog Inputs Two 0 to +10VDC
One 4 to 20mA
Digital Inputs Five Programmable Inputs
Analog Outputs One 0 to +10VDC or 4 to 20mA
One 4 to 20mA
Digital Outputs One Form C (1NO/1NC) 0.3Amps @ 230VAC
One Form A (1NO) 0.3Amps @ 230VAC
Transistor Outputs One 50mA @ 27VDC
Power Supply 24VAC 50mA Max
