Description
Fuji Electric’s FRENIC-HVAC Drive has been designed with features and functions specifically targeted to HVAC Motor Control Applications. The result is a low voltage drive that that provides the optimal environmental control to maintain comfortable conditions in commercial spaces and industrial facilities while generating efficiency beyond typical motor starters.
Developed with unyielding standards of quality and flexibility to meet the demands of various applications within HVAC motor control requirements the FRENIC-HVAC Drive is the right choice for a full range of HVAC installations
Fuji Electric’s robust design standards and Ease of Commissioning make the FRENIC-HVAC Drive a Service Provider’s favorite choice for quick and sustainable results.
Specifications
| Manufacturer | Fuji Electric |
|---|---|
| Model Number | FRN250AR1S-5U |
| Enclosure | UL/NEMA Open Type IP00 |
| Voltage | 575VAC 60Hz |
| HP Rating | 100 HP with Single Phase Input 250 HP with 3-Phase Input |
| Rated Current | 102 Amps with Single Phase Input 262 Amps with 3-Phase Input |
| Weight | 216 lbs |
| Dimensions | 20.90" x 39.40" x 14.20" (W x H x D) |
| Warranty | 3 Years from date of shipment |
Detailed Specifications
| Nominal Applied Motor (Rated Output) | 100 HP with Single Phase Input 250 HP with 3-Phase Input |
|---|---|
| Rated Output Capacity | 101 kVA with Single Phase Input 260 kVA with 3-Phase Input |
| Rated Output Current | 102 Amps with Single Phase Input 262 Amps with 3-Phase Input |
| Output Frequency | 120Hz Maximum |
| Output Stability | Analog Setting: ±0.2% of Maximum Frequency Digital Setting: ±0.01% of Maximum Frequency (By Keypad) |
| Rated Voltage | Three Phase, 575 to 600 VAC (with AVR Function) |
| Output Overload Capability | 110% for 1 Minute (Overload capability interval : IEC 61800-2 compliant) |
| Rated Input Frequency | 50, 60 Hz |
| Main Power Supply Input | Three Phase, 575 to 600 VAC, 50/60Hz |
| Rated Input Current | 249 Amps |
| Required Input Power Supply Capacity | 144 kVA with Single Phase Input 248 kVA with 3-Phase Input |
| Auxiliary Control Power Supply | Single Phase, 575 to 600 VAC 50/60Hz |
| Auxiliary Main Power Supply | Single Phase, 575 to 600 VAC 50/60Hz |
| Voltage & Frequency Variations | Voltage: +10 to -15% Interphase Voltage Unbalance: 2% or less Frequency: -5 to +5% |
| Braking Torque | 10 to 15 % |
| DC Injection Braking | Starting frequency:0.0 to 60.0Hz Braking time:0.0 to 30.0s Braking level:0 to 60% |
| EMC Filter | Built-In EMC standards compliance : Category C3 (emission) / 2nd Env. (Immunity) |
| DC Reactor | Standard Accessory (IEC/EN 61000-3-12) |
| Power Factor (at Rated Load) | >0.98 Displacement P.F. (cosf) >=0.90 True Power Factor |
| Efficiency | 98 % at Rated Load |
| Enclosure | IEC/EN 60529: IP00 UL 50: UL Open Type |
| Cooling Method | Fan Cooling |
| Weight/Mass | 98 kg |
| Ambient Temperature | NEMA/UL Open Type: -10 to 50°C (14 to 122°F) |
| Storage Temperature | -25 to 70°C (-13 to 158°F) |
| Relative Humidity | 5 to 95% RH (Without Condensation) |
| Installation Location | IEC60664-1 Pollution Degree 2 (Free from Corrosive Gases, Flammable Gases, Oil Mist, Dust and Direct Sunlight) Indoor Use Only |
| Altitude | 0 to 3,300ft (1,000m) 3,300ft (1,000m) to 9,900ft (3,000m) with Derating |
Features
Control Inputs & Outputs
- 9 Digital Inputs: X1 – X7, FWD, & REV Programmable
67 Selectable Functions - 2 Safety Input (dedicated): EN1, EN2
- 3 Analog Inputs: (2) 0 to +10Vdc & (1) 4 to 20mA
- 6 Digital Outputs: (2) Relays (1 Form C & 1 Form A) & (4) Transistor
77 Selectable Functions - 2 Analog Output: Selectable Type: 0 to 10Vdc or 4 to 20mA
43 Selectable Functions - 2 RS-485 Connections: RJ45 Keypad Port & RS485 Control Terminal Block Connections
- 24Vdc Output Terminal: Rated 200mA
- Keypad with large LCD Display Indicating HVAC System Operation and Associated Unit Conversion Displayed
Robust Design
- Nickel (Ni) & Tin (Sn) Plated Bus Bars
- Conformal Coated PCBs
- Cooling Fan Board Coating + Anti-Rust Protection
- 10 Year Design Life of Cooling Fan and Capacitor with Maintenance Alarm Output Signal
Flexibility & Functionality
- Removable Control Terminal Block
- CE Filter Built-In for All Models
- DCR for All Models
- PC Programming & Troubleshooting Software
- USB Port on Control Card
- Real Time Clock
- Customizable Logic
- Automatic Energy Savings Control
- 4-PID Controllers
- Fire Mode
- Catch a Spinning Motor
- Filter Clogging Prevention/Reversing Operation
- Wet-Bulb Temperature Presumption Control
- Selectable “Light” Alarms
- PID Units of Measurement Display
- Password
- 3 Option Card Ports Built-In
- Single Phase Input
- BACnet MS/TP, Metasys N2, Modbus RTUD Embedded
Safety & Standards
- Safety Input
- UL 508C, CE
- UL Plenum Rating
- RoHS
- SEMI F47-0706
Codes and Standards
- UL508C
- C22.2 No.14,
- EN61800-5-1:2007
Options
- Ethernet
- CC-Link
- LONWORKS
- DeviceNet
- Profibus DP
- CANopen
Communication Options
- Keypad with USB Port
- Relay Output
- Analog Inputs and Outputs
- Temperature Sensor Input
I/O Options

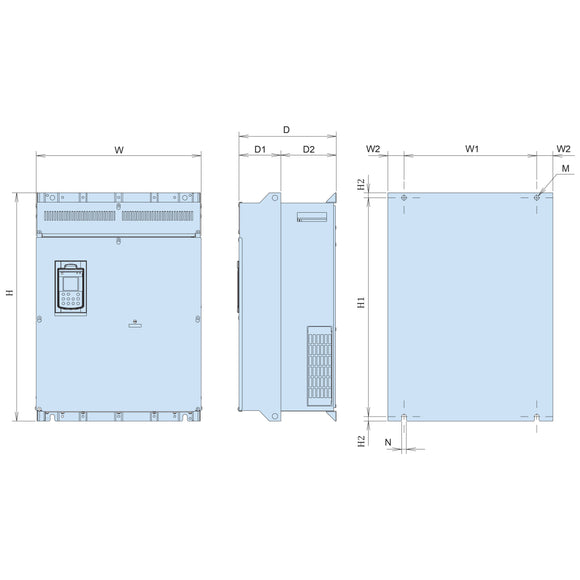

Dimensions
| W | 540 mm 20.87" |
|---|---|
| H | 1000 mm 39.37" |
| D | 360 mm 14.17" |
| D1 | 180 mm 7.09" |
| D2 | 180 mm 7.09" |
| W1 | 430 mm 16.93" |
| W2 | 50 mm 1.97" |
| H1 | 970 mm 38.19" |
| H2 | 15.5 mm 0.61" |
| H3 | 14.5 mm 0.57" |
| M | 2x 15 mm diameter 2x 0.59" diameter |
| N | 15 mm 0.59" |
Links
FRENIC-HVAC Quick Reference Guide
FRENIC-HVAC Datasheet
FRENIC-HVAC Specifications
FRENIC-HVAC General Specifications
FRENIC-HVAC Engineering Specifications
FRENIC-HVAC Instruction Manual
FRENIC-HVAC User's Manual
FRENIC-HVAC Brochure
FRENIC-HVAC Catalog
