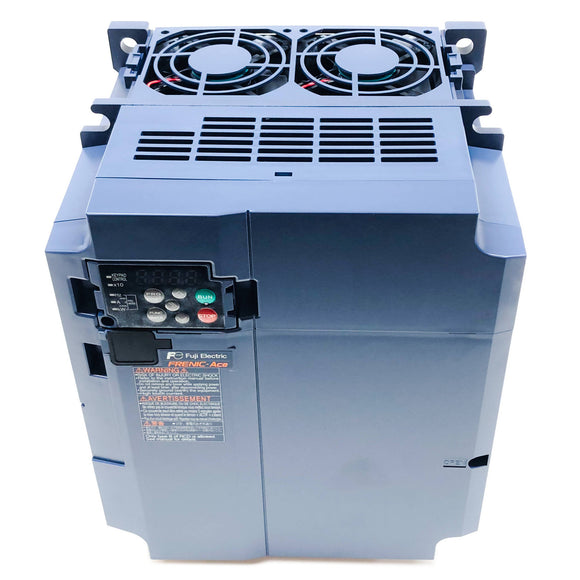

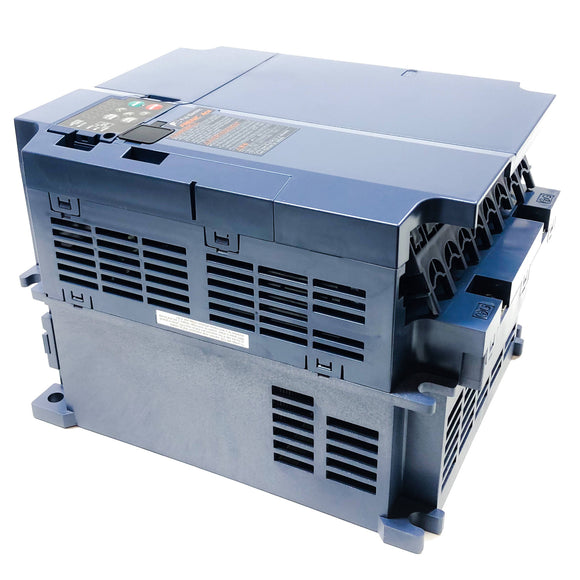

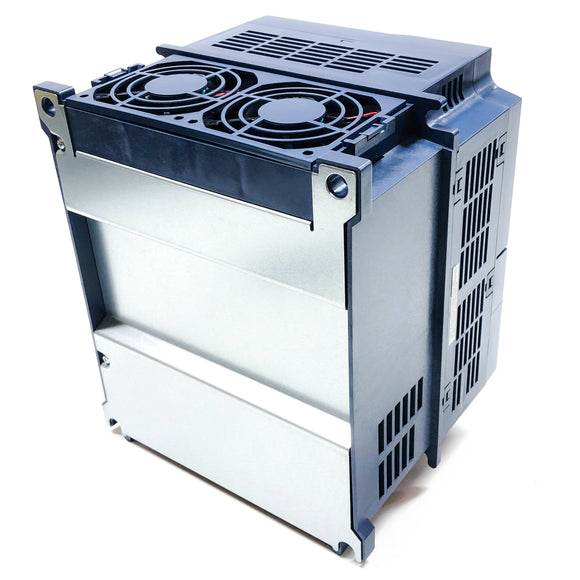

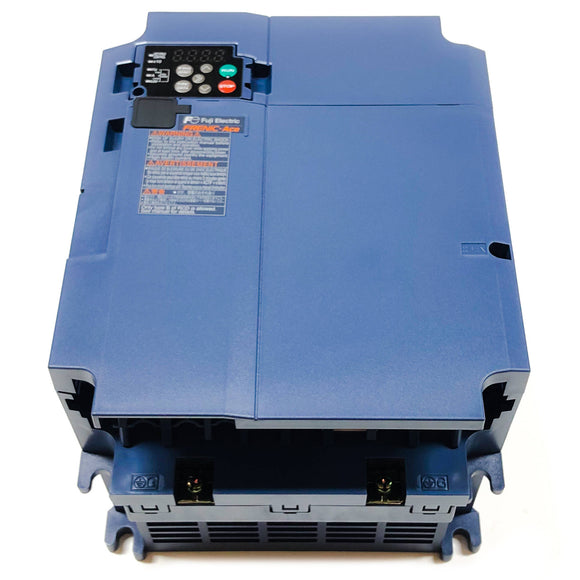

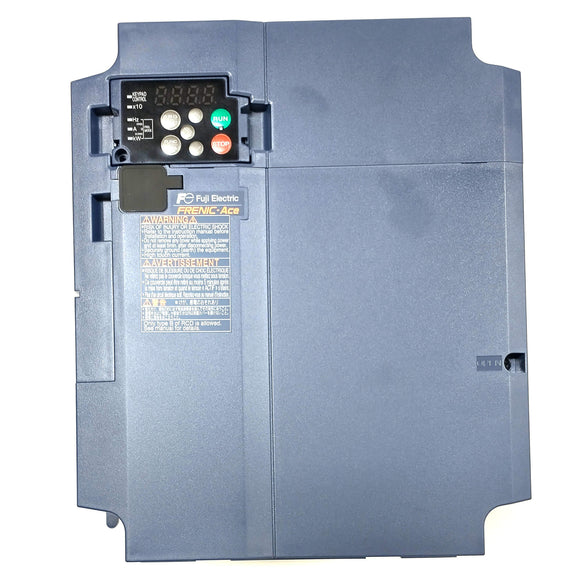

The FRENIC-Ace is a high performance, full-featured Drive designed to suit a wide variety of applications including fans, pumps, specialized machinery and more. Equipped with 200 steps of customizable logic and PMAC motor control, the FRENIC-Ace provides compact, but powerful multi-rated specification solutions for virtually all AC drive applications and comes standard with an industry-leading 3-year warranty.
Specifications
| Nominal Motor HP [kW] | 30 Hp [22 kW] (ND) 25 Hp [18.5 kW] (HD & HND) 20 Hp [15 kW] (HHD) |
|---|---|
| Rated Output Capacity kVA | 34 kVA (ND) 29 kVA (HD & HND) 23 kVA (HHD) |
| Rated Output Voltage | 3 Phase, 380-480 Volt (with AVR) |
| Rated Output Current | 44 Amps (HD) 38 Amps (HD & HND) 30 Amps (HHD) |
| Rated Overload Capability | 120 % of nominal current for 1 minute (ND & HND) 150 % of nominal current for 1 minute (HD) 150 % of nominal current for 1 minute or 200% of nominal current for 0.5 seconds (HHD) |
| Main Power Supply Input | 3 Phase, 380 to 480 Volt, 50/60 Hz (With AVR) |
| Voltage / Frequency Variations | Voltage: +10 % to -15% Voltage Unbalance: 2% or less Frequency: +5% to -5% |
| Rated Current Input without DC Reactor [with DC Reactor] |
60.6 Amps [42.2 Amps] (ND) 52.3 Amps [35.5 Amps] (HD & HND) 43.8 Amps [28.8 Amps] (HHD) |
| Required Power Supply Capacity | 29 kVA (ND) 25 kVA (HD & HND) 20 kVA(HHD) |
| Braking Torque | 12 % (ND) 15 % (HD & HND) 20 % (HHD) |
| DC Braking | Starting frequency: 0.0 to 60.0 Hz Braking Time: 0.0 to 30.0 Seconds Braking Level: 0 to 60 % (ND),0 to 80 % (HD & HND), 0-100 % (HHD) of nominal current |
| Braking Chopper | Built-In |
| Braking Resister | Optional |
| Minimum Connectable Resistance | 34.4 ? |
| DC Reactor | Optional, DCR4-22A (ND) Optional, DCR4-18.5 (HD & HND) Optional, DCR4-15 (HHD) |
| Cooling | Fan Cooling Optional External Cooling Adapter PB-F1-15 |
| EMC Filter | Optional |

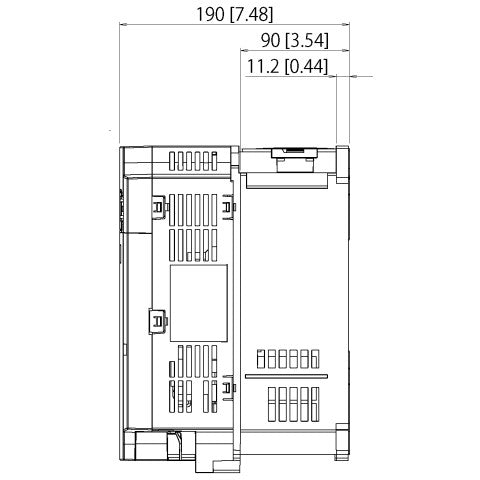

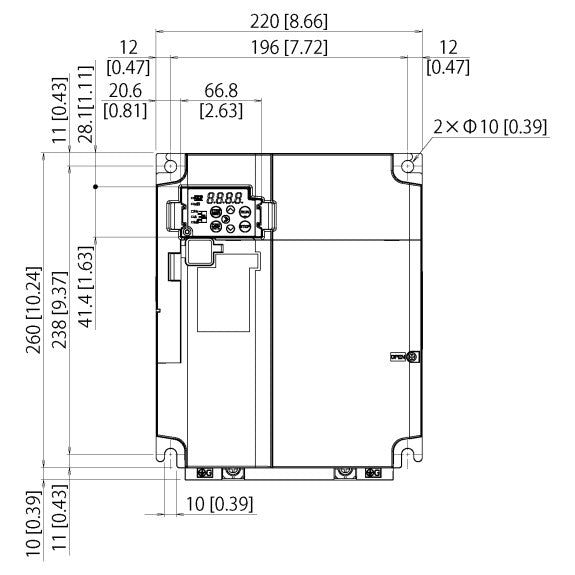

| Dimensions | 8.66" x 10.63" x 7.48" |
| Weight | 20 lbs |
| Warranty | 3 Years |
Environmental
| Enclosure | IP20, UL Open Type UL Type 1 by Option Kit NEMA1-69E2-24 |
|---|---|
| Ambient Temperature | Standard (Open Type): -10 to +50 °C / 14 to 122 °F (HHD/HND) NEMA 1/UL Type 1: -10 to+40 °C / 14 to 104 °F (HHD/HND) |
| Storage Temperature | -25 to +65°C (-13 to 149 °F) |
| Humidity | 5 to 95% Relative Humidity (without condensation) |
| Installation Location | Indoors |
| Altitude | <3,300ft (1,000m) 1000-1500m .97 Output Current Derating Factor 1500-2000m .95 Output Current Derating Factor 2000-2500m .91 Output Current Derating Factor 2500-3000m .88 Output Current Derating Factor |
Codes and Standards
| UL / cUL 508C C22.2 No.14 |
|---|
| CE |
| RoHs |
| GOST-R |
| KC |
| EN / ISOc13849-1:2008 cat. 3/PL:e |
Electrical
| Control | V/F Control V/F Control with Slip Compensation Dynamic Torque Vector Control V/F Control with Encoder (Optional) Vector Control with Encoder (Optional) PM Motor Sensorless Vector Control |
|---|---|
| Output Stability | Analog setting: +/-0.2% of maximum frequency Digital setting: +/-0.01% of maximum frequency (by keypad settings) |
| Output Frequency | Max 500Hz |
| Speed Control Range | 1:1500 IM Vector Control w/encoder 1:100 IM V/F w/encoder 1:10 PM Sensorless Vector Control |
| Digital Inputs | (7) X1 - X5, FWD, & REV Programmable, 60 selectable functions |
| Analog Inputs | (1) -0 to +10Vdc (1) -4 to 20mA |
| Digital Outputs | (1) From C Relay (2) Transistor Output, 78 Selectable Functions |
| Analog Output: Selectable Type | (2) 0 to 10Vdc or 4 to 20mA, 19 Selectable Output Signal Functions. |
| RS-485 Connections | (2) RJ45 Port Terminal |

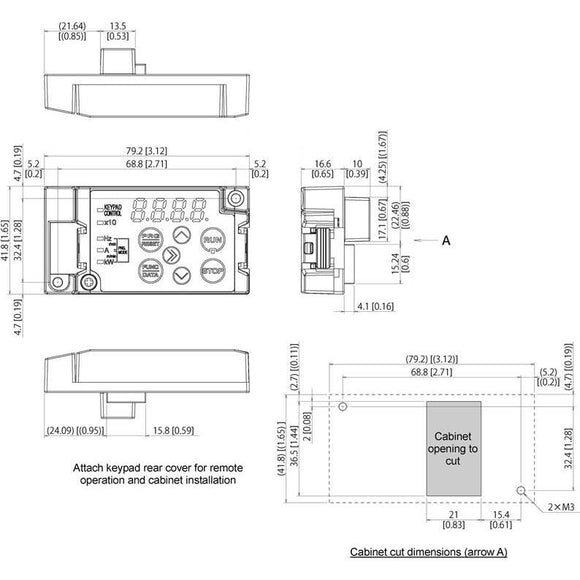

| Operator's Keypad with LED Display | Indicating System Operation and Associated Value
Conversion, Status of I/O, Operations and Alarms |
| Keypad Indications | Operations, Number of times unit placed in operation, Duration
and kWh output |
| 24Vdc Output Terminal | 100mA Maximum Supply |
