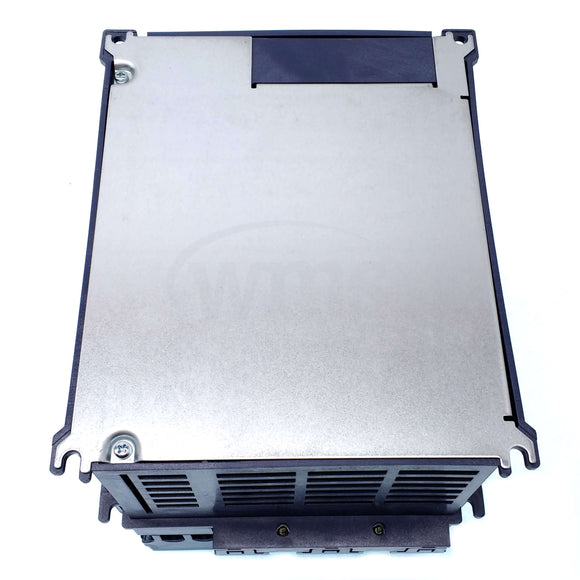

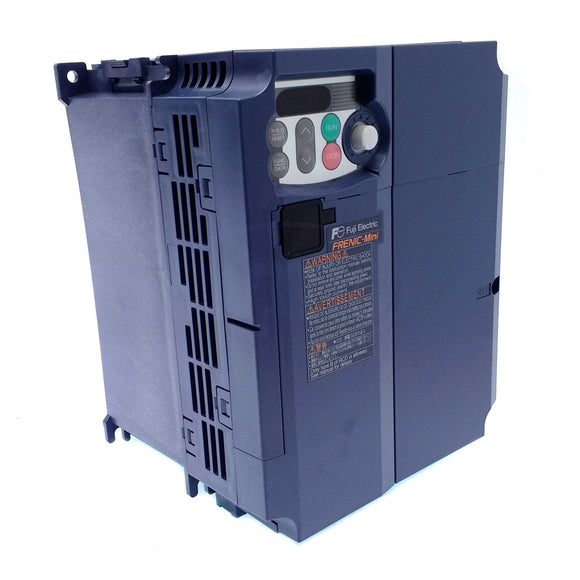

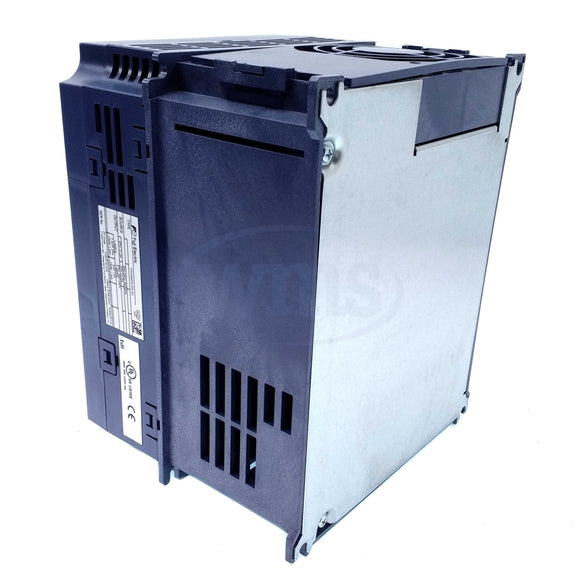

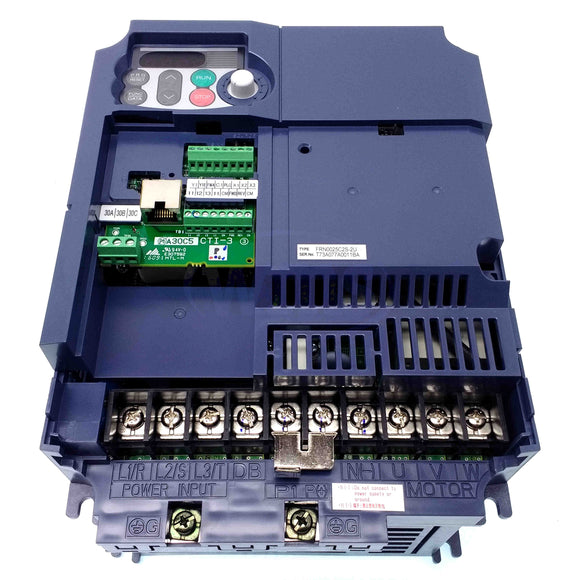

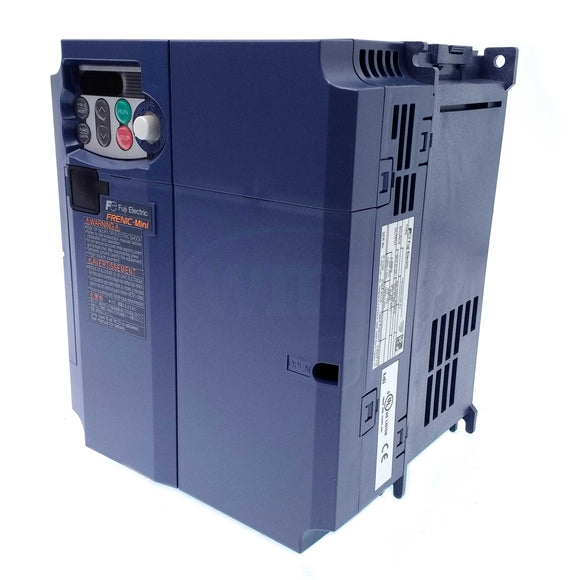

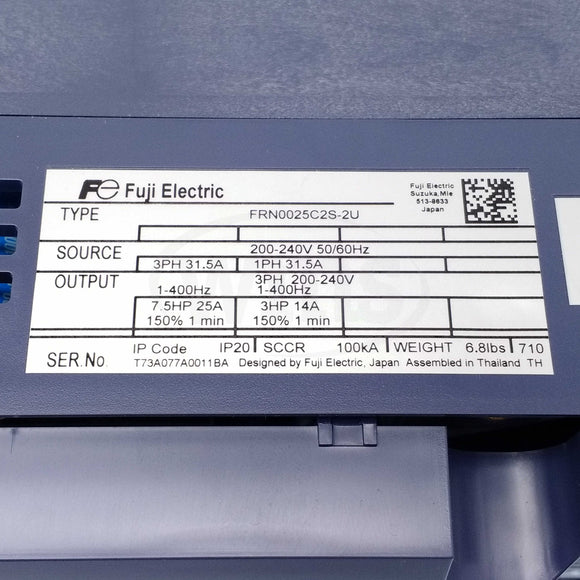

Quick Specifications
| Input Voltage: Range(Hz) - Phase | 200-240VAC – 3 Phase |
|---|---|
| Rated Input Current | 21.1 A (with DCR) 31.5 A (without DCR) |
| Output Voltage: Range-Phase | 0 to Maximum Input Voltage - 3 Phase |
| Rated Output Current | 25.0 A 23.5 A (Carrier Frequency >3kHz or Ambient Temp >40°C/104°F) |
| Nominal Applied Motor | 7.5 HP 5.5 kW |
| Mass | 3.1 lbs 6.8 kg |
Environmental
| Enclosure | UL Open Type (IP20/IP00) Optional UL Type 1 |
|---|---|
| Ambient Temperature | UL Open Type: +14 to +122°F (-10 to +50°C) UL Type 1: +14 to +104°F (-10 to +40°C) |
| Storage Temperature | -13 to +158°F (-25 to +70°C) |
| Humidity | 5% to 95% (No Condensation) |
| Altitude | 0 to 3,300 ft. (1,000 m) Without Derating Derate Output Current for Higher Altitudes per User's Manual |
Codes and Standards
| UL508C |
|---|
| EN 61800-5-1:2007 |
Electrical
| Input Voltage: Tolerance | 3 Phase Input: +10% to -15%, <2% Unbalance |
|---|---|
| Input Frequency: Nominal, Tolerance | 50/60Hz, +/-5% |
| Required Power Supply Capacity (kVA) | 7.4 kVA |
| Displacement Power Factor | >0.98 (@ Rated Load) |
| Maximum Output Frequency | 400Hz |
| Motor Control Method | Induction Motor: V/f, Dynamic Torque Vector, Slip Comp, Auto-Torque Boost, Automatic Energy Savings Synchronous Motor (PMAC): Sensorless Magnetic Positioning [speed control range: 10% of base frequency and up] |
| Overload Capacity | 150% of Rated Current for 1 minute 200% Rated Current for 0.5 seconds |
| Analog Inputs | Qty 1: 0 to +10VDC Qty 1: 4 to 20mA |
| Digital Inputs | Qty 5: Programmable Inputs |
| Analog Outputs | Qty 1: Configurable for 0 to +10VDC, User Selectable for Proportional Analog Signal Functionality |
| Digital Outputs | Qty 1: Form C (1 Normally Open & 1 Normally Closed) Dry Contacts Rated 0.3A @ 230VAC Max, User Selectable Functionality Qty 1: Transistor Output Rated 50mA @ 27Vdc Max, User Selectable Functionality |
| Power Supply | Qty 1: 24VDC, 50mA Max |
| Braking Torque | 20 % |
| DC Injection Braking | Starting Frequency: 0.0 to 60.0Hz Braking Time: 0.0 to 30.0 Seconds Braking Level: 0 to 100% |
| Braking Transistor | Built-in |

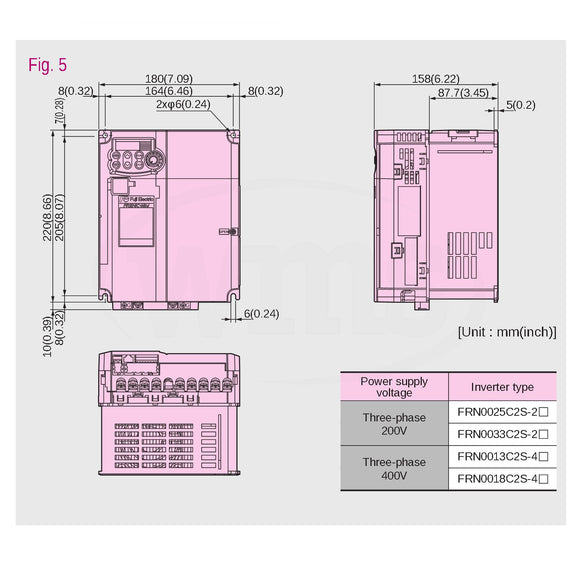

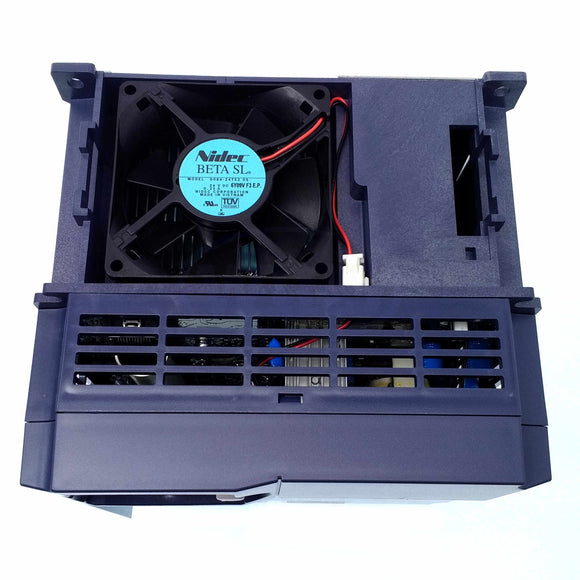

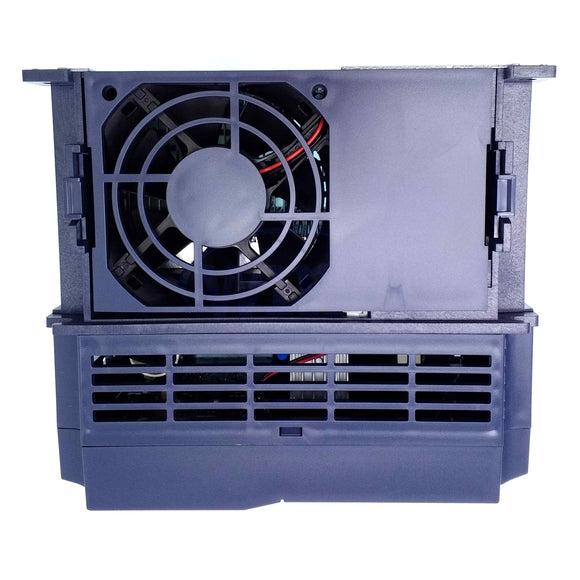

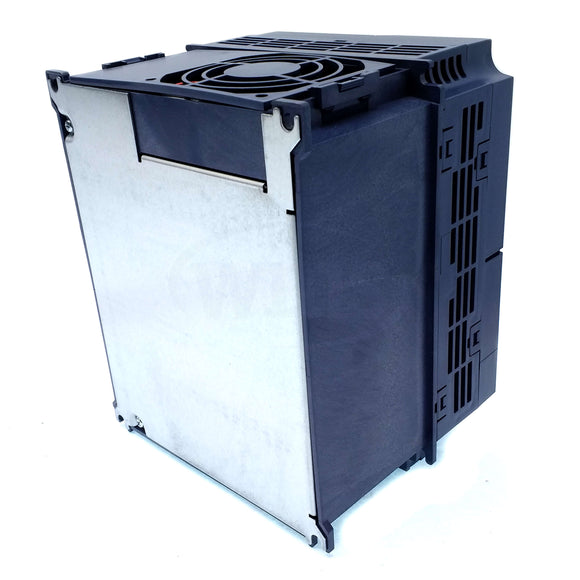

| Cooling Method | Fan Cooling |
Links
Fuji Electric FRENIC-Mini C2 Series Quick Reference Guide
Fuji Electric FRENIC-Mini C2 Series Instruction Manual
Fuji Electric FRENIC-Mini C2 Series General Specifications
Fuji Electric FRENIC-Mini C2 Series Brochure
Fuji Electric FRENIC-Mini C2 Series Catalog
Fuji Electric FRENIC-Mini C2 Series Watts Loss
Application Notes
Fuji Electric FRENIC-Mini C2 Series Automatic Restart after Power Failure
Fuji Electric FRENIC-Mini C2 Series PID Control with Pressure Transducer
Fuji Electric FRENIC-Mini C2 Series Pre-Set Speed Operation
Fuji Electric FRENIC-Mini C2 Series 3-Wire Start/Stop
