Environmental
| Enclosure | UL Open Type (IP20) Optional UL Type 1 |
|---|---|
| Ambient Temperature | +14 to +122°F (-10 to +50°C) - UL Open Type +14 to +104°F (-10 to +40°C) - UL Type 1 |
| Storage Temperature | -13 to +158°F (-25 to +70°C) |
| Humidity | 5% to 95% With No Condensation |
| Altitude | 0 to 3,300 ft. (1,000 m) Without Derating Derate Output Current for Higher Altitudes per User's Manual |
Codes and Standards
| UL508C |
|---|
| EN 61800-5-1:2007 |
Electrical
| Input Voltage: Range-Phase | 200-240VAC - 3 Phase 200-240VAC - 1 Phase with Derating |
|---|---|
| Input Voltage: Tolerance, Unbalance | 3 - Phase Input = +10% to -15%, <2% |
| Input Frequency: Nominal, Tolerance | 50/60Hz, +/-5% |
| Displacement Power Factor | >0.98 (@ Rated Load) |
| Output Voltage: Range-Phase | 0 to Maximum Input Voltage -3 Phase |
| Maximum Output Frequency | 400Hz |

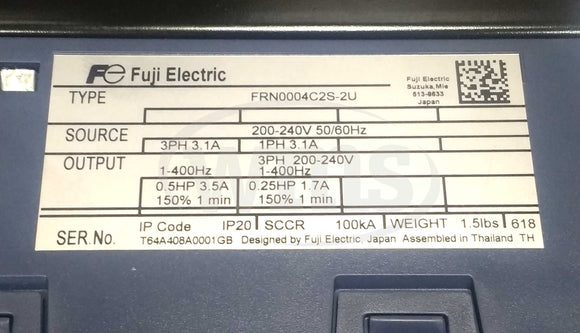

| Rated Output Current | 3.5 |
| Nominal Applied Motor HP (KW) | 1/2(.4) |
| Motor Control Method | Induction Motor: V/f Control Dynamic Torque Vector Control Slip Compensation Auto-Torque Boost Automatic Energy Savings Synchronous Motor (PMAC): Sensorless Magnetic Positioning [speed control range: 10% of base frequency and up |
| Overload Capacity | 150% Rated Current for 1 minute. 200% Rated Current for 0.5 second |
| Analog Inputs | Qty 1: 0 to +10VDC Qty 1: 0/4-20mA |
| Digital Inputs | Qty 5: Programmable |
| Analog Outputs | Qty 1: 0 to +10VDC, User Selectable Proportional Analog Signal Functionality |
| Digital Outputs | Qty 1: Form C (1N.O. & 1N.C.) Dry Contacts Rated 0.3A @ 230V Max, User Selectable Functionality Qty 1: Transistor Output Rated 50mA @ 27Vdc Max, User Selectable Functionality |
| Power Supply | Qty 1: 24VDC, 50mA Max |
