Environmental
| Enclosure | UL Open Type (IP20) Optional UL Type 1 |
|---|---|
| Ambient Temperature | +14 to +122°F (-10 to +50°C) - UL Open Type +14 to +104°F (-10 to +40°C) - UL Type 1 |
| Storage Temperature | -13 to +158°F (-25 to +70°C) |
| Humidity | 5% to 95% With No Condensation |
| Altitude | 0 to 3,300 ft. (1,000 m) Without Derating Derate Output Current for Higher Altitudes per User's Manual |
Codes and Standards
| UL508C |
|---|
| EN 61800-5-1:2007 |

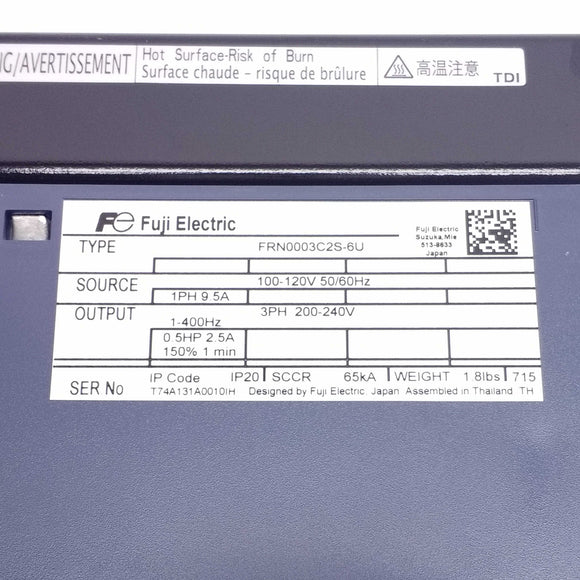

Electrical
| Input Voltage: Range-Phase | 100-120VAC - 1 Phase |
|---|---|
| Input Voltage: Tolerance, Unbalance |
1 - Phase Input = +10% to -10% |
| Input Frequency: Nominal, Tolerance | 50/60Hz, +/-5% |
| Displacement Power Factor | >0.98 (@ Rated Load) |
| Output Voltage: Range-Phase | 0 to 230VAC - 3 Phase for 115VAC Input |
| Maximum Output Frequency | 400Hz |
| Rated Output Current | 2.5 |
| Nominal Applied Motor HP (KW) | 1/2(.4) |
| Motor Control Method | Induction Motor: V/f Control Dynamic Torque Vector Control Slip Compensation Auto-Torque Boost Automatic Energy Savings Synchronous Motor (PMAC): Sensorless Magnetic Positioning [speed control range: 10% of base frequency and up |
| Overload Capacity | 150% Rated Current for 1 minute. 200% Rated Current for 0.5 second |

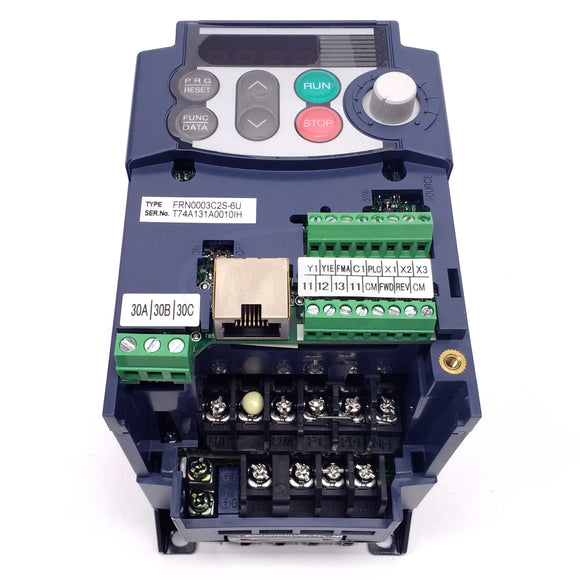

| Analog Inputs | Qty 1: 0 to +10VDC Qty 1: 0/4-20mA |
| Digital Inputs | Qty 5: Programmable |
| Analog Outputs | Qty 1: 0 to +10VDC, User Selectable Proportional Analog Signal Functionality |
| Digital Outputs | Qty 1: Form C (1N.O. & 1N.C.) Dry Contacts Rated 0.3A @ 230V Max, User Selectable Functionality Qty 1: Transistor Output Rated 50mA @ 27Vdc Max, User Selectable Functionality |
| Power Supply | Qty 1: 24VDC, 50mA Max |
Links
Fuji Electric FRENIC-Mini C2 Series User's Manual
Fuji Electric FRENIC-Mini C2 Series Quick Reference Guide
Fuji Electric FRENIC-Mini C2 Series Instruction Manual
Fuji Electric FRENIC-Mini C2 Series General Specifications
Fuji Electric FRENIC-Mini C2 Series Brochure
Fuji Electric FRENIC-Mini C2 Series Catalog
Fuji Electric FRENIC-Mini C2 Series Watts Loss
Application Notes
Fuji Electric FRENIC-Mini C2 Series Single Phase Ratings
Fuji Electric FRENIC-Mini C2 Series Automatic Restart after Power Failure
Fuji Electric FRENIC-Mini C2 Series PID Control with Pressure Transducer
Fuji Electric FRENIC-Mini C2 Series Pre-Set Speed Operation
Fuji Electric FRENIC-Mini C2 Series 3-Wire Start/Stop
