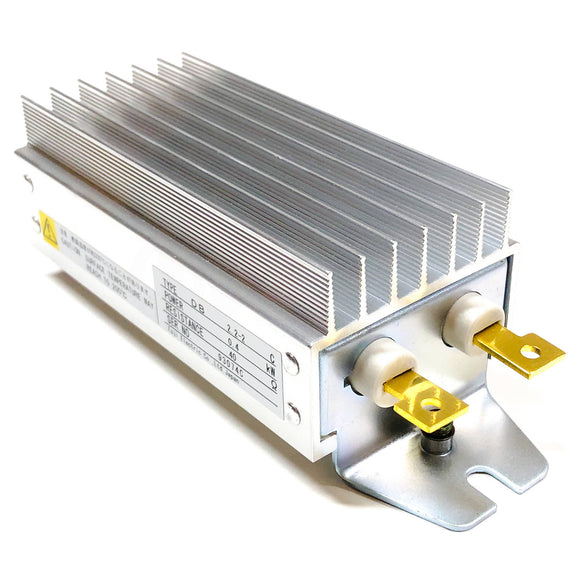

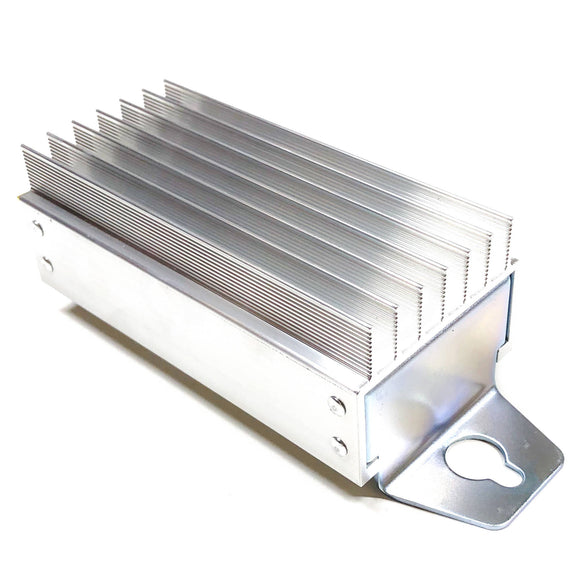

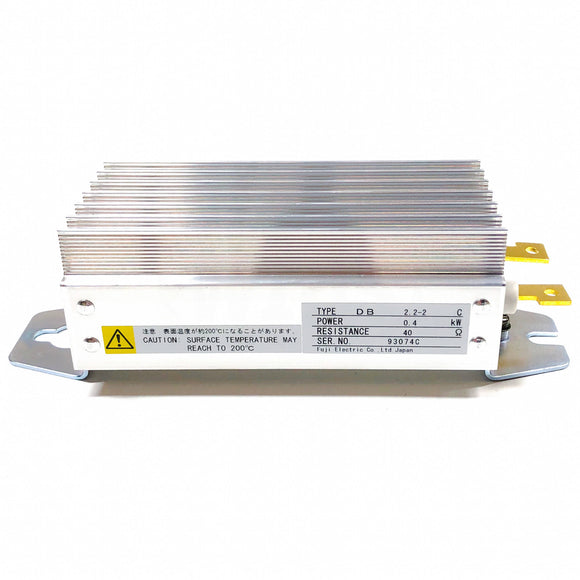

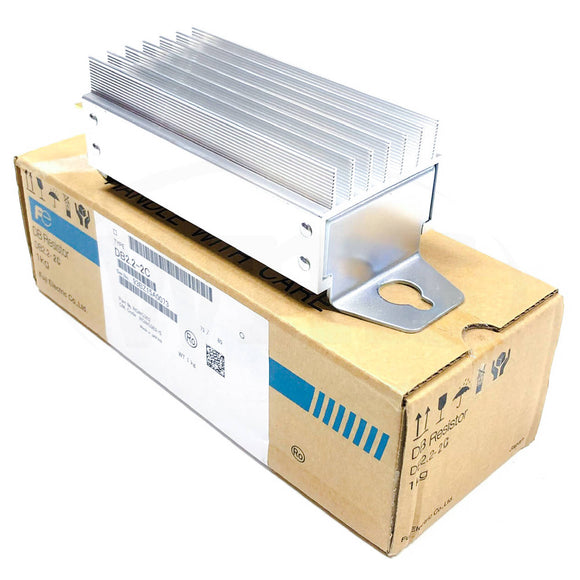

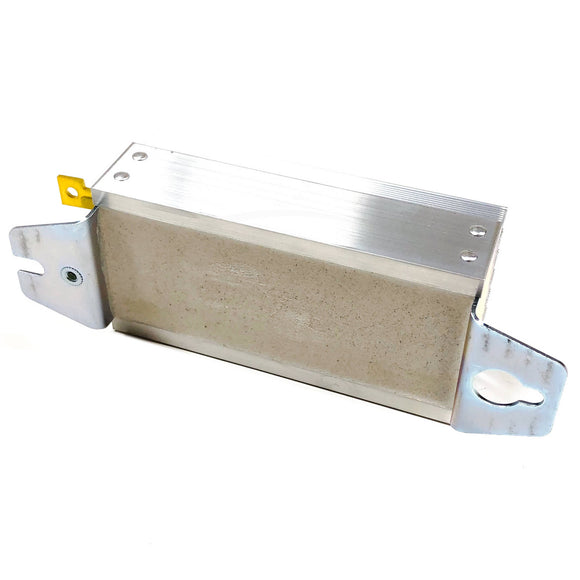

DB2.2-2C Fuji Electric Braking Resistor, 40 Ohm, 10% Duty Cycle

$92.40 USD

Shipping calculated at checkout

Fuji Electric Corp. of America SKU: DB2.2-2C

30 Day
Return Policy

Ships Fast
in 24 hours

4 In Stock!

Description Product Specs Manufacturer

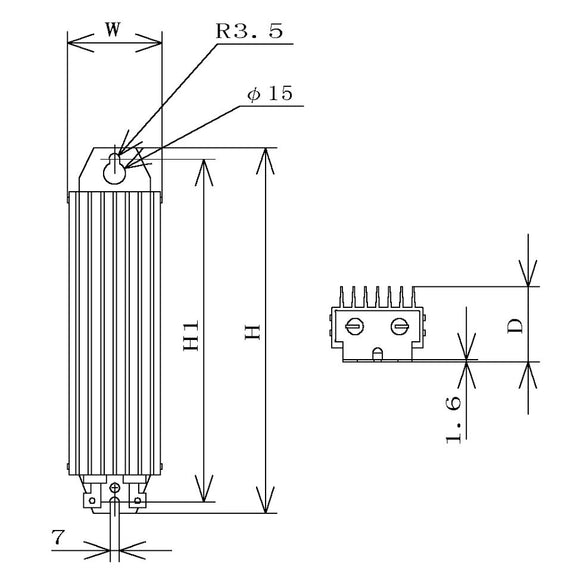

Type: DB2.2-2C Part Number: RGWG362 Power Capacity: 0.4kW Resistance: 40 Ohms Storage Temperature: -20 to +70°C Relative Humidity: 5 to 95% Ambient Temperature: -10 to +50°C Altitude: Up to 1000m Location: Indoors Wire Size: 2mm², 75°C Earth Terminal: M4 Terminal Form: Connected Bar, 2mm Board Thickness, 4.3mm Installation Hole Duty Cycle: 10% Made in Japan Dimensions: W: 67mm (2.64") H: 188mm (7.40") H1: 172mm (6.77") D: 55mm (2.17") Links: Fuji Electric Braking Resistor Instruction Manual (PDF, 11 Pages, 274KB)
  • Braking Resistor

Fuji Electric Corp. of America
