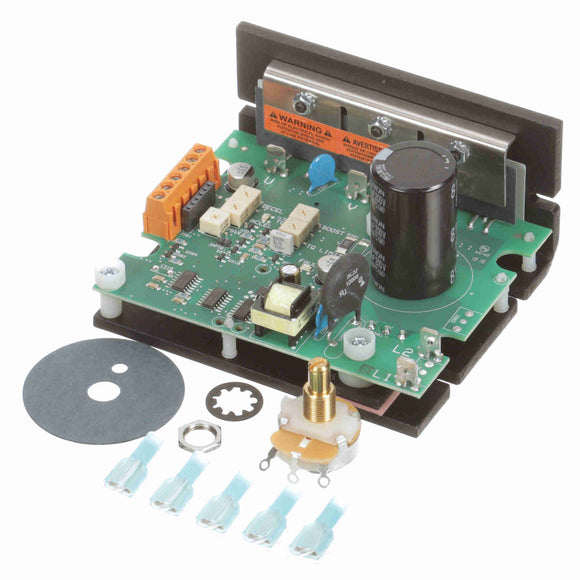

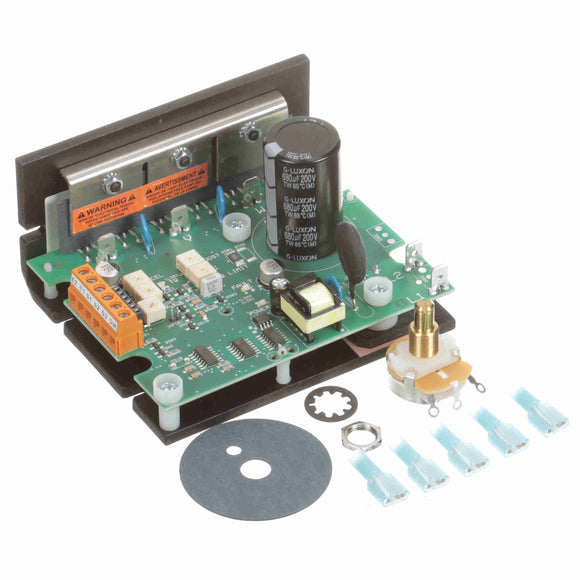

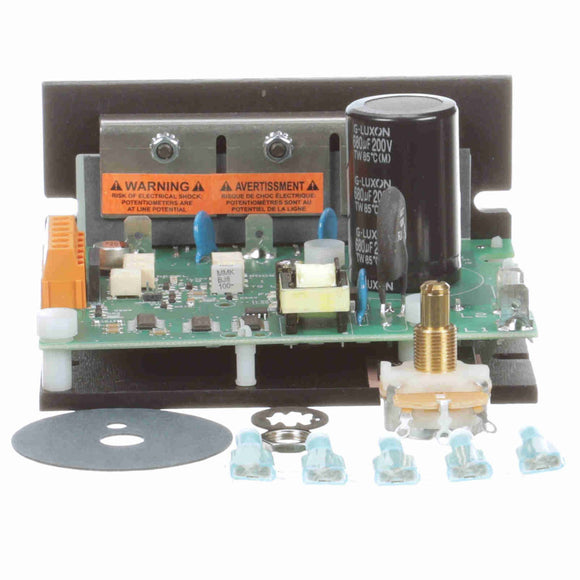

175320.00 Leeson FHP AC Drive 115V 1Ph Input

General Specifications:

The FHP Series are volts/hertz-type AC inverters are simple to set-up and calibrate as an SCR-type DC control. These cost-conscious and compact designs maintain the industry standard for mounting hole location.

Features include: � Compact Size (4.30" x 3.70") � Output voltage on dual voltage models is jumper selectable and has voltage doubler � Acceleration and deceleration trim pots Torque, maxiumum speed and torque limit trim pots � Torque �Foldback� feature - Allows up to 200% torque for short periods � 16kHz switchig frequency, with option to change between 4 and 16kHz � Adjustable torque boost for startup - Up to 200% � Color-coded on-board LEDs for power, fault and torque limit � Easy start/stop and direction control with enable and direction terminal connections � Accepts Speed reference via 0-5VDC isolated signal or wired in speed pot � Speed potentiometer shipped loose � Plug-in Process Control Module(PCM) kit available to accept 0-5VDC, 0-10VDC or 4-20mA input � UL listed NEMA 4 Features include: � NEMA 4X enclosure � Jumper selectable DC injection braking or coast to stop � Brake time and current are adjustable � Built-in isolation card to accept a speed reference signal � Minimum speed adjustment � Auto or manual restart after power loss LinksLeeson FHP User's Manual
