Features
Features

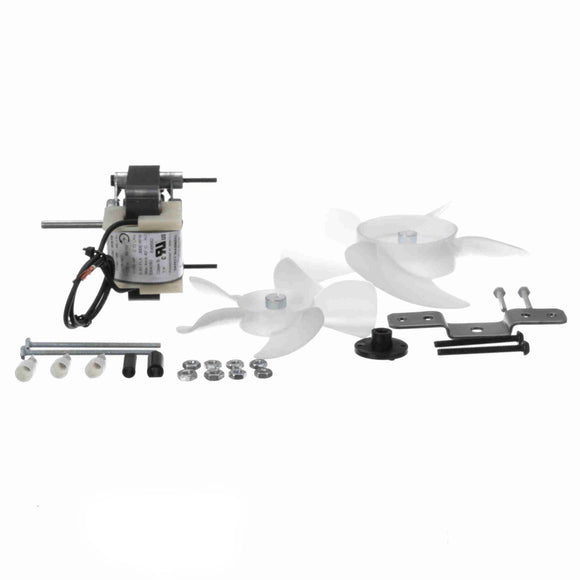

- Heating - Refrigeration - Ventilating Motor
- C-Frame
- Shaded Pole
- Thermally Protected, One-Shot Fuse
- Open Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- .1875" Diameter Shaft
- 7.5"/6.5" Leads with .3" Strip
- Extended Studs Opposite Shaft End
General Specifications
General Specifications
|
Model : |
Catalog No : |
K670 | |
|
Part Description : |
71581188.C-FRAME..1/150 HP.1 SPD. |
Category : |
C-Frame / Skeleton |
|
Stock : |
No |
Nameplate Specifications
Nameplate Specifications
|
Output HP : |
1/150 HP |
Output KW : |
0.01 kW |
|
Frequency : |
60 Hz |
Voltage : |
120 V |
|
Current : |
.61 A |
Speed : |
3000 RPM |
|
Service Factor : |
1 |
Phase : |
1 |
|
Duty : |
Air Over |
Insulation Class : |
B |
|
Frame : |
C-FRAME |
Enclosure : |
Open |
|
Overload Protector : |
Thermally Protected |
Ambient Temperature : |
40 °C |
|
UL : |
Recognized |
CSA : |
N |
|
CE : |
N |
Technical Specifications
Technical Specifications
|
Electrical Type : |
Shaded Pole |
Starting Method : |
Across The Line |
|
Poles : |
2 |
Rotation : |
Counterclockwise Shaft End |
|
Mounting : |
Extended Studs |
Drive End Bearing : |
Sleeve |
|
Opp Drive End Bearing : |
Sleeve |
Frame Material : |
Na |
|
Shaft Type : |
Round |
Overall Length : |
3.69 in |
|
Shaft Diameter : |
0.188 in |
Shaft Extension : |
1.30 in |
|
UPC : |
818508021737 |
Weight : |
2.00 LB |
Speed & Load Characteristics
