Features
Features
- OEM Direct Replacement Motor
- C-Frame
- Shaded Pole
- Thermally Protected, One-Shot Fuse
- Open Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 1/4" Diameter Shaft
- 30"/28" Leads with Flag Terminal
- Flex Mount
General Specifications
General Specifications
|
Model : |
Catalog No : |
K628 | |
|
Part Description : |

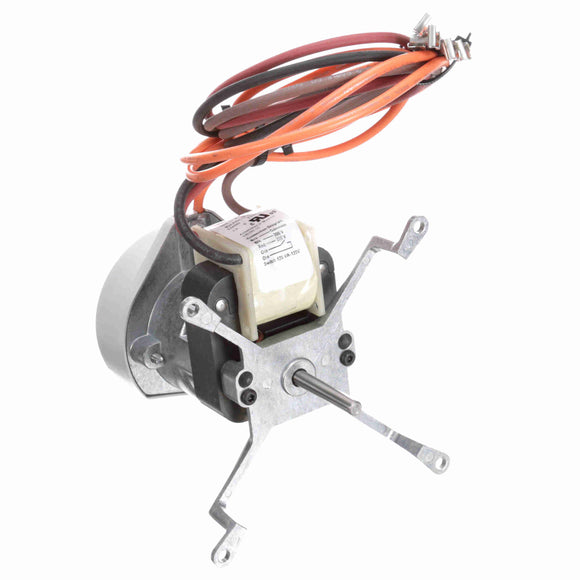

71581033.C-FRAME..1/200 HP.1 SPD. |
Category : |
C-Frame / Skeleton |
|
Stock : |
No |
Nameplate Specifications
Nameplate Specifications
|
Output HP : |
1/200 HP |
Output KW : |
0.01 kW |
|
Frequency : |
60 Hz |
Voltage : |
208/230 V |
|
Current : |
.25 A |
Speed : |
3000 RPM |
|
Service Factor : |
1 |
Phase : |
1 |
|
Duty : |
Air Over |
Insulation Class : |
B |
|
Frame : |
C-FRAME |
Enclosure : |
Open |
|
Overload Protector : |
Impedence |
Ambient Temperature : |
40 °C |
|
UL : |
Recognized |
CSA : |
N |
|
CE : |
N |
Technical Specifications
Technical Specifications
|
Electrical Type : |
Shaded Pole |
Starting Method : |
Across The Line |
|
Poles : |
2 |
Rotation : |
Clockwise |
|
Mounting : |
Bracket |
Drive End Bearing : |
Sleeve |
|
Opp Drive End Bearing : |
Sleeve |
Frame Material : |
Na |
|
Shaft Type : |
Round |
Overall Length : |
5.46 in |
|
Shaft Diameter : |
0.250 in |
Shaft Extension : |
1.50 in |
|
UPC : |
818508021713 |
Weight : |
3.00 LB |
