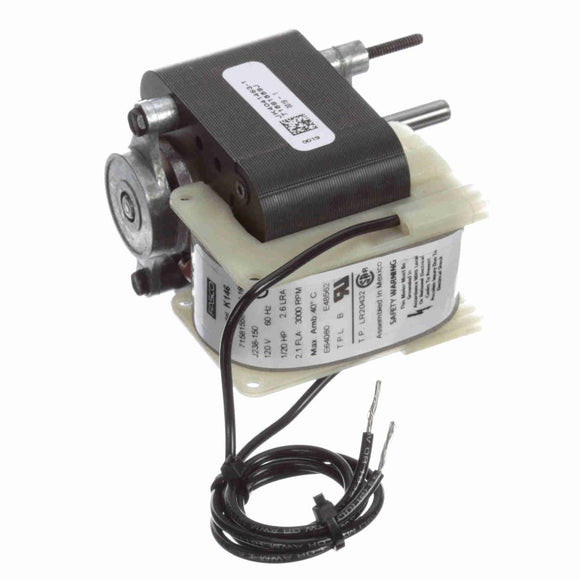

Features
Features
- Heating - Refrigeration - Ventilating Motor
- C-Frame
- Shaded Pole
- Thermally Protected, One-Shot Fuse
- Open Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 1/4" Diameter Shaft
- 12.5"/11.5" Leads with .5" Strip
- Extended Studs Shaft End
General Specifications
General Specifications
|
Model : |
Catalog No : |
K146 | |
|
Part Description : |
71581559 1/20 HP MOTOR 6PK |
Category : |
C-Frame / Skeleton |
|
Stock : |
No |
Nameplate Specifications
Nameplate Specifications
|
Output HP : |
1/20 HP |
Output KW : |
0.04 kW |
|
Frequency : |
60 Hz |
Voltage : |
120 V |
|
Current : |
2.1 A |
Speed : |
3000 RPM |
|
Service Factor : |
1 |
Phase : |
1 |
|
Duty : |
Air Over |
Insulation Class : |
B |
|
Frame : |
C-FRAME |
Enclosure : |
Open |
|
Overload Protector : |
Thermally Protected |
Ambient Temperature : |
40 °C |
|
UL : |
Recognized |
CSA : |
Y |
|
CE : |
N |
Technical Specifications
Technical Specifications
|
Electrical Type : |
Shaded Pole |
Starting Method : |
Across The Line |
|
Poles : |
2 |
Rotation : |
Clockwise |
|
Mounting : |
Extended Studs |
Drive End Bearing : |
Sleeve |
|
Opp Drive End Bearing : |
Sleeve |
Frame Material : |
Na |
|
Shaft Type : |
Round |
Overall Length : |
3.59 in |
|
Shaft Diameter : |
0.250 in |
Shaft Extension : |
1.00 in |
|
UPC : |
818508021645 |
Weight : |
3.00 LB |
