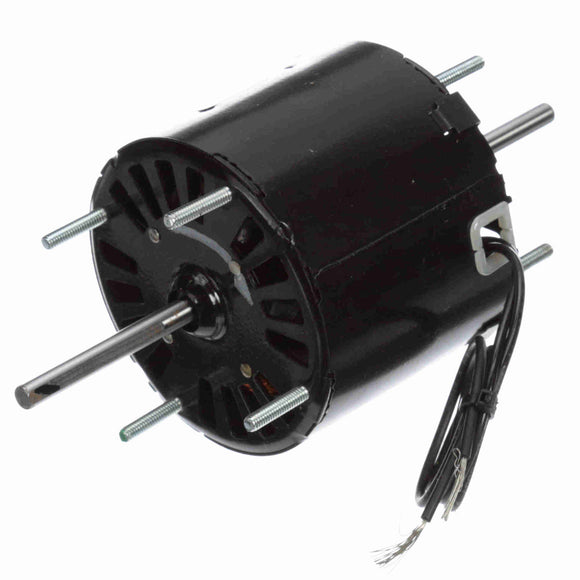

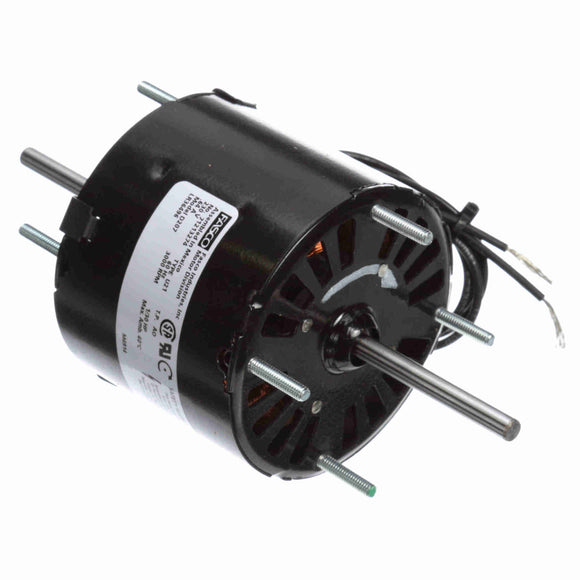

Features
Features
- General Purpose Motor
- 3.3" Diameter
- Shaded Pole
- Thermally Protected
- Open Shaft End and Lead End End-Frame, Enclosed Shell, Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 1/4" Diameter Double Shaft with Flat
- 12" Leads
- Extended Studs Lead End and Opposite Lead End
General Specifications
General Specifications
|
Model : |
Catalog No : |
D207 | |
|
Part Description : |
71213274.MOTOR.3.30" DIA..1/30 HP.1 SPD. |
Category : |
Self Cooled |
|
Stock : |
No |
Nameplate Specifications
Nameplate Specifications
|
Output HP : |
1/30 HP |
Output KW : |
0.02 kW |
|
Frequency : |
60 Hz |
Voltage : |
230 V |
|
Current : |
0.64 A |
Speed : |
3000 RPM |
|
Service Factor : |
1 |
Phase : |
1 |
|
Duty : |
Air Over |
Insulation Class : |
B |
|
Frame : |
3.3 |
Enclosure : |
Open Air Over |
|
Overload Protector : |
Thermally Protected |
Ambient Temperature : |
40 °C |
|
UL : |
Recognized |
CSA : |
Y |
|
CE : |
N |
Technical Specifications
Technical Specifications
|
Electrical Type : |
Shaded Pole |
Starting Method : |
Across The Line |
|
Poles : |
2 |
Rotation : |
Clockwise Shaft End |
|
Mounting : |
Extended Studs |
Drive End Bearing : |
Sleeve |
|
Opp Drive End Bearing : |
Sleeve |
Frame Material : |
Steel |
|
Shaft Type : |
Flat |
Overall Length : |
7.33 in |
|
Frame Length : |
2.53 in |
Shaft Diameter : |
0.250 in |
|
Shaft Extension : |
2.25 in |
UPC : |
815585028970 |
|
Weight : |
3.00 LB |
