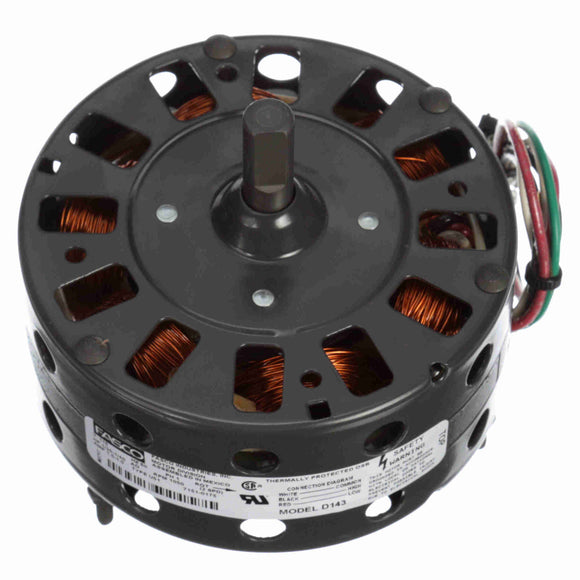

Features
- Ventilation - Unit Heater Motor
- 5" Diameter - 42 Frame
- Shaded Pole
- Thermally Protected
- Open Air Over
- Class A Insulation, 40°C Ambient
- Sleeve Bearing
- 1/2" Diameter Shaft with Flat
- 10" Leads with Quick Connect Terminal
- Extended Studs Lead End
General Specifications
| UPC: | 815585028628 | Weight: | 5.00 LB |
| Packaged Length: | 5.13 IN | Packaged Width: | 5.13 IN |
| Packaged Height: | 10 IN |
Nameplate Specifications
| Output HP: | 1/30-1/40 Hp | Output KW: | 0.02 kW |
| Frequency: | 60 Hz | Voltage: | 115 V |
| Current: | 1.5/1.0 A | Speed: | 1050 rpm |
| Service Factor: | 1 | Phase: | 1 |
| Duty: | Air Over | Insulation Class: | B |
| Frame: | 42 | Enclosure: | Open Air Over |
| Thermal Protection: | Thermally Protected | Ambient Temperature: | 40 °C |
| UL: | Recognized | CSA: | Y |
| CE: | N |
Technical Specifications
| Electrical Type: | Shaded Pole | Starting Method: | Across The Line |
| Poles: | 6 | Rotation: | Counterclockwise Shaft End |
| Mounting: | Extended Studs | Drive End Bearing: | Sleeve |
| Opp Drive End Bearing: | Sleeve | Frame Material: | Na |
| Shaft Type: | Flat | Overall Length: | 4.52 in |
| Shaft Diameter: | 0.500 in | Shaft Extension: | 1.66 in |
