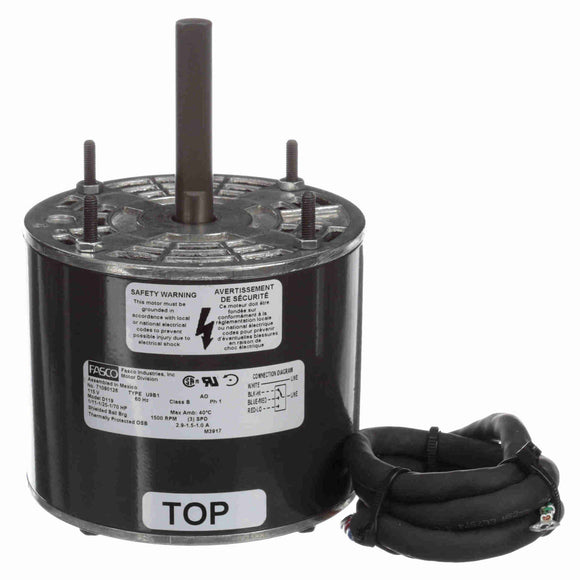

Features
- General Purpose Motor
- 4.4" Diameter
- Shaded Pole
- Thermally Protected
- Open Shaft End and Opposite Shaft End End-Frame, Enclosed Shell, Air Over
- Class B Insulation, 40°C Ambient
- Ball Bearing
- 1/2" Diameter Shaft with Flat
- 30" Leads
- Extended Studs Shaft End
General Specifications
| UPC: | 815585028123 | Weight: | 7 LB |
| Packaged Length: | 4.38 IN | Packaged Width: | 4.38 IN |
| Packaged Height: | 10 IN |
Nameplate Specifications
| Output HP: | 1/11-1/25-1/70 Hp | Output KW: | 0.07 kW |
| Frequency: | 60 Hz | Voltage: | 115 V |
| Current: | 2.9-1.5-1.0 A | Speed: | 1500 rpm |
| Service Factor: | 1 | Phase: | 1 |
| Duty: | Air Over | Insulation Class: | B |
| Frame: | 4.4 | Enclosure: | Open Air Over |
| Thermal Protection: | Thermally Protected | Ambient Temperature: | 40 °C |
| UL: | Recognized | CSA: | Y |
| CE: | N |
Technical Specifications
| Electrical Type: | Shaded Pole | Starting Method: | Across The Line |
| Poles: | 4 | Rotation: | Counterclockwise Shaft End |
| Mounting: | Extended Studs | Drive End Bearing: | Ball |
| Opp Drive End Bearing: | Ball | Frame Material: | Rolled Steel |
| Shaft Type: | Flat | Overall Length: | 6.36 in |
| Frame Length: | 3.38 in | Shaft Diameter: | 0.500 in |
| Shaft Extension: | 2.6 in |
