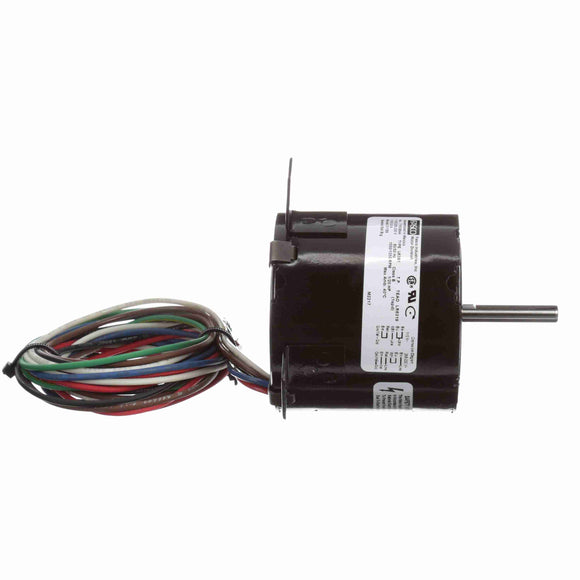

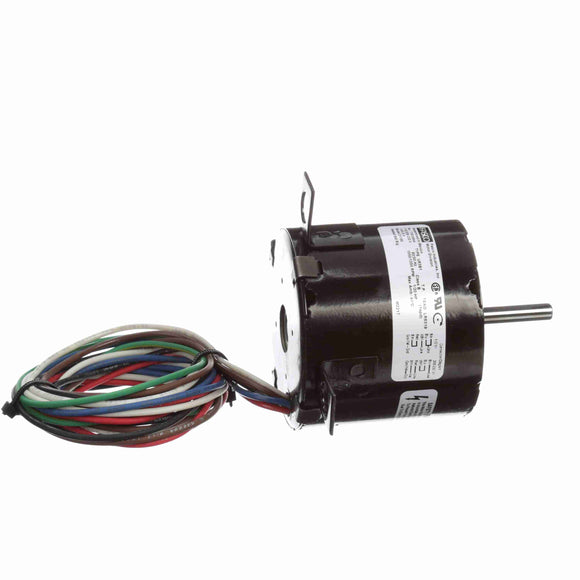

Features
- OEM Direct Replacement Motor
- 3.3" Diameter
- Shaded Pole
- Thermally Protected
- Totally Enclosed Air Over
- Class B Insulation, 40°C Ambient
- Ball Bearing
- 5/16" Diameter Shaft with Flat
- 40" Leads
- Lug Mount
General Specifications
| UPC: | 815585028109 | Weight: | 5 LB |
| Packaged Length: | 6.81 IN | Packaged Width: | 6.81 IN |
| Packaged Height: | 8.5 IN |

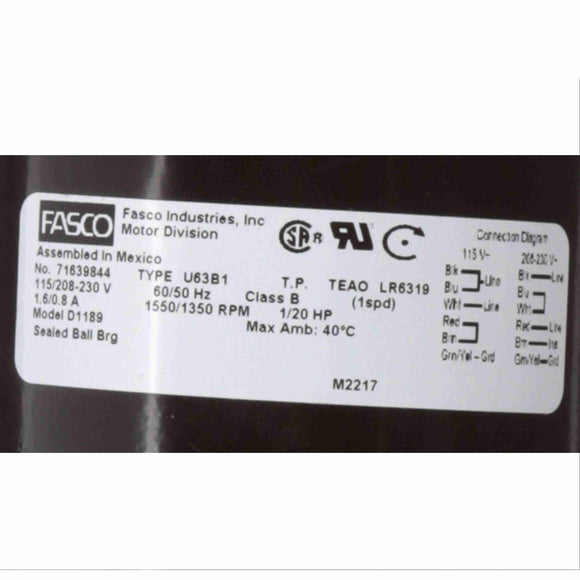

Nameplate Specifications
| Output HP: | 1/20 Hp | Output KW: | 0.04 kW |
| Frequency: | 60 Hz | Voltage: | 115/208-230 V |
| Current: | 1.60/0.80 A | Speed: | 1550/1350 rpm |
| Service Factor: | 1 | Phase: | 1 |
| Duty: | Air Over | Insulation Class: | B |
| Frame: | 3.3 | Enclosure: | Totally Enclosed Air Over |
| Thermal Protection: | Thermally Protected | Ambient Temperature: | 40 °C |
| UL: | Recognized | CSA: | Y |
| CE: | N |
Technical Specifications
| Electrical Type: | Shaded Pole | Starting Method: | Across The Line |
| Poles: | 4 | Rotation: | Clockwise Shaft End |
| Mounting: | Lug | Drive End Bearing: | Ball |
| Opp Drive End Bearing: | Ball | Frame Material: | Steel |
| Shaft Type: | Flat | Overall Length: | 4.86 in |
| Frame Length: | 2.95 in | Shaft Diameter: | 0.312 in |
| Shaft Extension: | 1.65 in |
