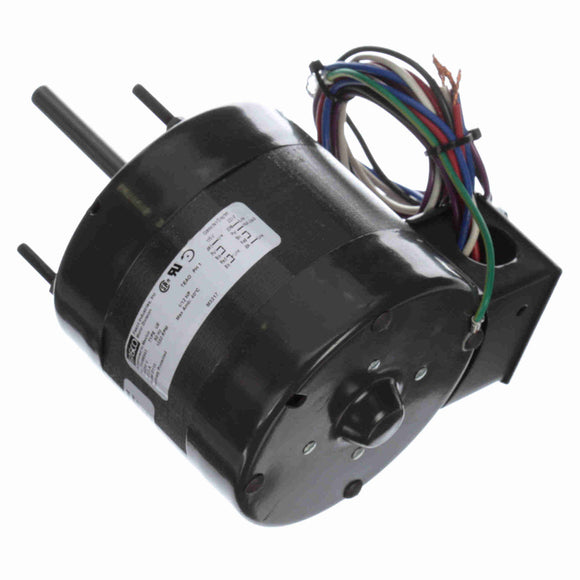

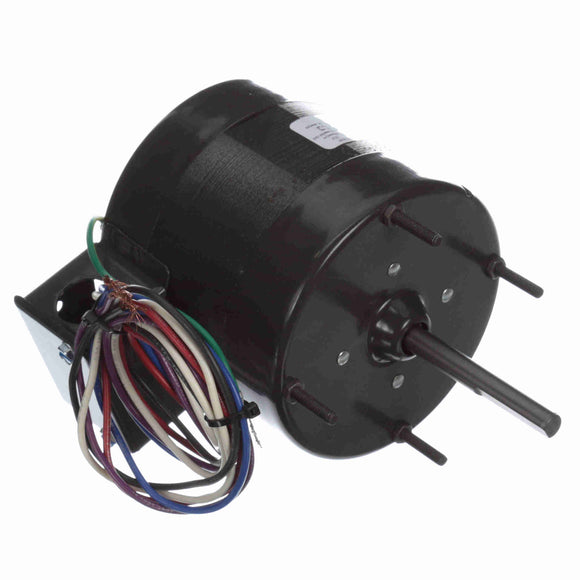

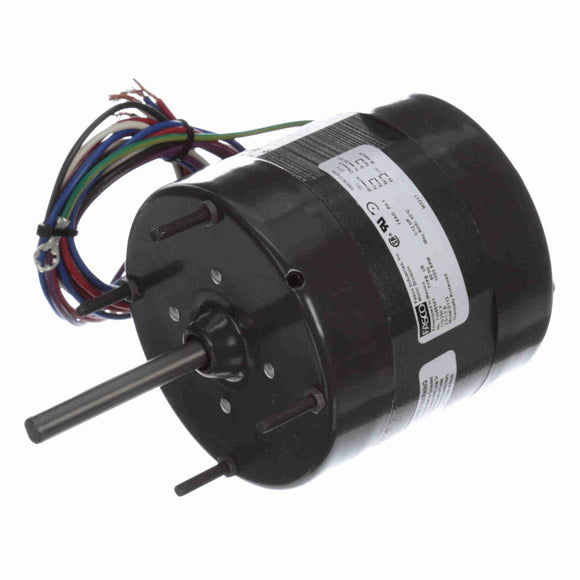

Features
- Fan Coil - Air-Conditioning - Heating Unit Motor
- 4.4" Diameter
- Shaded Pole
- Thermally Protected
- Totally Enclosed Air Over
- Class A Insulation, 40°C Ambient
- Sleeve Bearing
- 3/8" Diameter Shaft with Flat
- Conduit Box, 26" Leads
- Extended Studs Shaft End
General Specifications
| UPC: | 818508021966 | Weight: | 9.00 LB |
| Packaged Length: | 5.75 IN | Packaged Width: | 4.38 IN |
| Packaged Height: | 8 IN |
Nameplate Specifications
| Output HP: | 1/12 Hp | Output KW: | 0.06 kW |
| Frequency: | 60 Hz | Voltage: | 115/230 V |
| Current: | 2.5/1.3 A | Speed: | 1550 rpm |
| Service Factor: | 1 | Phase: | 1 |
| Duty: | Air Over | Insulation Class: | A |
| Frame: | 4.4 | Enclosure: | Totally Enclosed Air Over |
| Thermal Protection: | Thermally Protected | Ambient Temperature: | 40 °C |
| UL: | Recognized | CSA: | Y |
| CE: | N |
Technical Specifications
| Electrical Type: | Shaded Pole | Starting Method: | Across The Line |
| Poles: | 4 | Rotation: | Counterclockwise Shaft End |
| Mounting: | Extended Studs | Drive End Bearing: | Sleeve |
| Opp Drive End Bearing: | Sleeve | Frame Material: | Na |
| Shaft Type: | Flat | Overall Length: | 7.62 in |
| Shaft Diameter: | 0.375 in | Shaft Extension: | 3 in |
Speed & Load Characteristics
