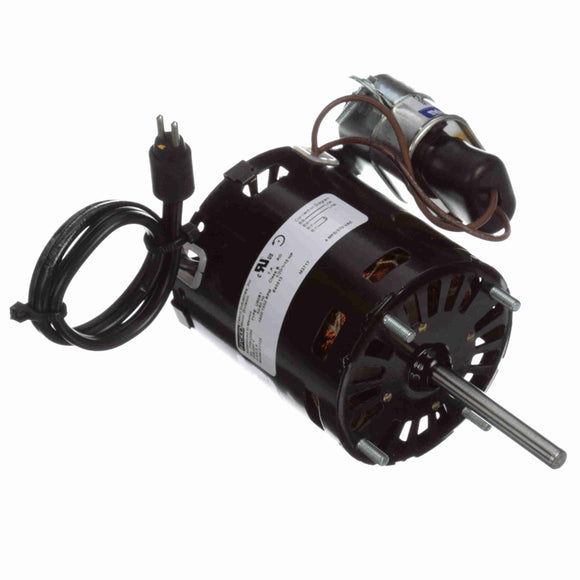

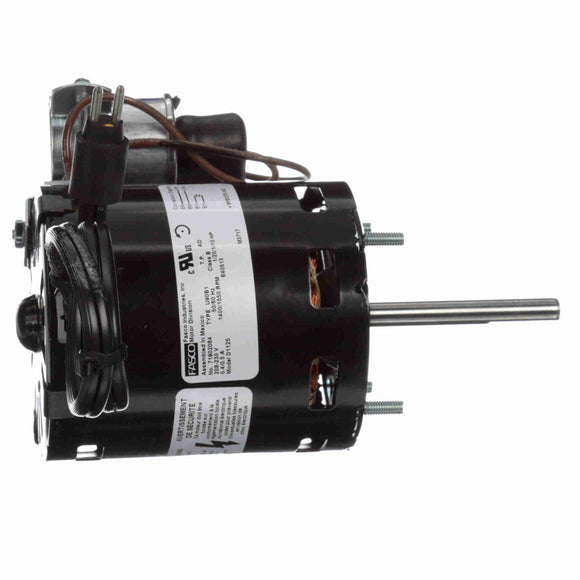

Features
- OEM Direct Replacement Motor
- 3.3" Diameter
- Permanent Split Capacitor
- Thermally Protected
- Open Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 5/16" Diameter Shaft with Flat
- 13" Leads with Molded Plug
- Extended Studs Shaft End
General Specifications
| UPC: | 818508021911 | Weight: | 4 LB |
| Packaged Length: | 8 IN | Packaged Width: | 5.63 IN |
| Packaged Height: | 5 IN |
Nameplate Specifications
| Output HP: | 1/20-1/15 Hp | Output KW: | 0.04 kW |
| Frequency: | 60 Hz | Voltage: | 208-230 V |
| Current: | 0.40/0.50 A | Speed: | 1400/1550 rpm |
| Service Factor: | 1 | Phase: | 1 |
| Duty: | Air Over | Insulation Class: | B |
| Frame: | 3.3 | Enclosure: | Open Air Over |
| Thermal Protection: | Thermally Protected | Ambient Temperature: | 40 °C |
| UL: | Recognized | CSA: | N |
| CE: | N |
Technical Specifications
| Electrical Type: | Permanent Split Capacitor | Starting Method: | Across The Line |
| Poles: | 4 | Rotation: | Counterclockwise Shaft End |
| Mounting: | Extended Studs | Drive End Bearing: | Sleeve |
| Opp Drive End Bearing: | Sleeve | Frame Material: | Steel |
| Shaft Type: | Flat | Overall Length: | 6.75 in |
| Frame Length: | 3.62 in | Shaft Diameter: | 0.313 in |
| Shaft Extension: | 2.64 in |
