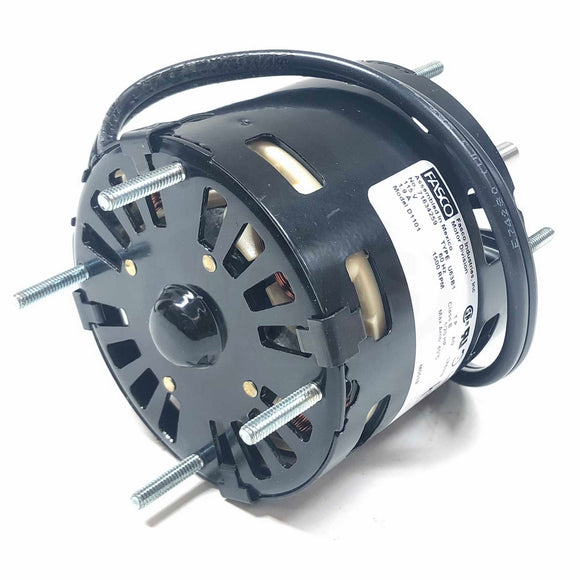

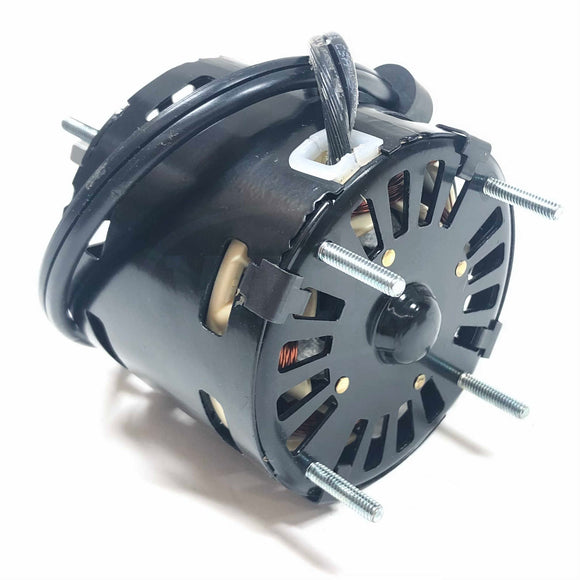

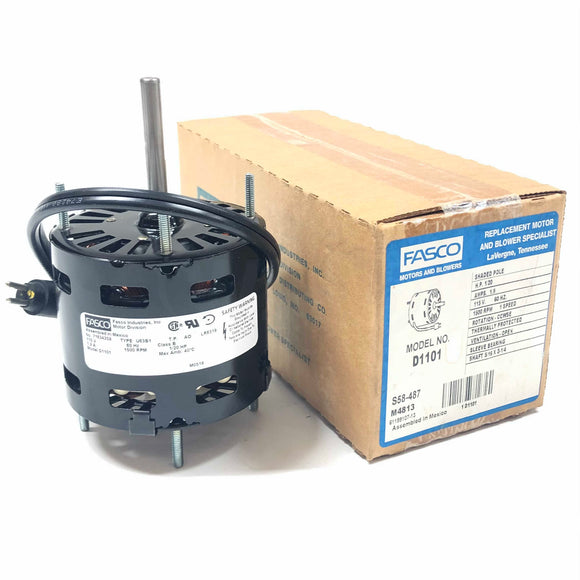

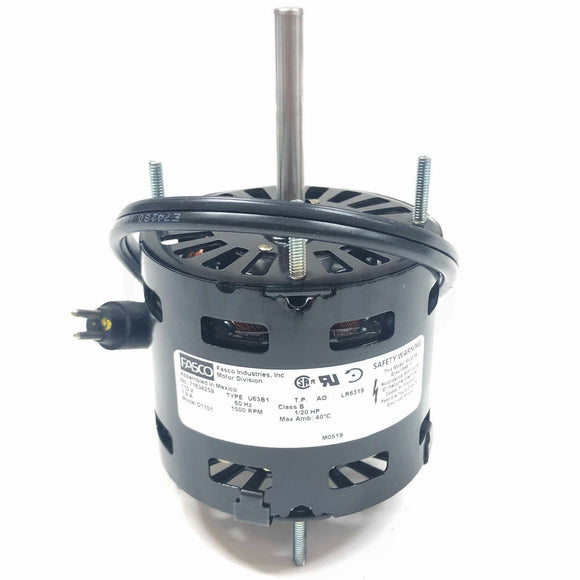

Features
- OEM Direct Replacement Motor
- 3.3" Diameter
- Shaded Pole
- Thermally Protected
- Open Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 5/16" Diameter Shaft with Flat
- 14" Leads with Quick Connect Molded Plug
- Extended Studs Shaft End and Opposite Shaft End
General Specifications
| UPC: | 815585028178 | Weight: | 3 LB |
| Packaged Length: | 8 IN | Packaged Width: | 3.38 IN |
| Packaged Height: | 3.38 IN |
Nameplate Specifications
| Output HP: | 1/20 Hp | Output KW: | 0.04 kW |
| Frequency: | 60 Hz | Voltage: | 115 V |
| Current: | 1.90 A | Speed: | 1500 rpm |
| Service Factor: | 1 | Phase: | 1 |
| Duty: | Air Over | Insulation Class: | B |
| Frame: | 3.3 | Enclosure: | Open Air Over |
| Thermal Protection: | Thermally Protected | Ambient Temperature: | 40 °C |
| UL: | Recognized | CSA: | Y |
| CE: | N |
Technical Specifications
| Electrical Type: | Shaded Pole | Starting Method: | Across The Line |
| Poles: | 4 | Rotation: | Counterclockwise Shaft End |
| Mounting: | Extended Studs | Drive End Bearing: | Sleeve |
| Opp Drive End Bearing: | Sleeve | Frame Material: | Steel |
| Shaft Type: | Flat | Overall Length: | 5.33 in |
| Frame Length: | 2.57 in | Shaft Diameter: | 0.313 in |
| Shaft Extension: | 2.25 in |
