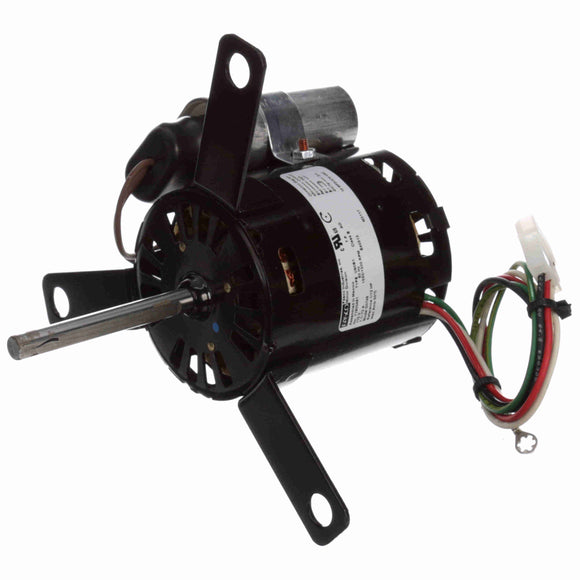

Features
- OEM Direct Replacement Motor
- 3.3" Diameter
- Permanent Split Capacitor
- Thermally Protected
- Open Air Over
- Class B Insulation, 50°C Ambient
- Sleeve Bearing
- 3/8" Diameter Shaft with Flat
- 12" Leads with Plug Assembly
- Lug Mounting
General Specifications
| UPC: | 815585027393 | Weight: | 5 LB |
| Packaged Length: | 8.13 IN | Packaged Width: | 8.13 IN |
| Packaged Height: | 8.38 IN |
Nameplate Specifications
| Output HP: | 1/12 Hp | Output KW: | 0.06 kW |
| Frequency: | 60 Hz | Voltage: | 115 V |
| Current: | 1.10/0.73 A | Speed: | 1550/1300 rpm |
| Service Factor: | 1 | Phase: | 1 |
| Duty: | Air Over | Insulation Class: | B |
| Frame: | 3.3 | Enclosure: | Open Air Over |
| Thermal Protection: | Thermally Protected | Ambient Temperature: | 50 °C |
| UL: | Recognized | CSA: | N |
| CE: | N |
Technical Specifications
| Electrical Type: | Permanent Split Capacitor | Starting Method: | Across The Line |
| Poles: | 4 | Rotation: | Clockwise Shaft End |
| Mounting: | Lug | Drive End Bearing: | Sleeve |
| Opp Drive End Bearing: | Sleeve | Frame Material: | Steel |
| Shaft Type: | Flat | Overall Length: | 7.38 in |
| Frame Length: | 3.93 in | Shaft Diameter: | 0.375 in |
| Shaft Extension: | 3.45 in |
