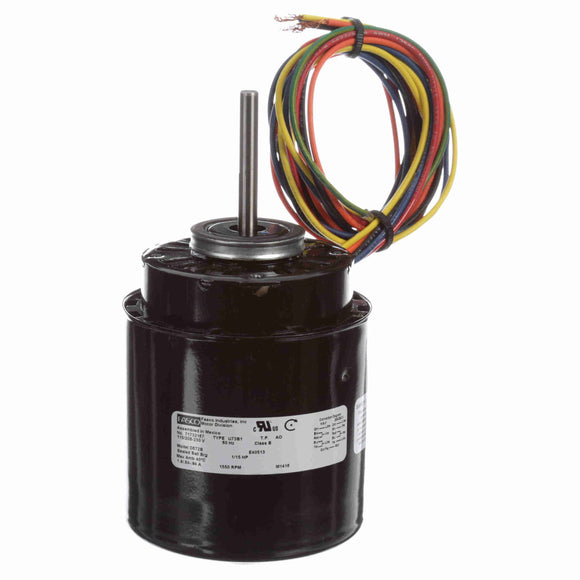

Features
- General Purpose Motor
- 3.3" Diameter
- Shaded Pole
- Thermally Protected
- Open Shaft End and Lead End End-Frame, Enclosed Shell, Fan Cooled, Air Over
- Class B Insulation, 40 C Ambient
- Ball Bearing
- 5/16" Diameter Shaft with Flat
- 35" Leads
- Resilient Mounting Ring Shaft End and Opposite Shaft End
General Specifications
| UPC: | 818508021171 | Weight: | 5.00 LB |
| Packaged Length: | 8 IN | Packaged Width: | 3.94 IN |
| Packaged Height: | 3.94 IN |
Nameplate Specifications
| Output HP: | 1/15 Hp | Output KW: | 0.05 kW |
| Frequency: | 60 Hz | Voltage: | 115/208-230 V |
| Current: | 1.90/0.84-0.94 A | Speed: | 1550 rpm |
| Service Factor: | 1 | Phase: | 1 |
| Duty: | Air Over | Insulation Class: | B |
| Frame: | 3.3 | Enclosure: | Open Air Over |
| Thermal Protection: | Thermally Protected | Ambient Temperature: | 40 C |
| UL: | Recognized | CSA: | N |
| CE: | N | Number of Speeds: | 1 |
Technical Specifications
| Electrical Type: | Shaded Pole | Starting Method: | Across The Line |
| Poles: | 4 | Rotation: | Clockwise Shaft End |
| Mounting: | Extended Studs | Drive End Bearing: | Ball |
| Opp Drive End Bearing: | Ball | Frame Material: | Steel |
| Shaft Type: | Flat | Overall Length: | 15.86 in |
| Frame Length: | 3.07 in | Shaft Diameter: | 0.312 in |
| Shaft Extension: | 2.55 in |
