Features
Features

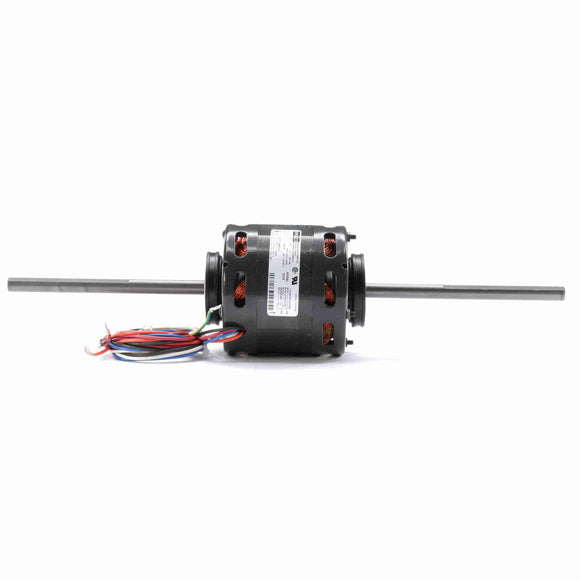

- Fan Coil - Air-Conditioning - Heating Unit Motor
- 4.4" Diameter
- Shaded Pole
- Thermally Protected
- Open Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 1/2" Diameter Double Shaft with Flat
- 30" Leads
- Resilient Mounting Rings
General Specifications
General Specifications
|
Model : |
Catalog No : |
D338 | |
|
Part Description : |
71080071.MOTOR.4.40" DIA..1/6 HP.4 SPD. |
Category : |
Fan Coil / Room Air Conditioner |
|
Stock : |
No |
Nameplate Specifications
Nameplate Specifications
|
Output HP : |
1/6-1/10-1/12-1/15 HP |
Output KW : |
0.13 kW |
|
Frequency : |
60 Hz |
Voltage : |
115 V |
|
Current : |
5.4-3.2-2.5-2.1 A |
Speed : |
1550 RPM |
|
Service Factor : |
1 |
Phase : |
1 |
|
Duty : |
Air Over |
Insulation Class : |
A |
|
Frame : |
4.4 |
Enclosure : |
Open Air Over |
|
Overload Protector : |
Thermally Protected |
Ambient Temperature : |
40 °C |
|
UL : |
Recognized |
CSA : |
Y |
|
CE : |
N |
Technical Specifications
Technical Specifications
|
Electrical Type : |
Shaded Pole |
Starting Method : |
Across The Line |
|
Poles : |
4 |
Rotation : |
Reversible |
|
Mounting : |
Resilient Rings |
Drive End Bearing : |
Sleeve |
|
Opp Drive End Bearing : |
Sleeve |
Frame Material : |
Na |
|
Shaft Type : |
Flat |
Overall Length : |
18.63 in |
|
Shaft Diameter : |
0.500 in |
Shaft Extension : |
7.25 in |
|
UPC : |
815585029649 |
Weight : |
10.00 LB |
