Features
Features

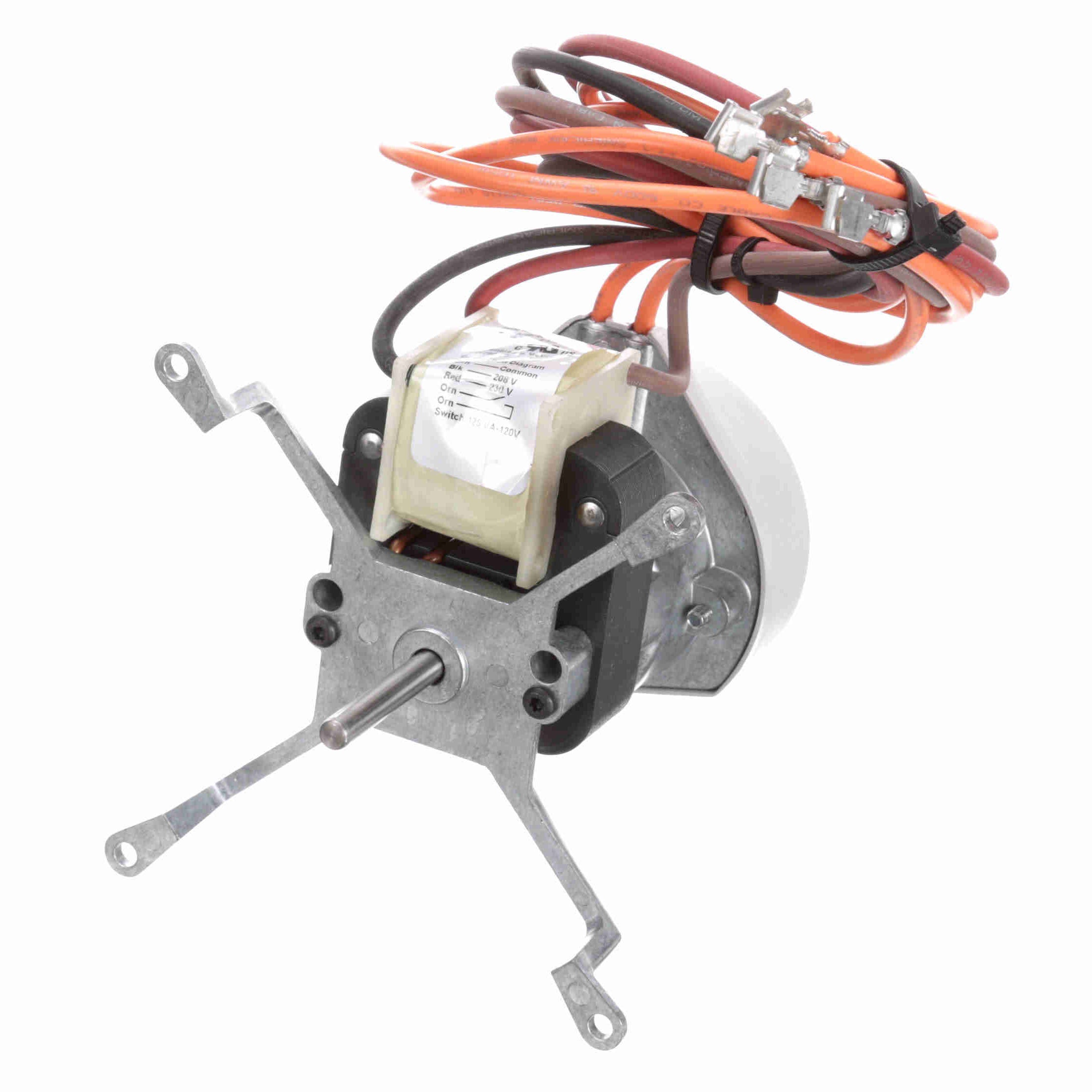

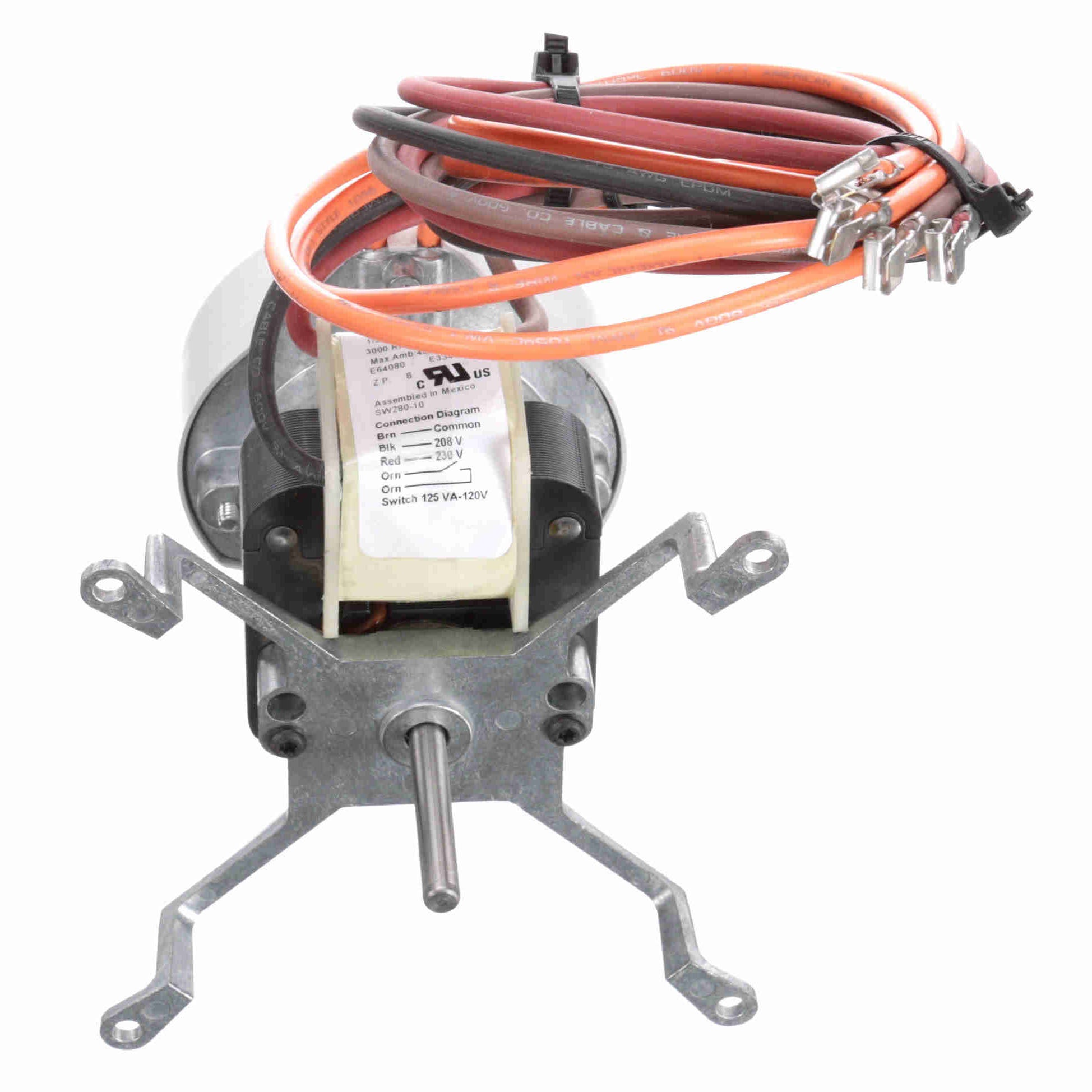

- OEM Direct Replacement Motor
- C-Frame
- Shaded Pole
- Thermally Protected, One-Shot Fuse
- Open Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 1/4" Diameter Shaft
- 30"/28" Leads with Flag Terminal
- Flex Mount
General Specifications
General Specifications
| Model : | Catalog No : | K628 | |
| Part Description : | 71581033.C-FRAME..1/200 HP.1 SPD. | Category : | C-Frame / Skeleton |
| Stock : | No |
Nameplate Specifications
Nameplate Specifications
| Output HP : | 1/200 HP | Output KW : | 0.01 kW |
| Frequency : | 60 Hz | Voltage : | 208/230 V |
| Current : | .25 A | Speed : | 3000 RPM |
| Service Factor : | 1 | Phase : | 1 |
| Duty : | Air Over | Insulation Class : | B |
| Frame : | C-FRAME | Enclosure : | Open |
| Overload Protector : | Impedence | Ambient Temperature : | 40 °C |
| UL : | Recognized | CSA : | N |
| CE : | N |
Technical Specifications
Technical Specifications
| Electrical Type : | Shaded Pole | Starting Method : | Across The Line |
| Poles : | 2 | Rotation : | Clockwise |
| Mounting : | Bracket | Drive End Bearing : | Sleeve |
| Opp Drive End Bearing : | Sleeve | Frame Material : | Na |
| Shaft Type : | Round | Overall Length : | 5.46 in |
| Shaft Diameter : | 0.250 in | Shaft Extension : | 1.50 in |
| UPC : | 818508021713 | Weight : | 3.00 LB |
Speed & Load Characteristics
