Features
Features
- Heating - Refrigeration - Ventilating Motor
- C-Frame
- Shaded Pole
- Thermally Protected, One-Shot Fuse
- Open Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- .2178" Diameter Shaft with Flat
- 13"/11" Leads with Molded Plug
- Extended Studs Shaft End
General Specifications
General Specifications

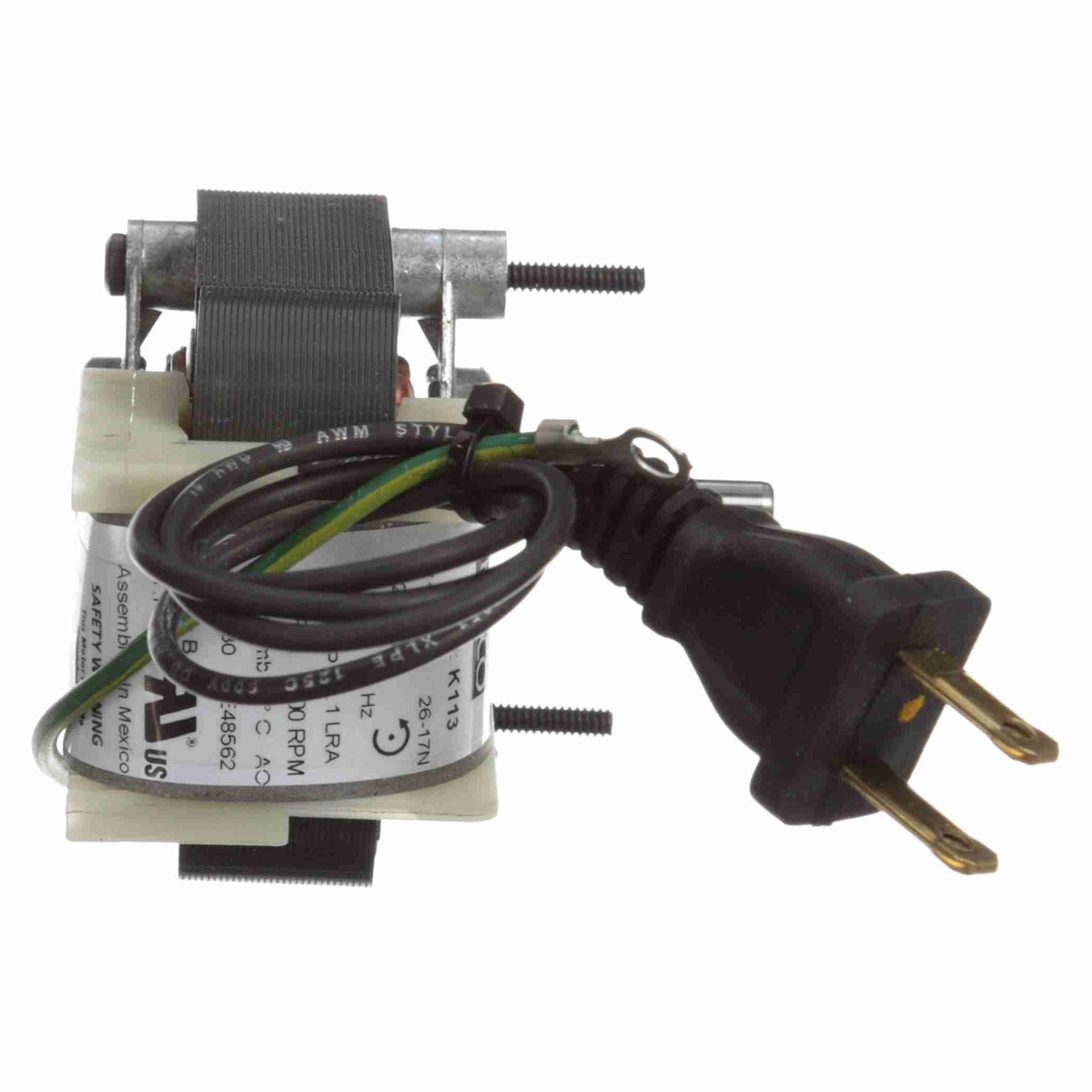

| Model : | Catalog No : | K113 | |
| Part Description : | 71581191.C-FRAME..1/70 HP.1 SPD. | Category : | C-Frame / Skeleton |
| Stock : | No |
Nameplate Specifications
Nameplate Specifications
| Output HP : | 1/70 HP | Output KW : | 0.01 kW |
| Frequency : | 60 Hz | Voltage : | 120 V |
| Current : | .90 A | Speed : | 3000 RPM |
| Service Factor : | 1 | Phase : | 1 |
| Duty : | Air Over | Insulation Class : | B |
| Frame : | C-FRAME | Enclosure : | Open |
| Overload Protector : | Thermally Protected | Ambient Temperature : | 40 °C |
| UL : | Recognized | CSA : | N |
| CE : | N |
Technical Specifications
Nameplate Specifications
| Output HP : | 1/70 HP | Output KW : | 0.01 kW |
| Frequency : | 60 Hz | Voltage : | 120 V |
| Current : | .90 A | Speed : | 3000 RPM |
| Service Factor : | 1 | Phase : | 1 |
| Duty : | Air Over | Insulation Class : | B |
| Frame : | C-FRAME | Enclosure : | Open |
| Overload Protector : | Thermally Protected | Ambient Temperature : | 40 °C |
| UL : | Recognized | CSA : | N |
| CE : | N |
Speed & Load Characteristics
