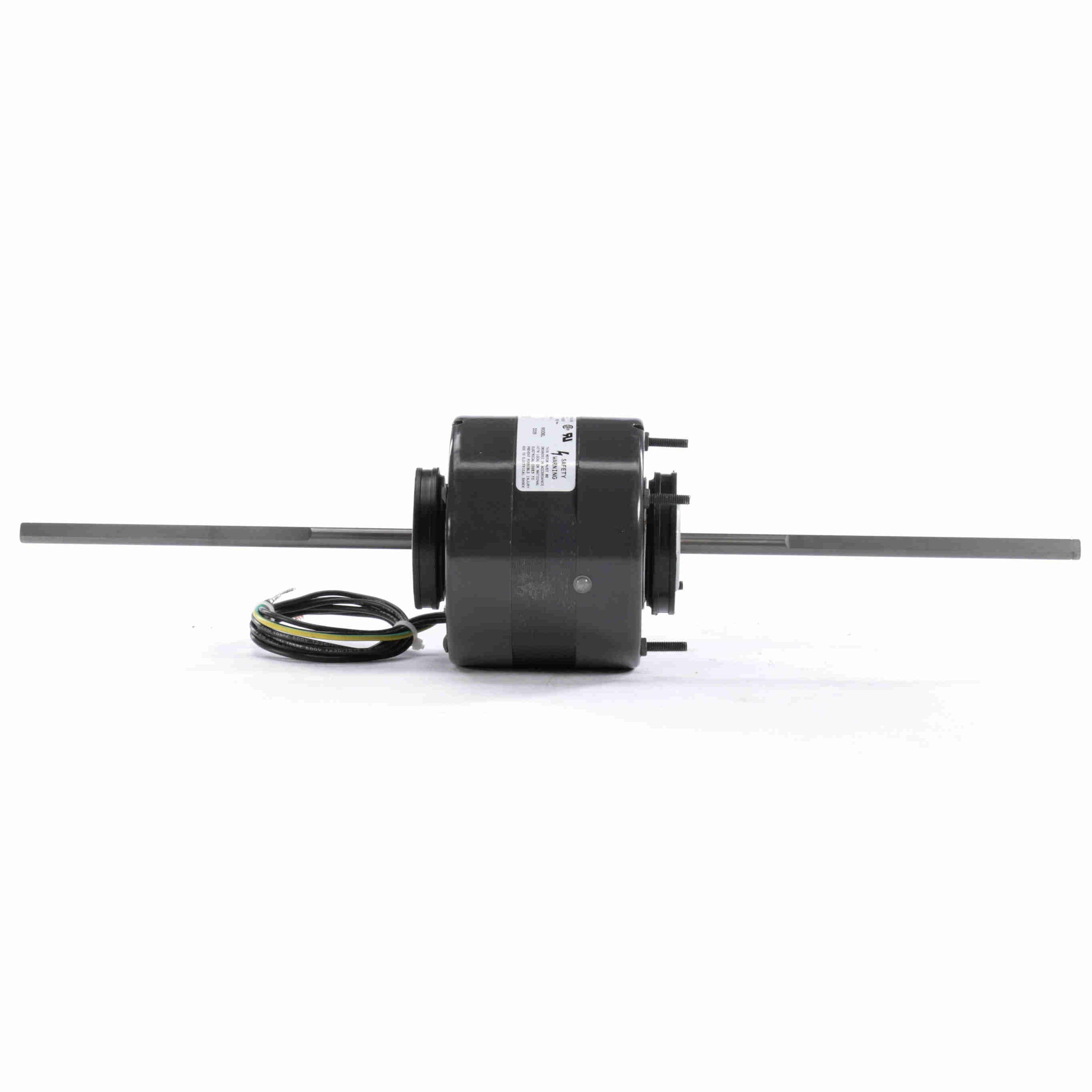

Features
- Fan Coil - Air-Conditioning - Heating Unit Motor
- 4.4" Diameter
- Shaded Pole
- Thermally Protected
- Open Lead End and Opposite Lead End End-Frame, Enclosed Shell, Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 3/8" Diameter Double Shaft with Flat
- 27" Leads
- Extended Studs Opposite Shaft End, Resilient Mounting Rings
General Specifications
| UPC: | 815585029540 | Weight: | 7.00 LB |
| Packaged Length: | 4.38 IN | Packaged Width: | 4.38 IN |
| Packaged Height: | 20 IN |
Nameplate Specifications
| Output HP: | 1/15 Hp | Output KW: | 0.05 kW |
| Frequency: | 60 Hz | Voltage: | 115 V |
| Current: | 2.5 A | Speed: | 1550 rpm |
| Service Factor: | 1 | Phase: | 1 |
| Duty: | Air Over | Insulation Class: | A |
| Frame: | 4.4 | Enclosure: | Open Air Over |
| Thermal Protection: | Thermally Protected | Ambient Temperature: | 40 °C |
| UL: | Recognized | CSA: | Y |
| CE: | N |
Technical Specifications
| Electrical Type: | Shaded Pole | Starting Method: | Across The Line |
| Poles: | 4 | Rotation: | Reversible |
| Mounting: | Resilient Rings | Drive End Bearing: | Sleeve |
| Opp Drive End Bearing: | Sleeve | Frame Material: | Na |
| Shaft Type: | Flat | Overall Length: | 18.38 in |
| Shaft Diameter: | 0.375 in | Shaft Extension: | 7.5 in |
Speed & Load Characteristics
