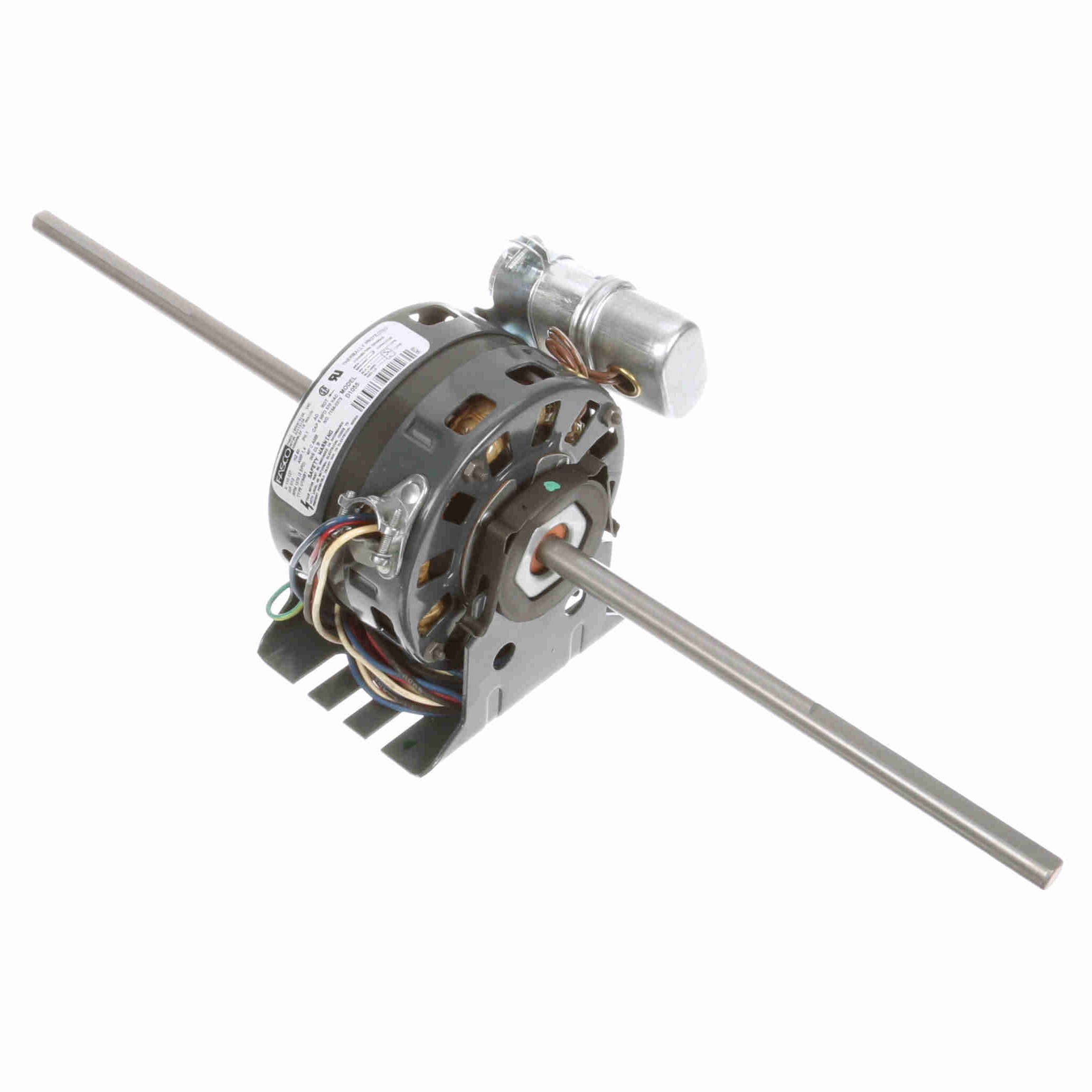

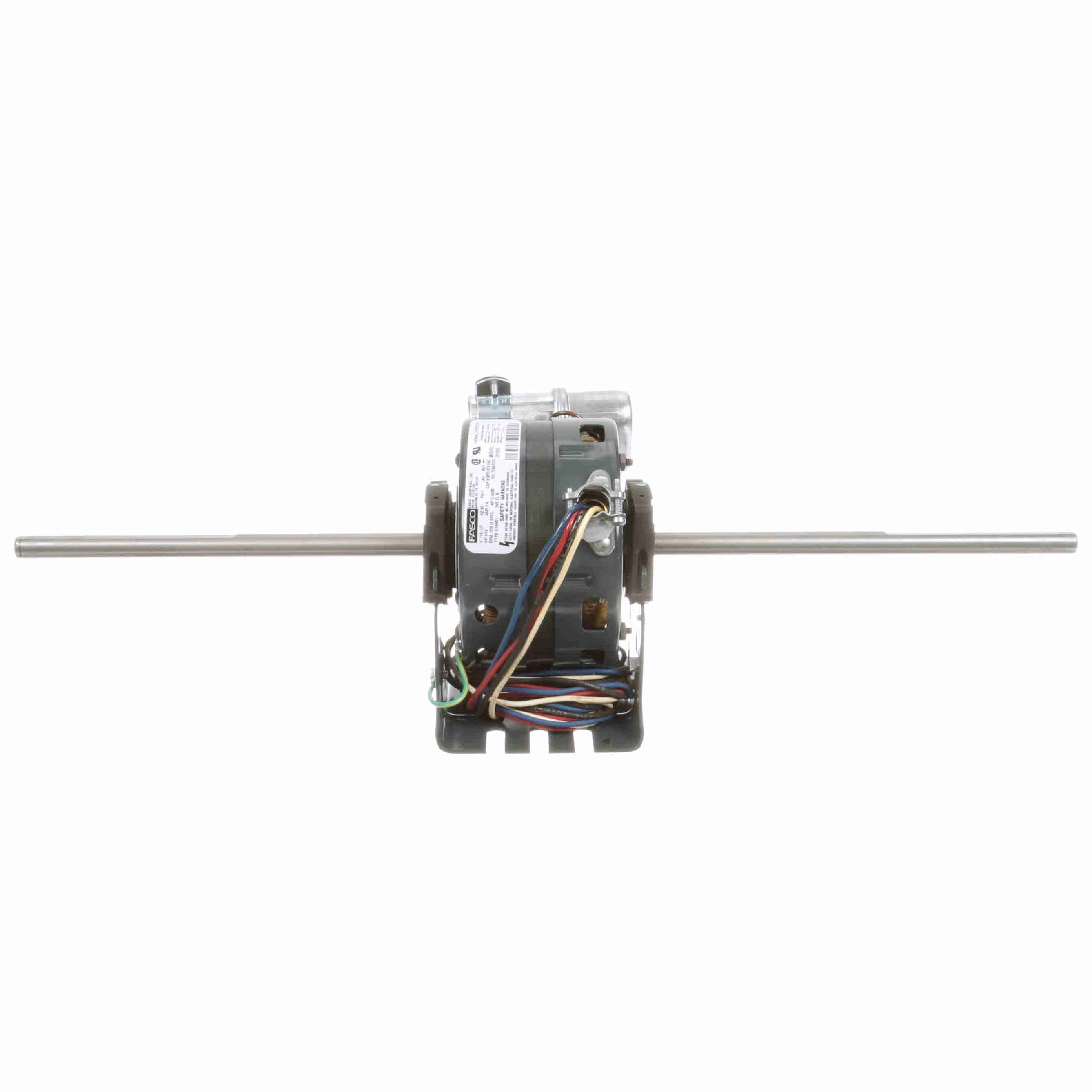

Features
- OEM Direct Replacement Motor
- 5" Diameter - 42 Frame
- Permanent Split Capacitor
- Thermally Protected
- Open Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 1/2" Diameter Shaft with Flat
- 71" Leads
- Resilient Base
General Specifications
| UPC: | 815585027805 | Weight: | 10.00 LB |
| Packaged Length: | 7.38 IN | Packaged Width: | 6.13 IN |
| Packaged Height: | 25.75 IN |
Nameplate Specifications
| Output HP: | 1/12 Hp | Output KW: | 0.06 kW |
| Frequency: | 60 Hz | Voltage: | 115-127 V |
| Current: | 1.4 A | Speed: | 1375 rpm |
| Service Factor: | 1 | Phase: | 1 |
| Duty: | Continuous | Insulation Class: | B |
| Frame: | 42 | Enclosure: | Open Air Over |
| Thermal Protection: | Automatic | Ambient Temperature: | 40 °C |
| UL: | Recognized | CSA: | Y |
| CE: | N |
Technical Specifications
| Electrical Type: | Permanent Split Capacitor | Starting Method: | Across The Line |
| Poles: | 4 | Rotation: | Clockwise Shaft End |
| Mounting: | Resilient Base | Drive End Bearing: | Sleeve |
| Opp Drive End Bearing: | Sleeve | Frame Material: | Na |
| Shaft Type: | Flat | Overall Length: | 21.77 in |
| Shaft Diameter: | 0.500 in | Shaft Extension: | 9.125 in |
