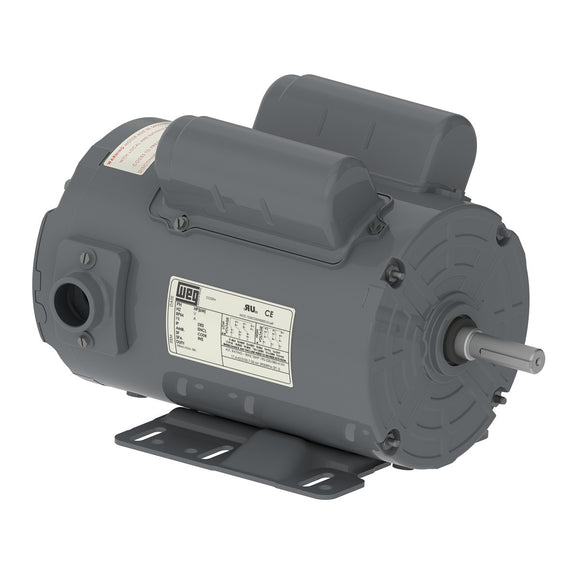

00336AS1RAF145TZ-S WEG 3HP Aeration Fan Electric Motor, 3600RPM

$728.02 USD $818.00 USD Save $89.98 USD

Shipping calculated at checkout

WEG Electric Corporation SKU: 00336AS1RAF145TZ-S Barcode: 7909265737948

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Electric Motors

Frame 143/5T
Output 3 HP (2.2 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3490 rpm
Slip 3.06 %
Rated voltage 208-230 V
Rated current 14.0-12.7 A
L. R. Amperes 112-102 A
LRC 8.0x(Code J)
No load current 0.000-4.00 A
Rated torque 4.45 ft.lb
Locked rotor torque 210 %
Breakdown torque 250 %
Locked rotor time 10s (cold) 6s (hot)
Design L
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC410 - TEAO
Mounting F-1
Rotation¹ Both (CW and CCW)
Approx. weight³ 50.3 lb
(1) Looking the motor from the shaft end.; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
76.0  79.0  80.0

Power factor

50% 75% 100%
0.86  0.92  0.94

Features

Frame Material Rolled Steel
Impregnation Method Dip and Bake Polyester
Main terminal box hole NPT 3/4"
Terminal Block Without
Drain Rubber, automatic
Shaft Material SAE 1040/45 Carbon Steel
Painting

Grounding Lugs Single
Fan Cover material Without Fan Cover
Tropicalized Painting Without
Fan material Without fan
Bearing cap Yes- Bearing Cap
Bolt Material Carbon Steel
Balancing Method 1/2 Key
Drip Cover Without
Resilient Base Without

 Loading...

Bearing details

  Drive End Non Drive End
Bearing type 6205 ZZ   6202 ZZ
Sealing V'Ring  V'Ring
Lubrication interval -  -
Lubricant amount -  -
Grease Type Mobil Polyrex EM

Foundation loads

Max. traction Max. compression
71 lb  122 lb
