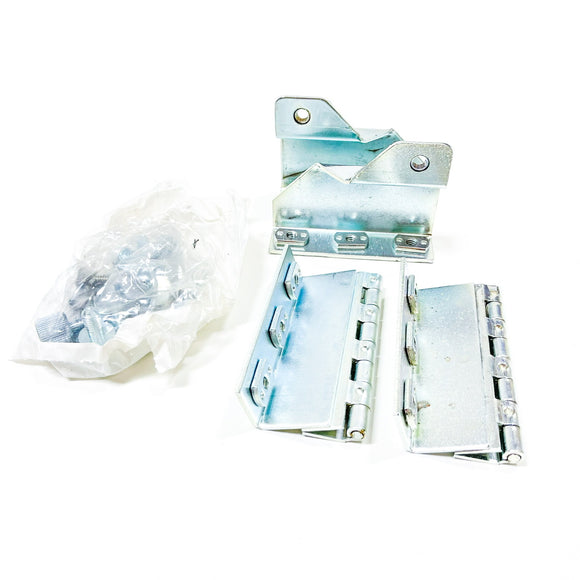

ANADFK Hoffman Nema Swing Out Panel Kit

Swing-Out Panel Kit for Wall-Mount Enclosure, Steel
External screws are stainless steel
Internal components are plated steel
All mounting hardware and instructions are provided
Both Kits maintain UL Type 4 rating when properly installed in a Hoffman enclosure
Swing-Out Panel Kits do not fit single-door disconnect enclosures

PRODUCT ATTRIBUTES
Material: Mild Steel
Max Load: 100 lb / 45.4 kg
Use In: - One-door Type 4, 4X, 12 and 13 enclosures where A x B is 12.00 x 12.00 in. (305 x 305 mm) or larger - HCLO Type 3R enclosures where A x B is 16.00 x 16.00 in. (406 x 406 mm) or larger - HCR Type 3R enclosures where A x B is 16.00 x 12.00 (406 x 305 mm) or larger - Type 1 enclosures where A x B is 42.00 x 30.00 in. (1067 x 762 mm) or larger
Color: Unpainted
Finish: Zinc Plated
Thickness: 16 / 1.52 mm
Weight: 2.4 lb
