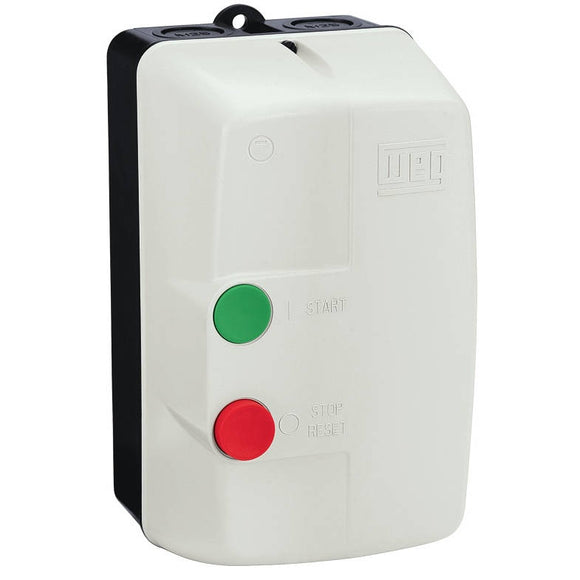

PESWS-12V24AX-RM31 WEG Enclosed Motor Starter

WEG enclosed starters series were designed to meet the requirements and flexibility frequently demanded in industrial applications. Featuring components that meet IEC design standards and UL horsepower ratings, WEG enclosed starters are UL508A approved and cULus certified.

WEG offers non-reversing and non-combination magnetic starters up to 75HP at 460Vac (105A). Featuring components that meet IEC design standards and UL horsepower ratings, incorporating WEG contactors and overload relays, the magnetic starters are ideal to protect and operate motors, ensuring smooth operation year-after year.

Ready to use Enclosed Full Voltage magnetic starters are the most commonly used devices to switch AC motor loads.

WEG's non-reversing non-combination starter consist of a contactor and a bimetallic overload relay assembled together inside a NEMA type 1 enclosure. Two optional pilot devices are available factory-mounted. Field Kit modifications are also available as accessories.

• High horsepower ratings in four compact sizes


• Fast acceleration and high initial torque


• Bimetallic Overload Relays – class 10


• Adjustable trip current


• Ambient temperature compensated


• Phase-loss sensitivity protection


• Selectable Manual or Automatic RESET


• Electrically isolated NO-NC auxiliary contacts


• Easy to install and setup

• Pumps


• Kneading and mixing machines


• Cutting and sawing machines


• Material handling equipment


• Blowers


• Cranes


• Machining tools


• Agitators


• Pressing machines
