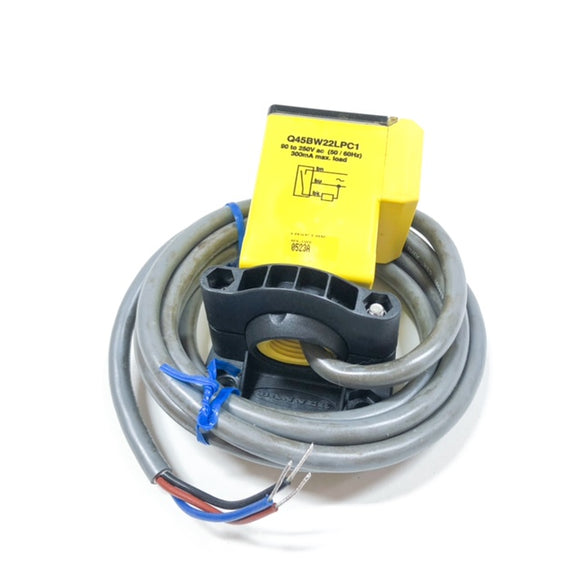

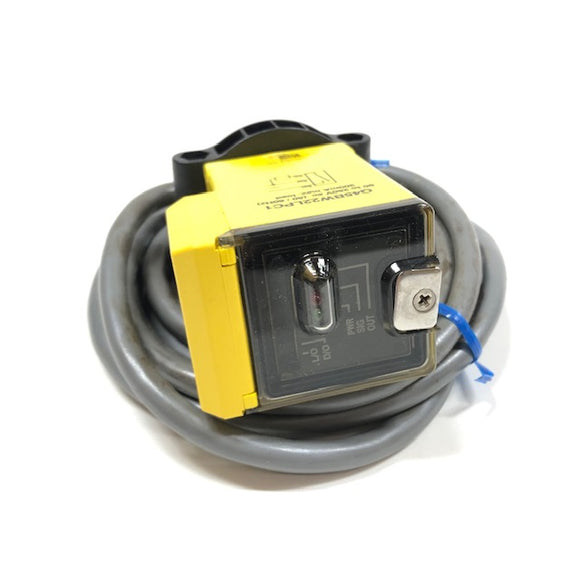

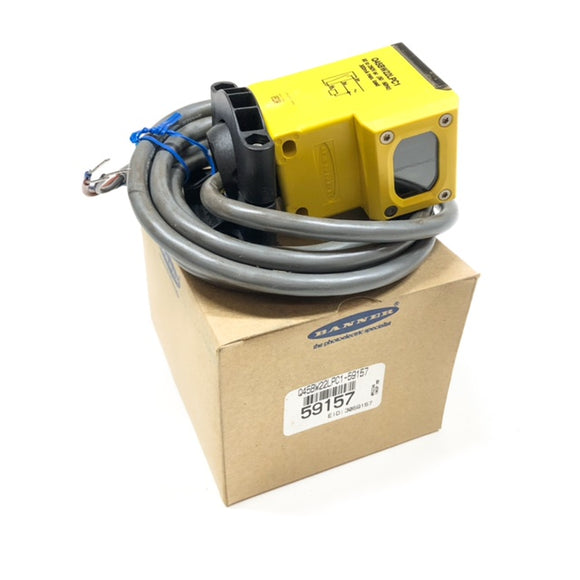

Q45BW22LPC1-59157 Banner Polarized Photo-Electric Sensor

Specifications
Primary brandBanner Engineering
Main functionSensor (Photo-electric)
Product series / family nameQ series
Sub-range nameQ45BW22 series
FunctionsPolarized photo-electric sensor
Designretro-reflective mode
potentiometer adjustment
bracket assembly installed (glued)
Supply voltage (AC)600Vac
Sensing distance6m
Displaygreen LED (power ON)
red LED (signal)
amber LED (output state)
Light ColorVisible red
Wavelength680 nm
ShapeRectangular
Connection typePre-wired with 6.5ft / 2m cable terminated with bare end flying leads
Mounting modeM30 threaded mount
Operating modeLight-ON
Dark-ON
Digital outputs1 x digital output (Solid-state AC output; SPST contact type)
Response time2ms / 0.002 s
Degree of protectionIP67
NEMA 6P
MaterialThermoplastic housing
Acrylic lns.
Ambient air temperature for operation-40...+70 °C
Order code / Manufacturer SKU59157
Manufacturer product statusCommercialized
Equivalent to Q45BW22LPC159157
