Characteristics
| range of product |
Harmony 9001K
|
|
| product or component type |

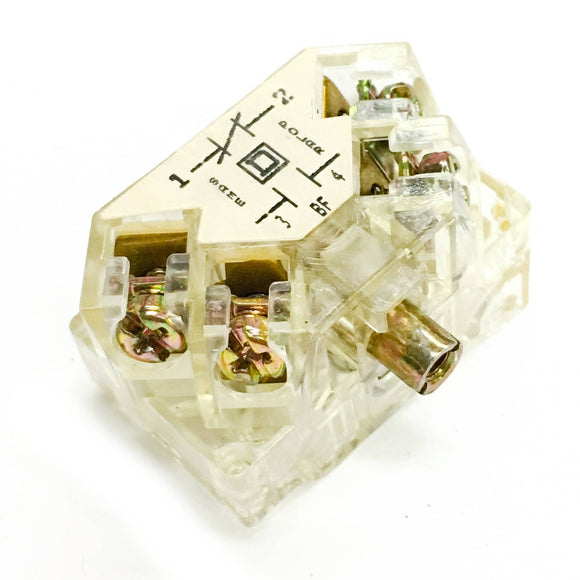

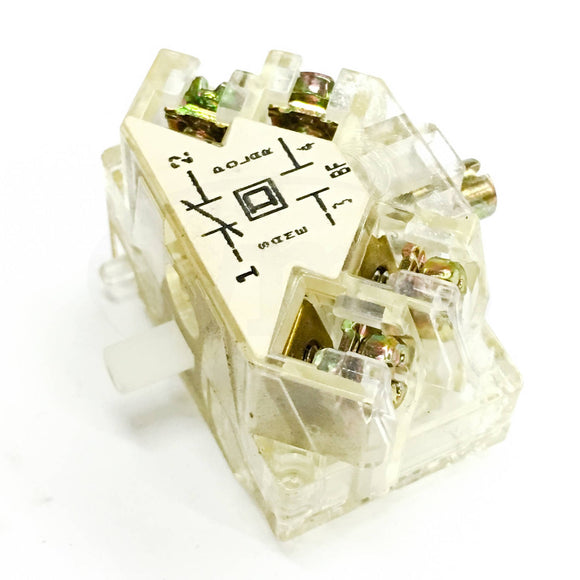

Contact block with protected terminals
|
|
| device short name |
9001K
|
|
| product weight |
0.06 lb(US) (0.027 kg)
|
|
| contacts type and composition |
1 C/O
|
|
| contact operation |
Standard
|
|
| positive opening |
Without
|
|
| connections - terminals |
Screw clamp terminals (1 x 0.22...2 x 1.5 mm²) conforming to IEC 60947-1
|
|
| tightening torque |
7.08 lbf.in (0.8 N.m) conforming to IEC 60947-1
|
|
| shape of screw head |
Cross slotted head
|
|
| contacts material |
Silver alloy contacts
|
|
| short-circuit protection |
10 A cartridge fuse conforming to IEC 60947-5-1
|
|
| [Ith] conventional free air thermal current |
10 A
|
|
| [Ui] rated insulation voltage |
250 V (degree of pollution: 3) conforming to IEC 60947-1
|
|
| [Uimp] rated impulse withstand voltage |
2.5 kV conforming to IEC 60947-1
|
|
| [Ie] rated operational current |
3 A at 240 V AC-15, A600-Q600 conforming to NEMA
0.55 A at 125 V DC-13, A600-Q600 conforming to NEMA |
|
| [Icm] rated short-circuit making capacity |
<= 12 kA at 600 V AC-15, 7200 VA
<= 15 kA at 480 V AC-15, 7200 VA <= 30 kA at 240 V AC-15, 7200 VA <= 60 kA at 120 V AC-15, 7200 VA <= 0.1 kA at 600 V DC-13, 7200 VA <= 0.27 kA at 250 V DC-13, 7200 VA <= 0.55 kA at 125 V DC-13 |
|
| rated breaking capacity |
<= 3 kA at 240 V AC-15, 720 VA
<= 6 kA at 120 V AC-15, 720 VA <= 0.1 kA at 600 V DC-13 <= 0.27 kA at 250 V DC-13 <= 0.55 kA at 125 V DC-13 <= 1.2 kA at 600 V AC-15, 720 VA <= 1.5 kA at 480 V AC-15, 720 VA |
|
| protective treatment |
TC
|
|
| ambient air temperature for storage |
-40...158 °F (-40...70 °C)
|
|
| ambient air temperature for operation |
-13...158 °F (-25...70 °C)
|
|
| electrical shock protection class |
Class II conforming to IEC 61140
|
|
| IP degree of protection |
IP20 conforming to IEC 60529
|
|
| standards |
JIS C 4520
EN/IEC 60947-5-1 CSA C22.2 No 14 EN/IEC 60947-1 JIS C 852 EN/IEC 60947-5-4 UL 508 |
|
| product certifications |
NEMA
UL 508 |
|
| vibration resistance |
7 gn (f = 2...500 Hz) conforming to IEC 60068-2-6
|
|
| shock resistance |
50 gn conforming to IEC 60068-2-27
|
|
| Category |
21434 - 9001 KA CONTACT BLOCKS
|
|
| Discount Schedule |
CS1
|
|
| GTIN |
00785901880004
|
|
| Nbr. of units in pkg. |
1
|
|
| Package weight(Lbs) |
6.00
|
|
| Returnability |
Y
|
|
| Country of origin |
MX
|
|
| RoHS (date code: YYWW) |
Compliant - since 0921
|
|
| REACh |
Reference not containing SVHC above the threshold
|
|
| Warranty period |
18 months
|
|
