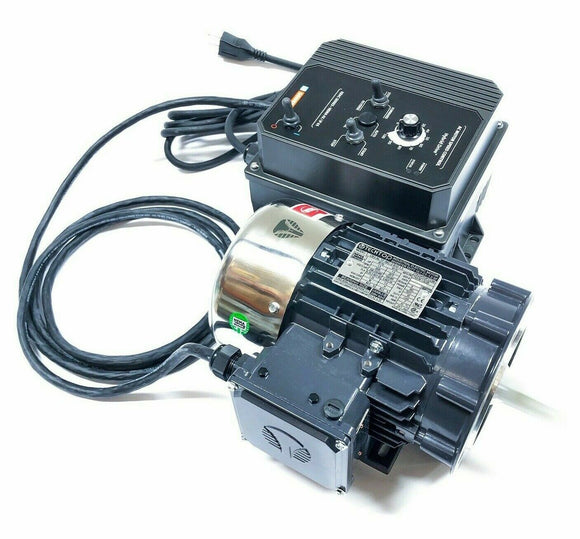

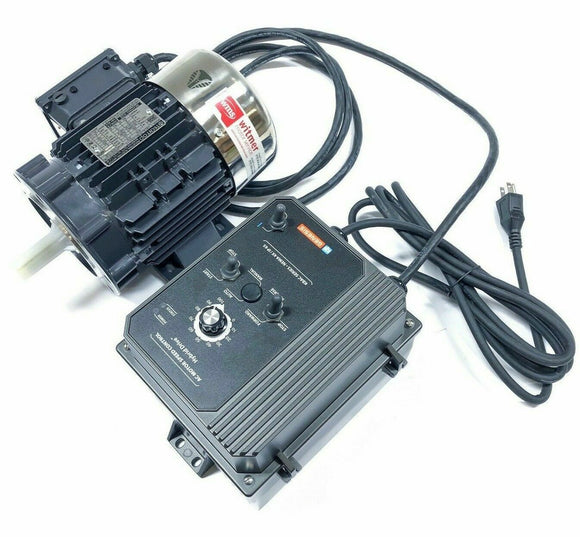

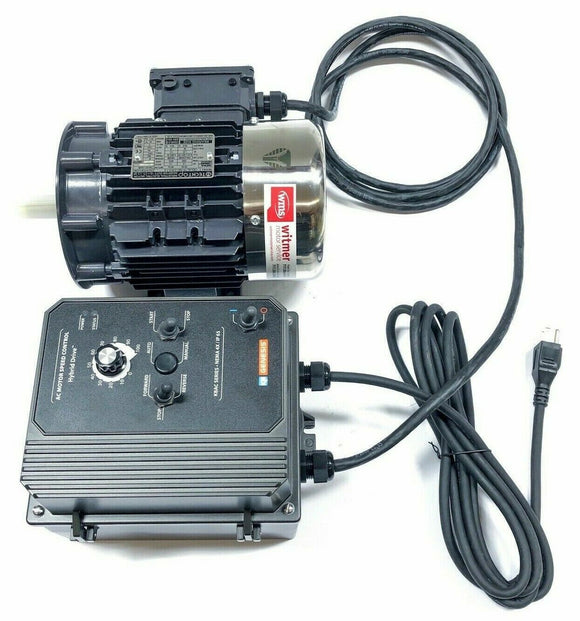

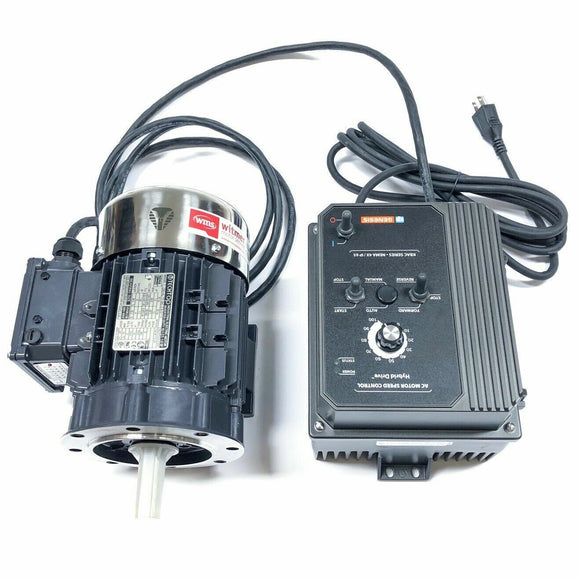

This package includes a complete Motor & Drive Package for use with Belt Grinders. The drive and motor are totally enclosed (TEFC, IP55 rated) to protect against dust. This package includes a 6' Single Phase Power cord. Motor is a 3HP 3600RPM, 3-Phase Electric Motor, Drive is wired for 230VAC Input to allow a full 3HP motor output. Detailed specifications are below:
Motor:
| Brand | Techtop |
|---|---|
| Horsepower | 3 HP |
| Poles | 2 Pole |
| Sync Speed | 3600 RPM |
| Frame | 56C |
| Enclosure | TEFC IP 55 |
| Voltage | 208-230 / 460 Volt Wired for 230VAC |
| Phase | 3 Phase |
| C-Face | Yes |
| Rigid Base | Yes |
| Model Number | CB3-AL-TF-56HC-2-B-D-3 |
Drive:
| Brand | KB Electronics, Inc. |
|---|---|
| Part Number | 10001 |
| Model Number | KBAC-29 |
| Maximum Power | 3 HP (208-230V) 2.2 kW (208-230V) |
| Input Voltage | 208-230 Volt Wired for 230VAC |
| Input Frequency | 50/60 Hz |
| Input Phase | Single Phase |
| Output Voltage Range | 0-208/230 VAC |
| Max Load Current | 9.0 Amps/Phase @ 230 Volts |
| Net Weight | 13 lbs |
| Dimensions | 9.8" X 7.6" X 7.3" |
| Enclosure Rating | NEMA 4X, IP65 |
| Enclosure Color | Gray |
| UPC | 024822100014 |
Includes Power Cord, Motor, Drive, Cord (Motor to drive) and appropriate water-tight cord fittings.
Does not include additional switches (On-Off or FWD-REV).
