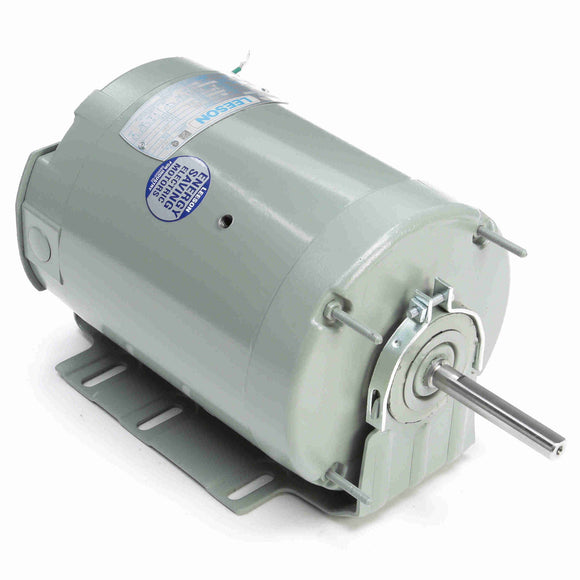

Features
- Extended through bolts
- Must be mounted in air stream
- PSC designs offer low in-rush current
- Automatic overload protected
- Resilient mount for quiet operation
- Corrosion resistant finish
General Specifications
| UPC: | 691720009970 | Weight: | 32.00 LB |
| Packaged Length: | 14.44 IN | Packaged Width: | 7.94 IN |
| Packaged Height: | 10.88 IN |
Nameplate Specifications
| Output HP: | 0.33 Hp | Output KW: | 0.25 kW |
| Frequency: | 60 Hz | Voltage: | 115/230 V |
| Current: | 3.4/1.7 A | Speed: | 1625 rpm |
| Service Factor: | 1 | Phase: | 1 |
| Efficiency: | 66 % | Power Factor: | 99 |
| Duty: | Continuous | Insulation Class: | B |
| Design Code: | NO DESIGN CODE | KVA Code: | F |
| Frame: | 56HY | Enclosure: | Totally Enclosed Air Over |
| Thermal Protection: | Automatic | Ambient Temperature: | 40 °C |
| Drive End Bearing Size: | 6203 | Opp Drive End Bearing Size: | 6203 |
| UL: | Recognized | CSA: | Y |
| CE: | N | IP Code: | 43 |
Technical Specifications
| Electrical Type: | Permanent Split Capacitor | Starting Method: | Across The Line |
| Poles: | 4 | Rotation: | Selective Counterclockwise |
| Resistance Main: | 0 Ohms | Mounting: | Resilient Base - Extended Studs |
| Motor Orientation: | HORIZONTAL | Drive End Bearing: | BALL |
| Opp Drive End Bearing: | BALL | Frame Material: | Rolled Steel |
| Shaft Type: | Single Special Extension | Overall Length: | 12.94 in |
| Frame Length: | 6.00 in | Shaft Diameter: | 0.500 in |
| Shaft Extension: | 3 in | Assembly/Box Mounting: | F1 ONLY |
Speed Characteristics
| Curvepoint | Current (Amps) | Current (%) | Torque (ft-lbs) | (%) | Speed (RPM) | Rated Output (KW) | Power Factor (%) | Rated Output (Hp) |
| Pull-Up | 0.00 | 0.0 | 5.70 | 0.0 | 0 | 0.00 | 0.0 | 0.33 |
| No Load | 0.74 | 0.0 | 0.00 | 0.0 | 1,788 | 0.16 | 0.0 | 0.33 |
| Break-Down | 0.00 | 0.0 | 36.40 | 0.0 | 1,460 | 0.00 | 0.0 | 0.33 |
| Full Load | 1.78 | 0.0 | 16.50 | 0.0 | 1,714 | 0.41 | 0.0 | 0.33 |
| Locked-Rotor | 7.13 | 0.0 | 6.90 | 0.0 | 0 | 1.23 | 0.0 | 0.33 |
Load Characteristics
| % of Rated Load | 0 % | 25 % | 50 % | 75 % | 100 % |
| Current (Amps) | 0.73 | 0.96 | 1.21 | 1.47 | 1.74 |
| Rated Output (KW) | 0.16 | 0.21 | 0.27 | 0.34 | 0.40 |
| Efficiency (%) | 0.0 | 29.8 | 45.9 | 55.4 | 61.3 |
| Power Factor (%) | 92.2 | 95.9 | 97.8 | 99.1 | 99.5 |
| Speed (RPM) | 1,788 | 1,775 | 1,758 | 1,740 | 1,721 |
| Temp. Rise @ FL | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 |
| Torque (ft-lbs) | 0.00 | 4.00 | 8.00 | 12.00 | 16.00 |
