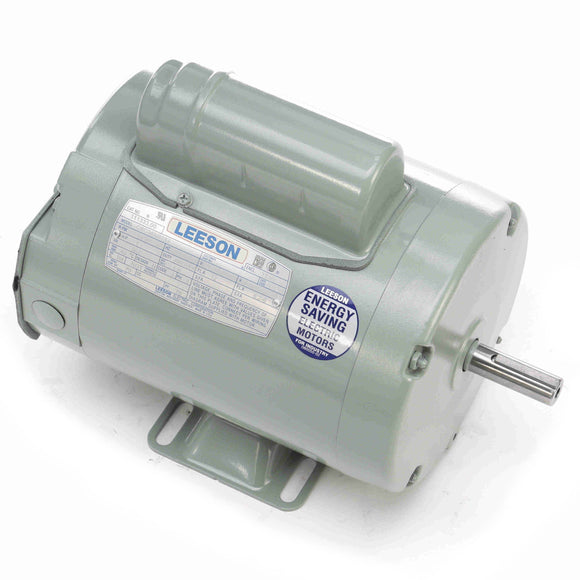

111333.00 Leeson 1HP Agriculture Duty Aeration Fan Motor-1

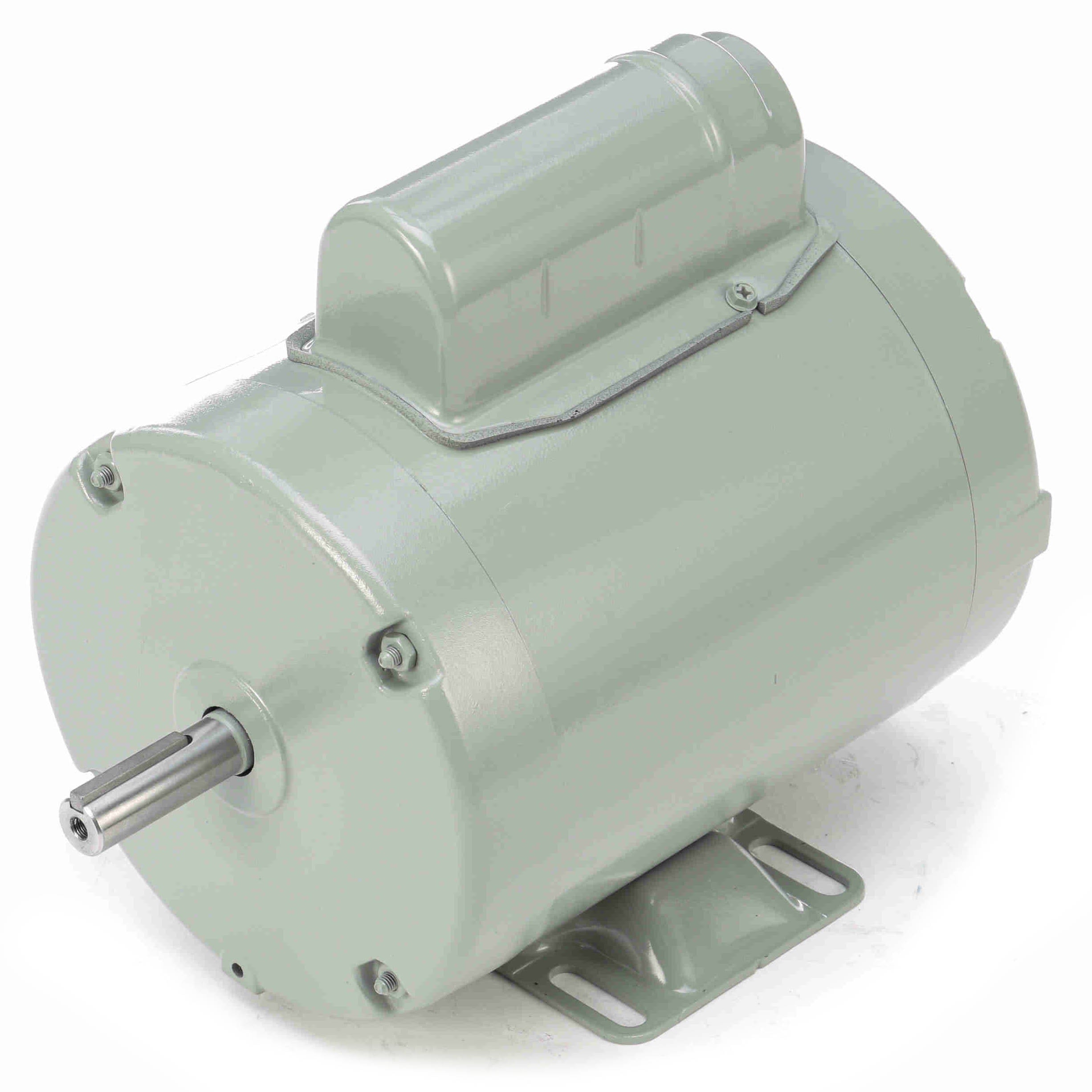

111333.00 Leeson 1HP Agriculture Duty Aeration Fan Motor-2

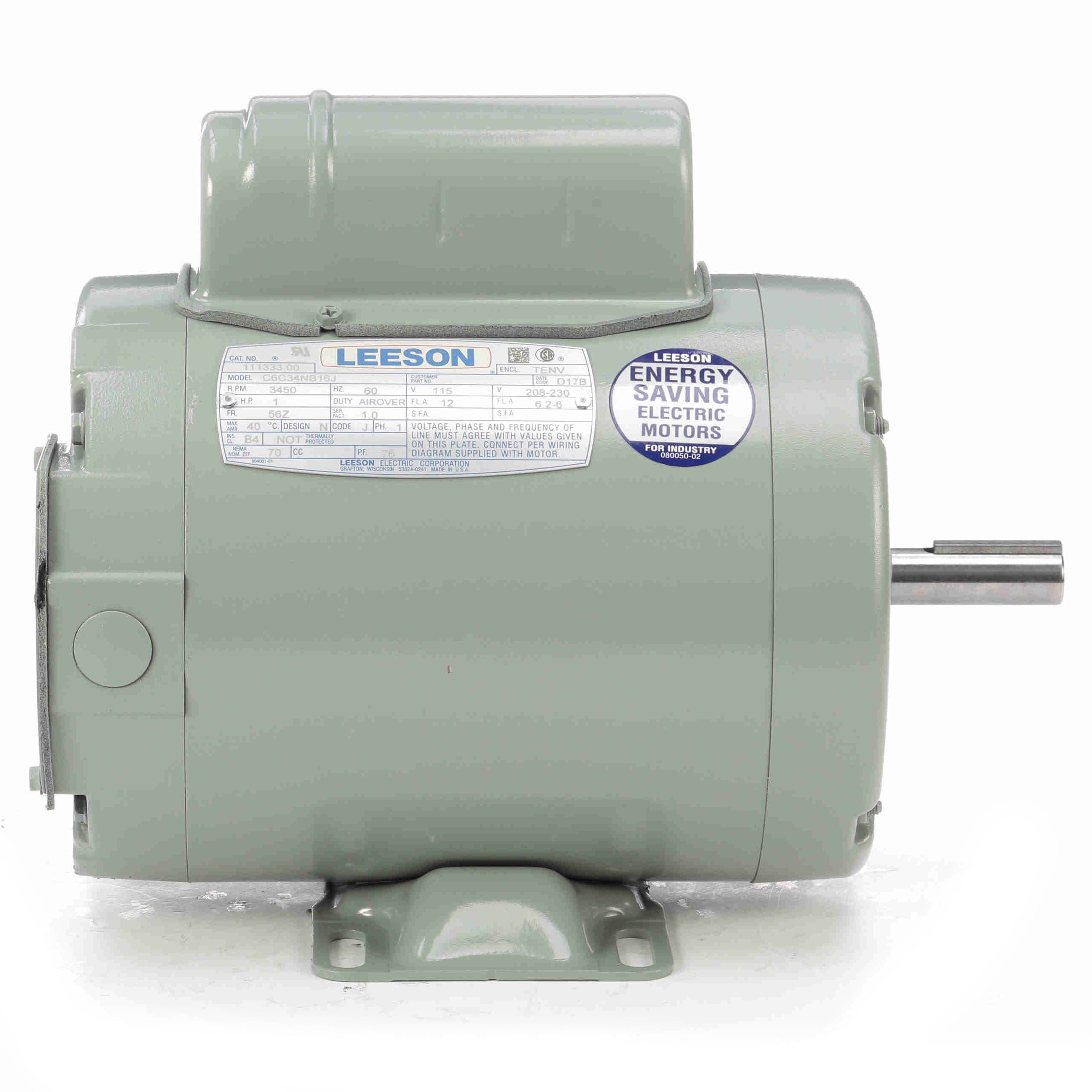

111333.00 Leeson 1HP Agriculture Duty Aeration Fan Motor-3

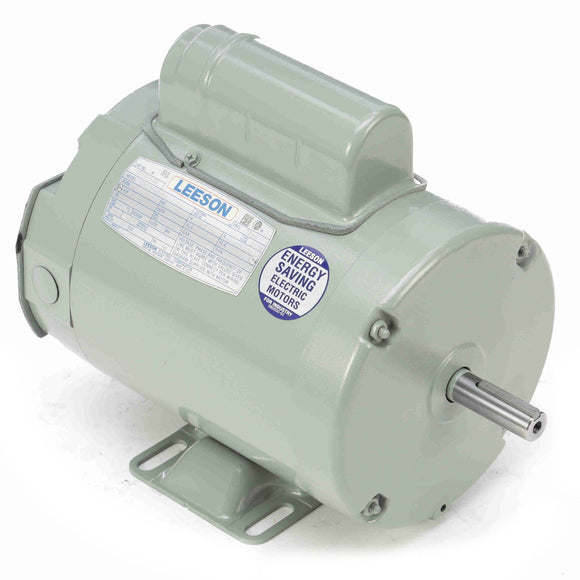

111333.00 Leeson 1HP Agriculture Duty Aeration Fan Motor-4

111333.00 Leeson 1HP Agriculture Duty Aeration Fan Motor

$1,009.00

Shipping calculated at checkout

Leeson Electric (Regal Rexnord) SKU: 111333.00 Barcode: 691720009949

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!
Aeration Fan Motors Features: • Belt driven fans or fan on shaft applications • Capacitor start design • Must be mounted in airstream for proper cooling • Epoxy paint to resist corrosion • Built-in terminal boards

Features

  • UL recognized component listing and CSA certification ensures the product is safe for use within a variety of applications.
  • Double-shielded bearings extend the service life of the motor.
  • Single and three phase, TEFC, TEAO, and ODP construction.
  • Overload protection prevents motor from overheating.

General Specifications

UPC: 691720009949 Weight: 32.00 LB
Packaged Length: 14.44 IN Packaged Width: 7.94 IN
Packaged Height: 10.88 IN

Nameplate Specifications

Output HP: 1 Hp Output KW: 0.75 kW
Frequency: 60 Hz Voltage: 115/208-230 V
Current: 12.0/6.2-6.0 A Speed: 3450 rpm
Service Factor: 1 Phase: 1
Efficiency: 70 % Power Factor: 76
Duty: Continuous Insulation Class: B
Design Code: N KVA Code: J
Frame: 56Z Enclosure: Totally Enclosed Air Over
Thermal Protection: No Ambient Temperature: 40 °C
Drive End Bearing Size: 6203 Opp Drive End Bearing Size: 6203
UL: Recognized CSA: Y
CE: N IP Code: 43
Number of Speeds: 1

Technical Specifications

Electrical Type: Capacitor Start Induction Run Starting Method: Across The Line
Poles: 2 Rotation: Selective Counterclockwise
Resistance Main: 1.92 Ohms Mounting: Rigid Base
Motor Orientation: Horizontal Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: NEMA 56 Overall Length: 10.90 in
Frame Length: 6.00 in Shaft Diameter: 0.625 in
Shaft Extension: 1.87 in Assembly/Box Mounting: F1 ONLY

Speed Characteristics

Curvepoint Current (Amps) Current (%) Torque (OZ-FT) Torque (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Locked-Rotor 34.00 80.00 333.0 0 1.00
Full Load 6.00 24.00 100.0 3,491 1.00
Pull-Up 0.00 60.00 250.0 2,800 1.00
Break-Down 0.00 64.00 267.0 3,000 1.00

Load Characteristics

% of Rated Load 0 % 25 % 50 % 75 % 100 % 125 % 150 %
Current (Amps) 3.70 3.95 4.44 5.13 5.99 7.04 8.28
Rated Output (KW) 0.18 0.39 0.60 0.82 1.06 1.31 1.60
Efficiency (%) 0.0 49.1 63.5 68.7 70.5 70.1 68.4
Power Factor (%) 21.2 42.6 58.3 69.4 76.6 81.2 83.9
Speed (RPM) 3,599 3,568 3,544 3,519 3,491 3,458 3,420
Temp. Rise @ FL 0.0 0.0 0.0 0.0 60.0 0.0 0.0
Torque (OZ-FT) 0.00 6.00 12.00 18.00 24.00 30.00 36.00
