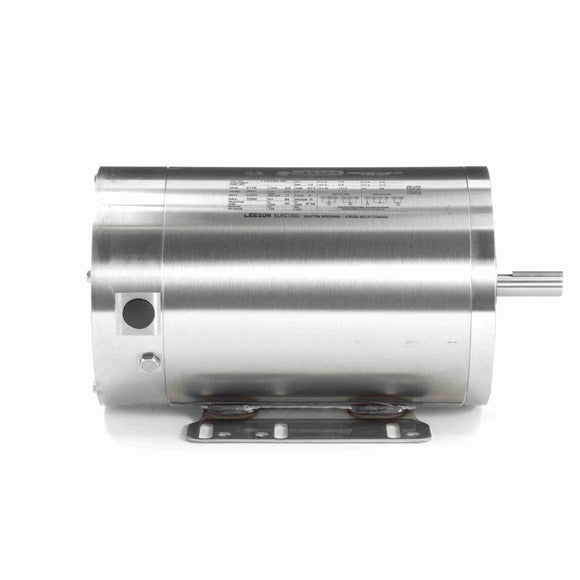

116346.00 Leeson 3/4HP Washguard All-Stainless Electric Motor, 1725RPM-1

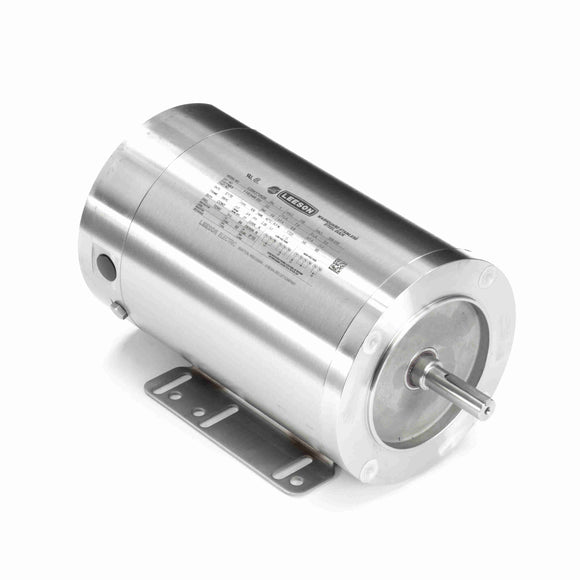

116346.00 Leeson 3/4HP Washguard All-Stainless Electric Motor, 1725RPM-2

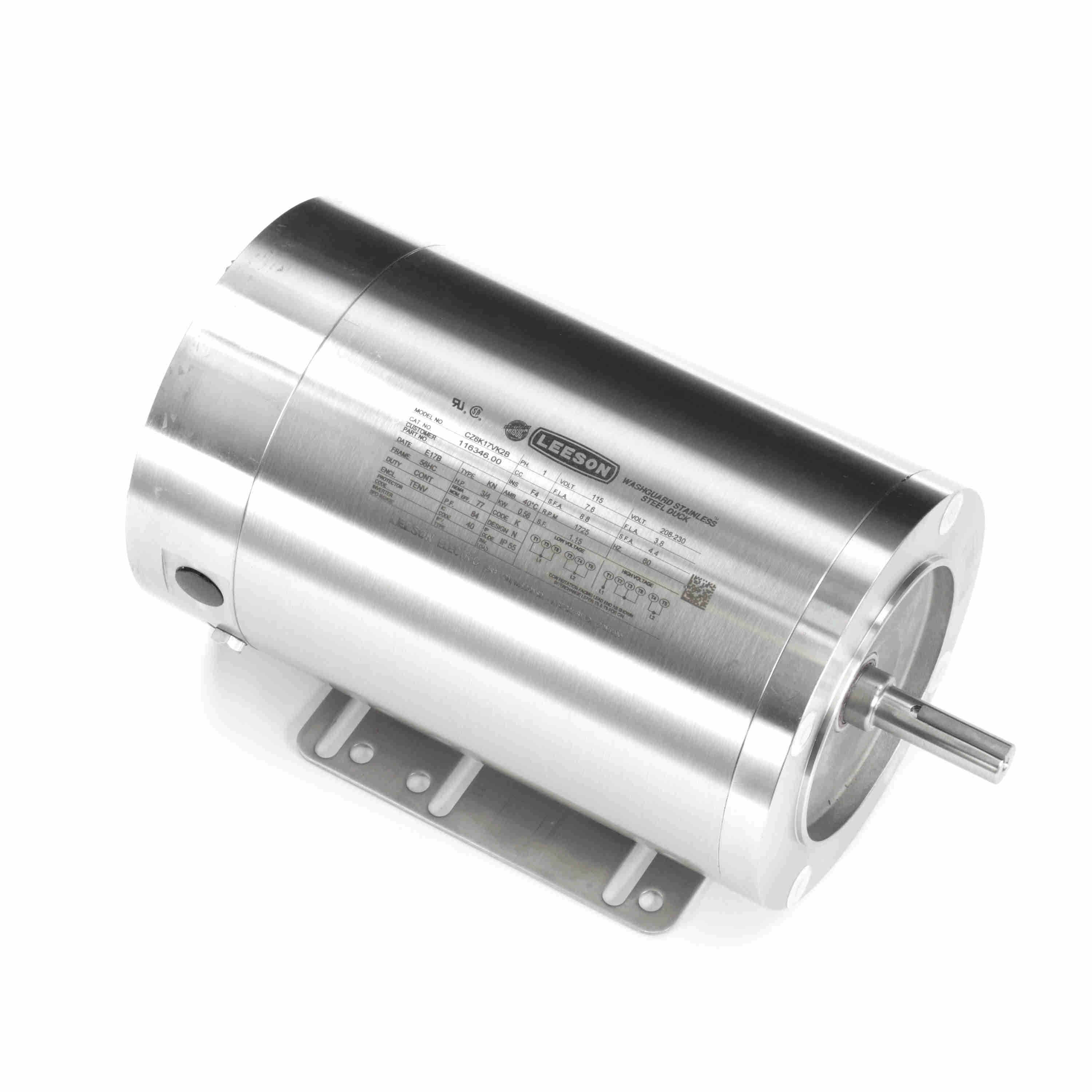

116346.00 Leeson 3/4HP Washguard All-Stainless Electric Motor, 1725RPM-3

116346.00 Leeson 3/4HP Washguard All-Stainless Electric Motor, 1725RPM

$2,988.00

Shipping calculated at checkout

Leeson Electric (Regal Rexnord) SKU: 116346.00 Barcode: 691720307434

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Features

Features
  • All exterior components are 300-series stainless steel; All sealing components are Viton® for superior chemical resistance
  • End shields are O-ring sealed to the frame; Double lip shaft seals on both ends of TEFC motors (shaft end only on TENV motors)
  • Double-sealed bearings are pre-lubricated with moisture-resistant high temperature grease for long life
  • Interior coatings applied to rotor and stator protect against corrosion; Ease to clean construction is BISSC Certified for bakery applications
  • Removable hydrophobic breathers in opposite shaft end bell and conduit box equalize pressure without allowing moisture to enter
  • Single-phase motors use Solid State Sinpac® switch – no mechanical switch contacts to corrode and fail.

General Specifications

General Specifications
Model : CZ6K17VK2B Catalog No : 116346.00
Part Description : ..3/4HP..1725RPM.56H.TENV.115/208-230V.1PH.60HZ.CONT.40C.1.15SF.RIGID C.CZ6K17VK2B.....WASHGUARD-ALL STAINLESS.NOT....... Category : 1 Phase
Stock : No

Nameplate Specifications

Nameplate Specifications
Output HP : 0.75 HP Output KW : 0.56 kW
Frequency : 60 Hz Voltage : 115/208-230 V
Current : 7.6/4.2-3.8 A Speed : 1725 RPM
Service Factor : 1.15 Phase : 1
Efficiency : 77 % Duty : Continuous
Insulation Class : F Design Code : N
KVA Code : K Frame : 56HC
Enclosure : Totally Enclosed Non Ventilated Overload Protector : No
Ambient Temperature : 40 °C Drive End Bearing Size : 6205
Opp Drive End Bearing Size : 6203 UL : Recognized
CSA : Y CE : N
IP Code : 55

Technical Specifications

Technical Specifications
Electrical Type : Capacitor Start Capacitor Run Starting Method : Across The Line
Poles : 4 Rotation : Selective Counterclockwise
Mounting : Rigid Base Motor Orientation : Horizontal
Drive End Bearing : Ball Opp Drive End Bearing : Ball
Frame Material : Rolled Steel Shaft Type : NEMA 56
Overall Length : 12.70 in Frame Length : 8.00 in
Shaft Diameter : 0.625 in Shaft Extension : 1.88 in
Assembly/Box Mounting : F1 ONLY UPC : 691720307434
Weight : 42.00 LB

Speed & Load Characteristics

Speed Characteristics
Curvepoint Current (Amps) Current (%) Torque (ft-lbs) Torque (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Full Load 3.80 100.0 27.00 100.0 1,741 0.00 0.0 0.75
Locked-Rotor 28.00 737.0 128.00 474.0 0 0.00 0.0 0.75
Pull-Up 17.20 453.0 89.00 330.0 1,330 0.00 0.0 0.75
Break-Down 13.90 366.0 97.30 360.0 1,500 0.00 0.0 0.75
Load Characteristics
  • % of Rated Load
  • Current (Amps)
  • Rated Output (KW)
  • Efficiency (%)
  • Power Factor (%)
  • Speed (RPM)
  • Temp. Rise @ FL
  • Torque (ft-lb)
  • 0 %
  • 1.74
  • 0.167
  • 0.0
  • 41.7
  • 1,797
  • 0.0
  • 0.00
  • 25 %
  • 2.00
  • 0.300
  • 47.5
  • 65.2
  • 1,785
  • 0.0
  • 9.00
  • 50 %
  • 2.56
  • 0.443
  • 63.3
  • 75.2
  • 1,774
  • 0.0
  • 17.80
  • 75 %
  • 3.18
  • 0.597
  • 70.5
  • 81.6
  • 1,763
  • 0.0
  • 26.90
  • 100 %
  • 3.80
  • 0.741
  • 75.1
  • 84.8
  • 1,741
  • 90.0
  • 36.00
  • 125 %
  • 4.66
  • 0.934
  • 75.1
  • 87.1
  • 1,736
  • 0.0
  • 45.50
  • 150 %
  • 5.60
  • 1.127
  • 74.5
  • 87.5
  • 1,719
  • 0.0
  • 55.00
