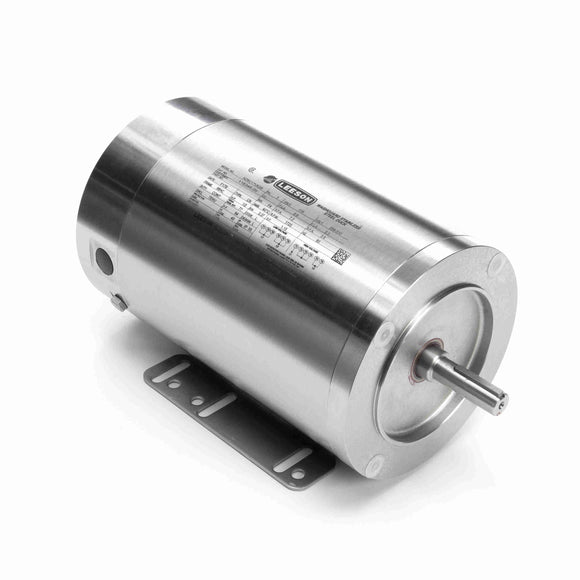

116345.00 Leeson 1/2HP Washguard All-Stainless Electric Motor, 1725RPM

$2,828.00

Shipping calculated at checkout

Leeson Electric (Regal Rexnord) SKU: 116345.00 Barcode: 691720307427

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Features

Features
  • All exterior components are 300-series stainless steel; All sealing components are Viton® for superior chemical resistance
  • End shields are O-ring sealed to the frame; Double lip shaft seals on both ends of TEFC motors (shaft end only on TENV motors)
  • Double-sealed bearings are pre-lubricated with moisture-resistant high temperature grease for long life
  • Interior coatings applied to rotor and stator protect against corrosion; Ease to clean construction is BISSC Certified for bakery applications
  • Removable hydrophobic breathers in opposite shaft end bell and conduit box equalize pressure without allowing moisture to enter
  • Single-phase motors use Solid State Sinpac® switch – no mechanical switch contacts to corrode and fail.

General Specifications

General Specifications
Model : NZ6C17VK2B Catalog No : 116345.00
Part Description : 1/2HP..1725RPM.56H.TENV./V.1PH.60HZ.CONT.NOT.40C.1.15SF.RIGID C.WASHGUARD-ALL STAINLESS.NZ6C17VK2B Category : 1 Phase
Stock : No

Nameplate Specifications

Nameplate Specifications
Output HP : 0.50 HP Output KW : 0.37 kW
Frequency : 60 Hz Voltage : 115/208-230 V
Current : 6.8/3.4-3.4 A Speed : 1725 RPM
Service Factor : 1.15 Phase : 1
Efficiency : 74 % Duty : Continuous
Insulation Class : F Design Code : L
KVA Code : L Frame : 56HC
Enclosure : Totally Enclosed Non Ventilated Overload Protector : No
Ambient Temperature : 40 °C Drive End Bearing Size : 6205
Opp Drive End Bearing Size : 6203 UL : No
CSA : N CE : N
IP Code : 43

Technical Specifications

Technical Specifications
Electrical Type : Capacitor Start Induction Run Starting Method : Across The Line
Poles : 4 Rotation : Selective Counterclockwise
Mounting : Rigid base Motor Orientation : HORIZONTAL
Drive End Bearing : BALL Opp Drive End Bearing : BALL
Frame Material : Rolled Steel Shaft Type : NEMA 56
Overall Length : 12.70 in Frame Length : 8.00 in
Shaft Diameter : 0.625 in Shaft Extension : 1.88 in
Assembly/Box Mounting : F1 ONLY UPC : 691720307427
Weight : 38.00 LB

Speed & Load Characteristics

Speed Characteristics
Curvepoint Current (Amps) Current (%) Torque (ft-lbs) Torque (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Locked-Rotor 20.50 603.0 82.00 342.0 0 0.00 0.0 0.50
Break-Down 0.00 0.0 64.00 267.0 1,535 0.00 0.0 0.50
Pull-Up 9.80 288.0 60.00 250.0 1,450 0.00 0.0 0.50
Full Load 3.40 100.0 24.00 100.0 1,750 0.00 0.0 0.50
Load Characteristics
  • % of Rated Load
  • Current (Amps)
  • Rated Output (KW)
  • Efficiency (%)
  • Power Factor (%)
  • Speed (RPM)
  • Temp. Rise @ FL
  • Torque (ft-lb)
  • 0 %
  • 2.40
  • 0.101
  • 0.0
  • 18.3
  • 1,798
  • 0.0
  • 0.00
  • 25 %
  • 2.47
  • 0.181
  • 52.5
  • 31.9
  • 1,785
  • 0.0
  • 6.00
  • 50 %
  • 2.74
  • 0.285
  • 66.3
  • 45.2
  • 1,773
  • 0.0
  • 12.00
  • 75 %
  • 3.12
  • 0.393
  • 71.6
  • 54.8
  • 1,762
  • 0.0
  • 18.00
  • 100 %
  • 3.35
  • 0.500
  • 74.6
  • 64.9
  • 1,750
  • 86.0
  • 24.00
  • 115 %
  • 3.80
  • 0.583
  • 73.3
  • 66.7
  • 1,743
  • 100.0
  • 27.60
  • 125 %
  • 4.15
  • 0.623
  • 74.2
  • 65.3
  • 1,735
  • 0.0
  • 30.00
