Features
Features
- Worm-type right-angle gearing features hardened, steel worm with bronze worm wheel for long life and quiet operation
- Precision machined aluminum gear housing
- Lubrication is permanent with an oil bath
- Gearbox has all ball bearings
- Output shaft is field interchangeable from left hand to right hand style by reassembly
- Double output shaft available as a factory option
- Optional conduit box available
General Specifications
General Specifications

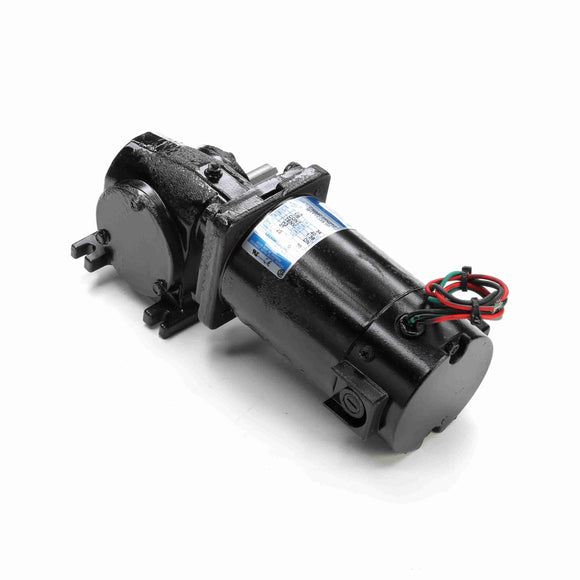

| Model : | CM34D25NZ7C | Catalog No : | M1135039.00 |
| Part Description : | ...20:1.125RPM.45LBIN.1/8HP.34...DC GEARMOTORS SUB-FHP.90V..TENV.CM34D25NZ7C | Category : | Right Angle |
| Stock : | No |
Nameplate Specifications
Nameplate Specifications
| Output HP : | 0.13 Hp | Output KW : | 0.10 kW |
| Voltage : | 90 V | Current : | 1.4 A |
| Speed : | 125 rpm | Service Factor : | 1 |
| Efficiency : | 31.5 % | Duty : | Continuous |
| Insulation Class : | H | Frame : | 34 |
| Enclosure : | Totally Enclosed Non Ventilated | Overload Protector : | No |
| Ambient Temperature : | 40 °C | Drive End Bearing Size : | 6201 |
| Opp Drive End Bearing Size : | 608 | UL : | Recognized |
| CSA : | Y | CE : | Y |
Technical Specifications
Technical Specifications
| Rotation : | Reversible | Mounting : | Special |
| Shaft Type : | Right Angle | Overall Length : | 10.64 in |
| Frame Length : | 3.81 in | Shaft Diameter : | 0.625 in |
| Shaft Extension : | 1.8 in | UPC : | 691720091593 |
| Weight : | 11.00 LB |
