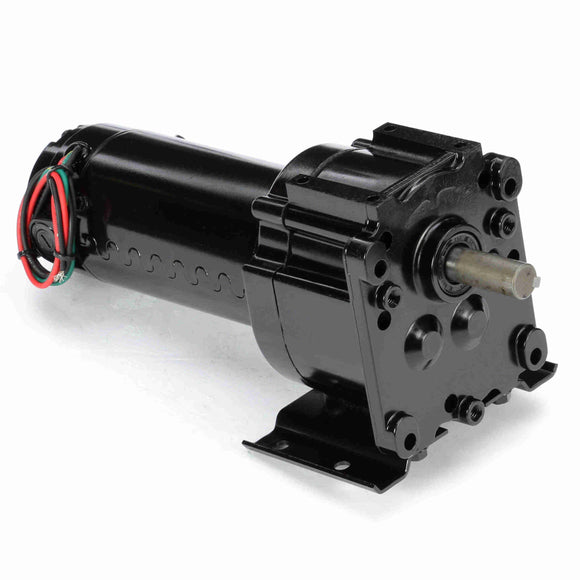

M1125069.00 Leeson 0.13HP Parallel Shaft DC Gearmotor, 24 RPM

$774.00 USD $1,471.00 USD Save $697.00 USD

Shipping calculated at checkout

Leeson Electric (Regal Rexnord) SKU: M1125069.00 Barcode: 691720091128

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Features

Features
  • Precision machined in-line steel gears
  • First stage steel helical gear followed by spur-type gears
  • Lubrication is permanent semi-fluid grease, reducing possibility of leakage
  • Output shafts have needle bearings for high load capacities
  • Shafts are hardened steel
  • Optional conduit box available

General Specifications

General Specifications
Model : 985.611F Catalog No : M1125069.00
Part Description : ...76:1.24RPM.280LBIN.1/8HP.30...DC GEARMOTORS SUB-FHP.90V.DC.TENV Category : P300 Series
Stock : No

Nameplate Specifications

Nameplate Specifications
Output HP : 0.13 Hp Output KW : 0.10 kW
Voltage : 90 V Current : 1.3 A
Speed : 24 rpm Service Factor : 1
Efficiency : 67.2 % Duty : Continuous
Insulation Class : F Frame : 30
Enclosure : Totally Enclosed Non Ventilated Overload Protector : No
Ambient Temperature : 40 °C Drive End Bearing Size : 6000
Opp Drive End Bearing Size : 6000 UL : Recognized
CSA : Y CE : Y

Technical Specifications

Technical Specifications
Rotation : Reversible Mounting : Special
Shaft Type : Parallel Overall Length : 11.45 in
Frame Length : 4.91 in Shaft Diameter : 0.625 in
Shaft Extension : 1.5 in UPC : 691720091128
Weight : 14.00 LB
