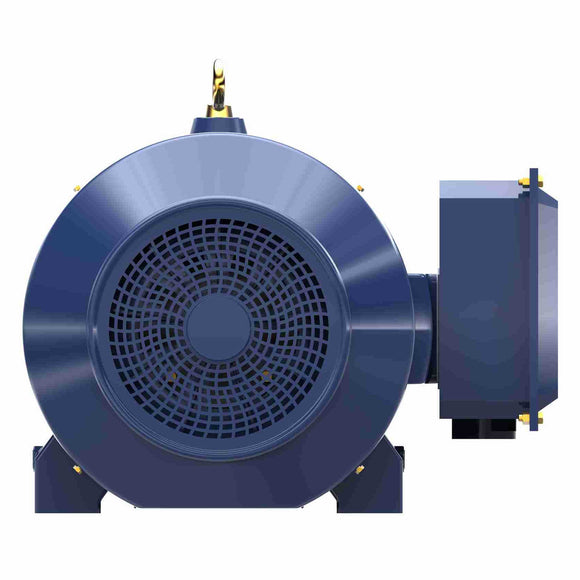

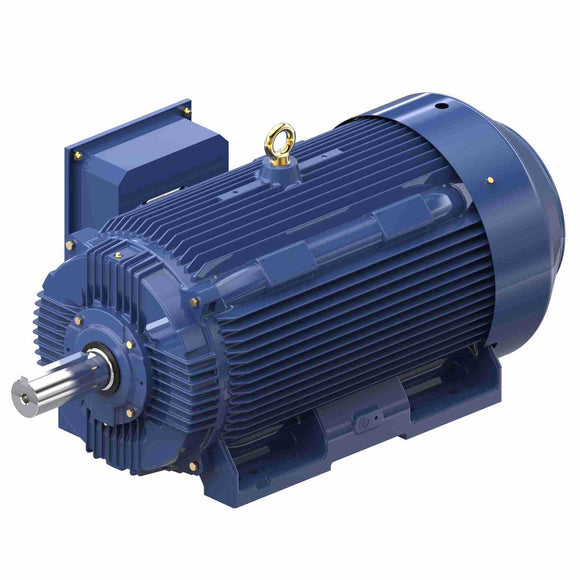

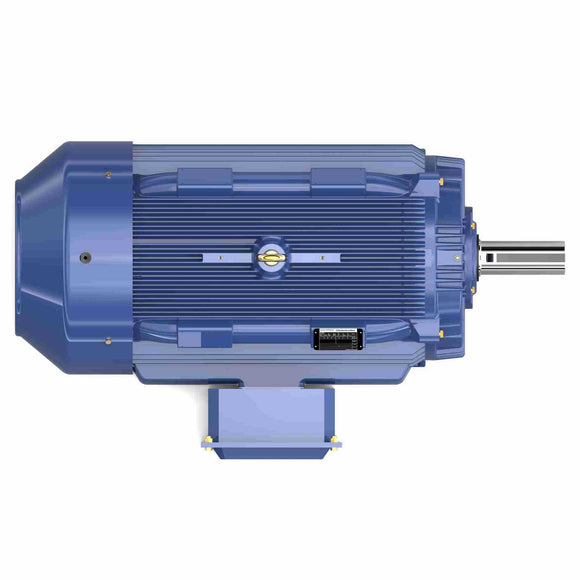

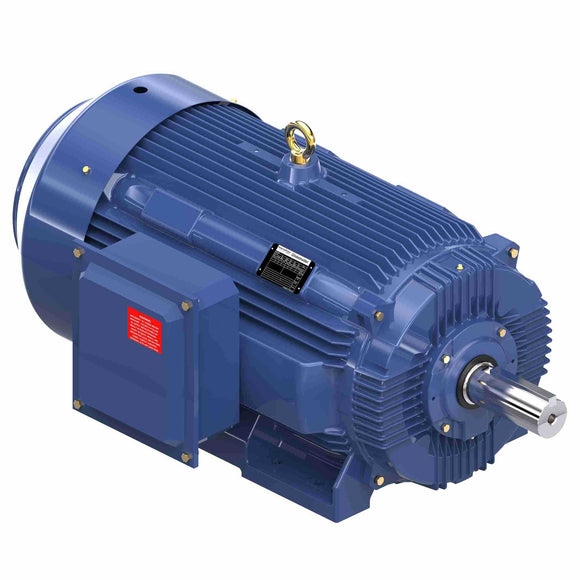

Features
- Meets or exceeds NEMA Premium® efficiency. Model is in compliance with EISA2047
- Hazardous Duty Division 2, Zone 2, Class I, Groups A,B,C,D, Temperature code T2B
- Hazardous Duty Division 2, Zone 2, Class I, Groups A,B,C,D, Temperature code T2B
- CONSTANT 2:1/VARIABLE 20:1
- IP55 enclosure on cast iron frames
- IP55 enclosure on cast iron frames
- Inverter Duty 10:1 Variable Torque and up to 10:1 Constant Torque
- Inverter Duty 20:1 Variable Torque and 2:1 Constant Torque
- Class F Insulation
- Standard F1, reversible to F2 assembly. Dual frame mounting holes.
General Specifications
| UPC: | 722856068279 | Weight: | 2,493.85 LB |
| Packaged Length: | 58 IN | Packaged Width: | 35 IN |
| Packaged Height: | 31 IN |
Nameplate Specifications
| Output HP: | 200 Hp | Output KW: | 149.0 kW |
| Frequency: | 60 Hz | Voltage: | 460 V |
| Current: | 230.0 A | Speed: | 1190 rpm |
| Service Factor: | 1.15 | Phase: | 3 |
| Efficiency: | 95.8 % | Power Factor: | 85 |
| Duty: | Continuous | Insulation Class: | F |
| Design Code: | B | KVA Code: | G |
| Frame: | 449T | Enclosure: | Totally Enclosed Fan Cooled |
| Thermal Protection: | No | Ambient Temperature: | 40 °C |
| Drive End Bearing Size: | 6319 | Opp Drive End Bearing Size: | 6317 |
| UL: | Listed | CSA: | Y |
| CE: | Y | IP Code: | 55 |
| Hazardous Location: | DIVISION 2 T2B |
Technical Specifications
| Electrical Type: | Squirrel Cage Inverter Rated | Starting Method: | Part Wdg Start Or Inverter |
| Poles: | 6 | Rotation: | Selective Clockwise |
| Resistance Main: | .0186 Ohms | Mounting: | Rigid Base |
| Motor Orientation: | Horizontal | Drive End Bearing: | Ball |
| Opp Drive End Bearing: | Ball | Frame Material: | Cast Iron |
| Shaft Type: | T | Overall Length: | 55.21 in |
| Shaft Diameter: | 3.375 in | Shaft Extension: | 8.5 in |
| Assembly/Box Mounting: | F1/F2 CAPABLE |
Speed Characteristics
| Curvepoint | Current (Amps) | Current (%) | Torque (LB-FT) | Torque (%) | Speed (RPM) | Rated Output (KW) | Power Factor (%) | Rated Output (Hp) |
| Locked-Rotor | 1,425.00 | 640.0 | 1,550.00 | 175.0 | 0 | 31.0 | 200.00 | |
| 2/3 | 1,045.00 | 460.0 | 1,700.00 | 195.0 | 800 | 200.00 | ||
| Full Load | 230.00 | 100.0 | 883.00 | 100.0 | 1,190 | 85.0 | 200.00 | |
| 1/3 | 1,262.00 | 555.0 | 1,355.00 | 152.0 | 400 | 200.00 | ||
| No Load | 69.50 | 31.0 | 0.00 | 0.0 | 1,200 | 4.0 | 200.00 | |
| Break-Down | 780.00 | 345.0 | 2,350.00 | 265.0 | 1,155 | 62.0 | 200.00 | |
| Pull-Up | 1,160.00 | 510.0 | 1,372.00 | 155.0 | 600 | 200.00 |
Load Characteristics
| % of Rated Load | 0 % | 25 % | 50 % | 75 % | 100 % | 115 % | 125 % |
| Current (Amps) | 69.50 | 88.50 | 129.00 | 178.00 | 230.00 | 265.00 | 290.00 |
| Rated Output (KW) | 2.70 | 39.50 | 78.00 | 117.00 | 156.00 | 180.00 | 196.00 |
| Efficiency (%) | 0.0 | 94.1 | 95.4 | 95.8 | 95.8 | 95.4 | 95.0 |
| Power Factor (%) | 4.0 | 56.5 | 76.0 | 82.5 | 85.0 | 85.5 | 85.5 |
| Speed (RPM) | 1,200 | 1,198 | 1,195 | 1,192 | 1,190 | 1,188 | 1,188 |
| Temp. Rise @ FL | 0.0 | 0.0 | 0.0 | 0.0 | 75.0 | 105.0 | 0.0 |
| Torque (LB-FT) | 0.00 | 220.00 | 440.00 | 661.00 | 883.00 | 1,018.00 | 1,106.00 |
