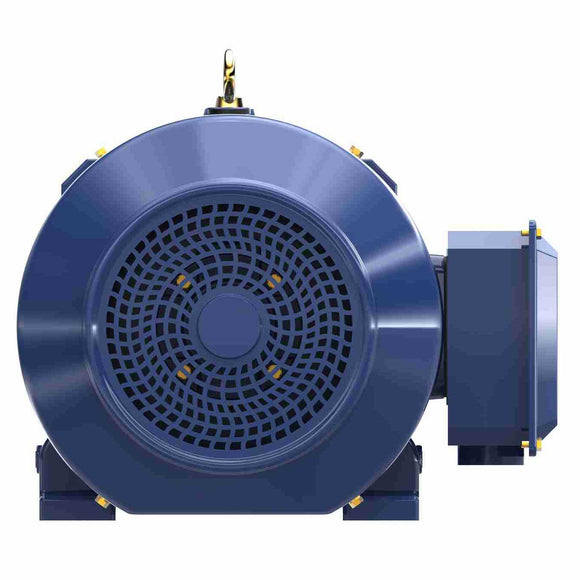

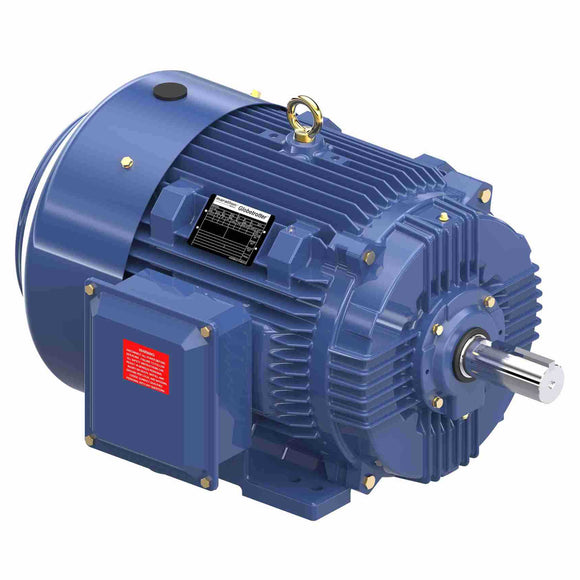

Features
- Meets or exceeds NEMA Premium® efficiency. Model is in compliance with EISA2025
- Hazardous Duty Division 2, Zone 2, Class I, Groups A,B,C,D, Temperature code T2B
- Hazardous Duty Division 2, Zone 2, Class I, Groups A,B,C,D, Temperature code T2B
- CONSTANT 10:1/VARIABLE 20:1
- IP55 enclosure on cast iron frames
- IP55 enclosure on cast iron frames
- Inverter Duty 10:1 Variable Torque and up to 10:1 Constant Torque
- Inverter Duty 20:1 Variable Torque and 10:1 Constant Torque
- Class F Insulation
- Standard F1, reversible to F2 assembly. Dual frame mounting holes.
General Specifications
| UPC: | 722856060716 | Weight: | 624.02 LB |
| Packaged Length: | 31.77 IN | Packaged Width: | 28.03 IN |
| Packaged Height: | 28.14 IN |
Nameplate Specifications
| Output HP: | 40 Hp | Output KW: | 30.0 kW |
| Frequency: | 60 Hz | Voltage: | 230/460 V |
| Current: | 95.0/47.5 A | Speed: | 1782 rpm |
| Service Factor: | 1.15 | Phase: | 3 |
| Efficiency: | 94.1 % | Power Factor: | 84 |
| Duty: | Continuous | Insulation Class: | F |
| Design Code: | B | KVA Code: | G |
| Frame: | 324T | Enclosure: | Totally Enclosed Fan Cooled |
| Thermal Protection: | No | Ambient Temperature: | 40 °C |
| Drive End Bearing Size: | 6312 | Opp Drive End Bearing Size: | 6212 |
| UL: | Listed | CSA: | Y |
| CE: | Y | IP Code: | 55 |
| Hazardous Location: | DIVISION 2 T2B |
Technical Specifications
| Electrical Type: | Squirrel Cage Inverter Rated | Starting Method: | Part Wdg Start Low Volt Only & Wye Start Delta Run Or Inverter |
| Poles: | 4 | Rotation: | Selective Clockwise |
| Resistance Main: | .18 Ohms | Mounting: | Rigid Base |
| Motor Orientation: | Horizontal | Drive End Bearing: | Ball |
| Opp Drive End Bearing: | Ball | Frame Material: | Cast Iron |
| Shaft Type: | T | Overall Length: | 29.69 in |
| Shaft Diameter: | 2.125 in | Shaft Extension: | 5.25 in |
| Assembly/Box Mounting: | F1/F2 CAPABLE |
Speed Characteristics
| Curvepoint | Current (Amps) | Current (%) | Torque (LB-FT) | Torque (%) | Speed (RPM) | Rated Output (KW) | Power Factor (%) | Rated Output (Hp) |
| Full Load | 47.50 | 100.0 | 118.00 | 100.0 | 1,782 | 31.50 | 84.0 | 40.00 |
| Locked-Rotor | 290.00 | 610.0 | 212.00 | 180.0 | 0 | 71.50 | 32.0 | 40.00 |
| Pull-Up | 230.00 | 485.0 | 180.00 | 152.0 | 900 | 0.00 | 0.0 | 40.00 |
| 1/3 | 250.00 | 525.0 | 175.00 | 150.0 | 600 | 0.00 | 0.0 | 40.00 |
| 2/3 | 210.00 | 440.0 | 220.00 | 185.0 | 1,200 | 0.00 | 0.0 | 40.00 |
| Break-Down | 170.00 | 360.0 | 313.00 | 265.0 | 1,710 | 90.70 | 67.0 | 40.00 |
| No Load | 17.50 | 37.0 | 0.00 | 0.0 | 1,800 | 0.00 | 5.0 | 40.00 |
Load Characteristics
| % of Rated Load | 0 % | 25 % | 50 % | 75 % | 100 % | 115 % | 125 % |
| Current (Amps) | 17.50 | 20.50 | 27.80 | 37.00 | 47.50 | 54.20 | 59.00 |
| Rated Output (KW) | 0.70 | 8.20 | 15.90 | 23.70 | 31.70 | 36.60 | 39.90 |
| Efficiency (%) | 0.0 | 91.0 | 93.6 | 94.1 | 94.1 | 93.6 | 93.0 |
| Power Factor (%) | 5.0 | 50.5 | 72.5 | 81.0 | 84.0 | 85.5 | 85.5 |
| Speed (RPM) | 1,800 | 1,795 | 1,790 | 1,788 | 1,782 | 1,780 | 1,778 |
| Temp. Rise @ FL | 0.0 | 0.0 | 0.0 | 0.0 | 60.0 | 80.0 | 0.0 |
| Torque (LB-FT) | 0.00 | 29.30 | 58.50 | 88.30 | 118.00 | 136.00 | 148.50 |
