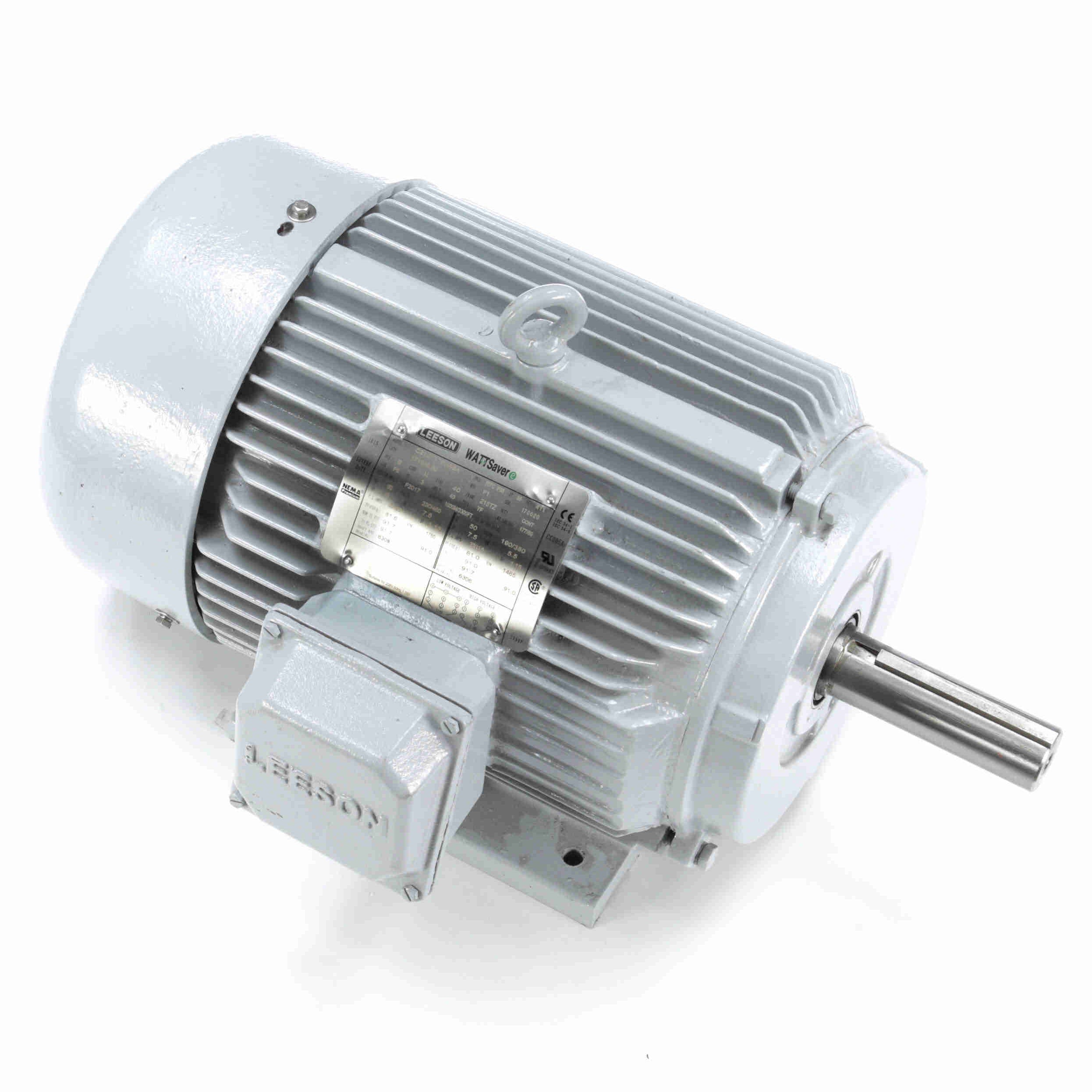

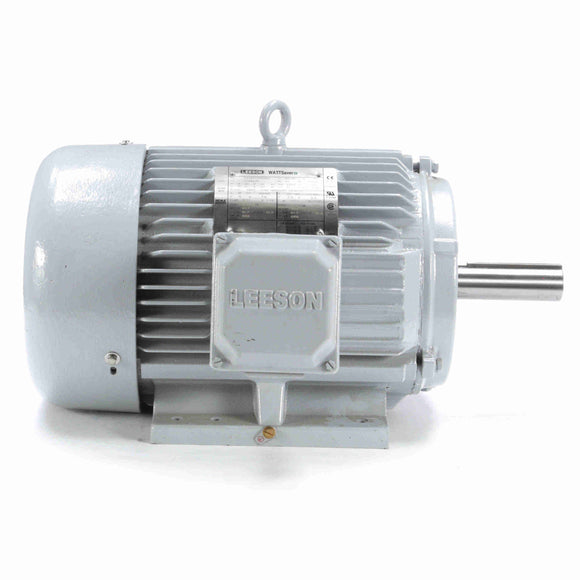

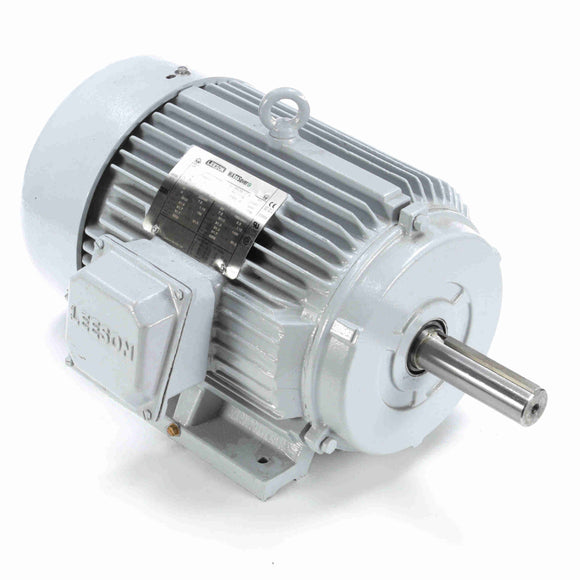

Features
- 1" longer shaft than NEMA standard
- Shaft seals both ends
- Premium efficient
- Epoxy Painted
- Normally closed T-stats
- Cast iron construction
General Specifications
| Model : | C215T17FK48A | Catalog No : | 171848.60 |
| Part Description : | ..10HP..1800RPM.215TZ.TEFC.230/460V.3PH.60HZ.CONT.40C.1.15SF.RIGID......GRAIN DRYER........ | Category : | Grain Stirring |
| Stock : | No |
Nameplate Specifications
| Output HP : | 10 Hp | Output KW : | 7.5 kW |
| Frequency : | 60 Hz | Voltage : | 208-230/460 V |
| Current : | 27.0-25.0/12.5 A | Speed : | 1760 rpm |
| Service Factor : | 1.15 | Phase : | 3 |
| Efficiency : | 91.7 % | Duty : | Continuous |
| Insulation Class : | F | Design Code : | B |
| KVA Code : | H | Frame : | 215TZ |
| Enclosure : | Totally Enclosed Fan Cooled | Overload Protector : | No |
| Ambient Temperature : | 40 °C | Drive End Bearing Size : | 6308 |
| Opp Drive End Bearing Size : | 6306 | UL : | Recognized |
| CSA : | Y | CE : | Y |
| IP Code : | 55 |
Technical Specifications
| Electrical Type : | Squirrel Cage Inverter Rated | Starting Method : | Line Or Inverter |
| Poles : | 4 | Rotation : | Reversible |
| Mounting : | Rigid base | Motor Orientation : | Horizontal |
| Drive End Bearing : | Ball | Opp Drive End Bearing : | Ball |
| Frame Material : | Cast Iron | Shaft Type : | Single Special Extension |
| Overall Length : | 20.78 in | Shaft Diameter : | 1.375 in |
| Shaft Extension : | 4.38 in | Assembly/Box Mounting : | F1/F2 CAPABLE |
| UPC : | 691720053638 | Weight : | 188.00 LB |
Speed Characteristics
| Curvepoint | Current (Amps) | Current (%) | Torque (ft-lbs) | Torque (%) | Speed (RPM) | Rated Output (KW) | Power Factor (%) | Rated Output (Hp) |
| 2/3 | 82.00 | 656.0 | 87.00 | 292.0 | 1,200 | 10.00 | ||
| Full Load | 12.50 | 100.0 | 29.80 | 100.0 | 1,760 | 81.5 | 10.00 | |
| Locked-Rotor | 81.00 | 648.0 | 64.50 | 216.0 | 0 | 40.5 | 10.00 | |
| 1/3 | 95.00 | 760.0 | 60.00 | 201.0 | 600 | 10.00 | ||
| Pull-Up | 90.00 | 684.0 | 72.00 | 240.0 | 900 | 10.00 | ||
| Break-Down | 61.00 | 488.0 | 109.00 | 365.0 | 1,555 | 71.5 | 10.00 | |
| No Load | 5.90 | 47.0 | 0.00 | 0.0 | 1,800 | 5.5 | 10.00 |
Load Characteristics
- % of Rated Load
- Current (Amps)
- Rated Output (KW)
- Efficiency (%)
- Power Factor (%)
- Speed (RPM)
- Temp. Rise @ FL
- Torque (ft-lb)
- 0 %
- 5.90
- 0.300
- 0.0
- 5.5
- 1,800
- 0.0
- 0.00
- 25 %
- 6.50
- 2.100
- 86.0
- 41.5
- 1,792
- 0.0
- 7.30
- 50 %
- 8.00
- 4.100
- 91.0
- 63.5
- 1,785
- 0.0
- 14.70
- 75 %
- 10.00
- 6.100
- 91.7
- 75.0
- 1,775
- 0.0
- 22.20
- 100 %
- 12.50
- 8.100
- 91.7
- 81.5
- 1,768
- 50.0
- 29.80
- 115 %
- 15.20
- 9.400
- 91.7
- 83.0
- 1,762
- 70.0
- 34.40
- 125 %
- 16.20
- 10.200
- 91.0
- 84.5
- 1,755
- 85.0
- 37.60
