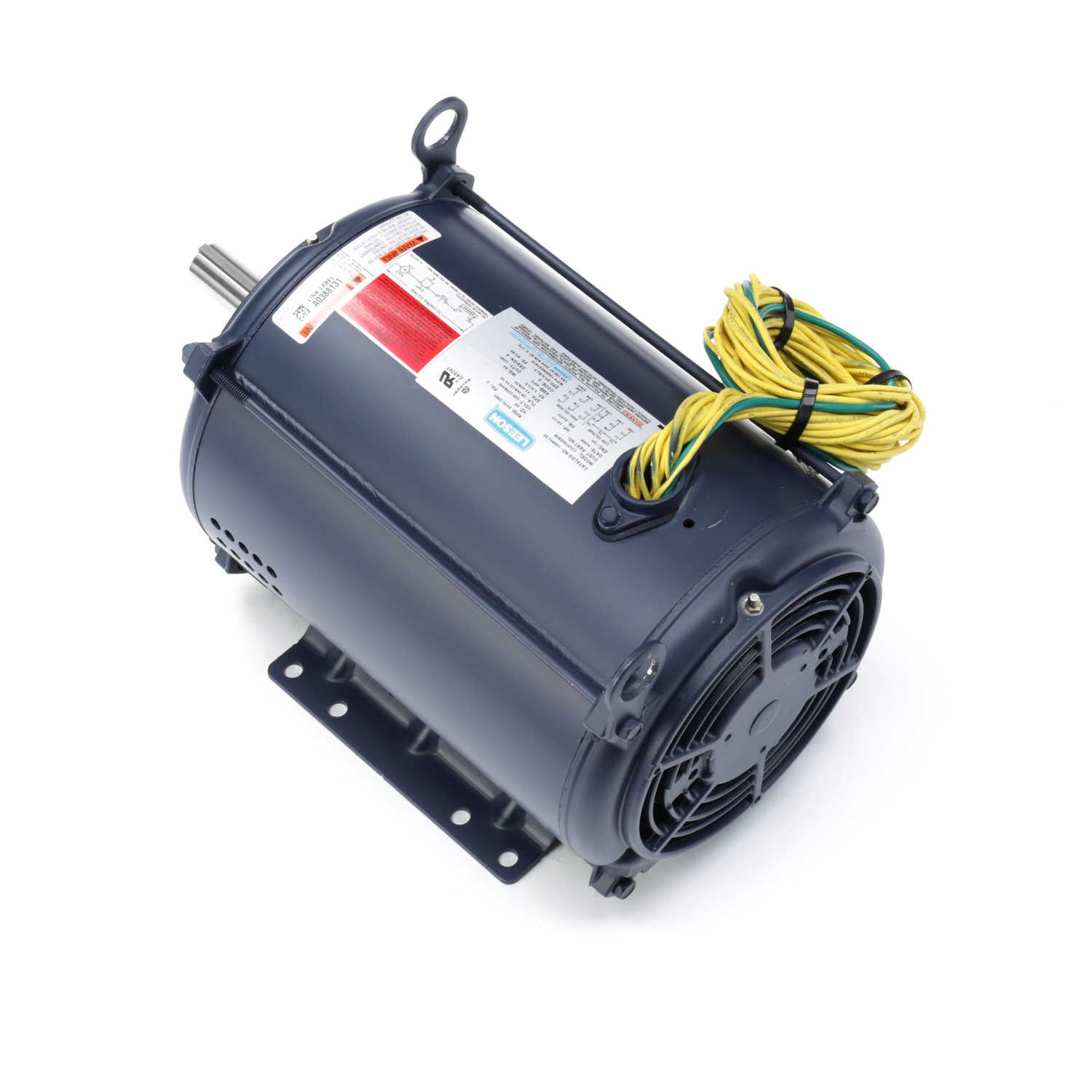

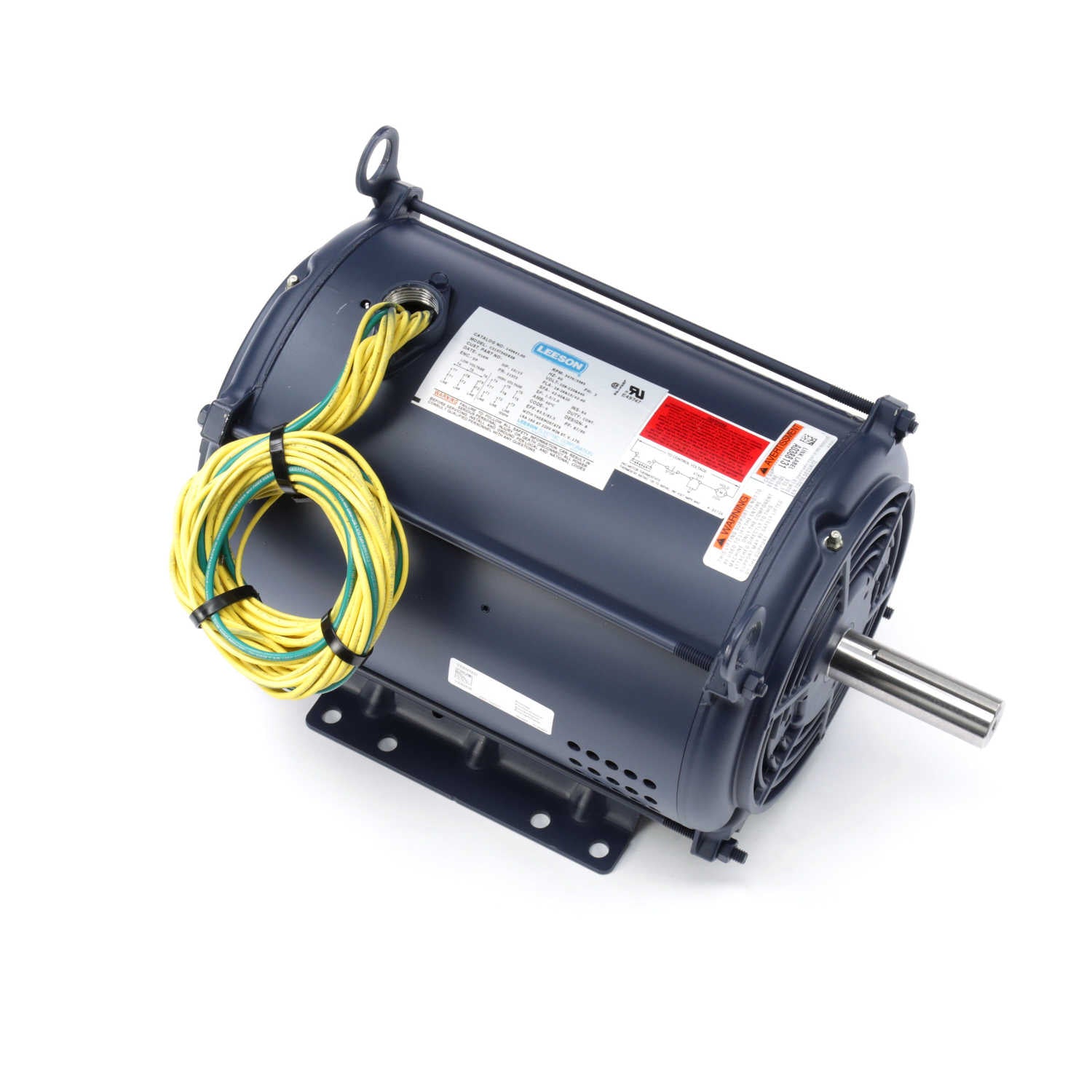

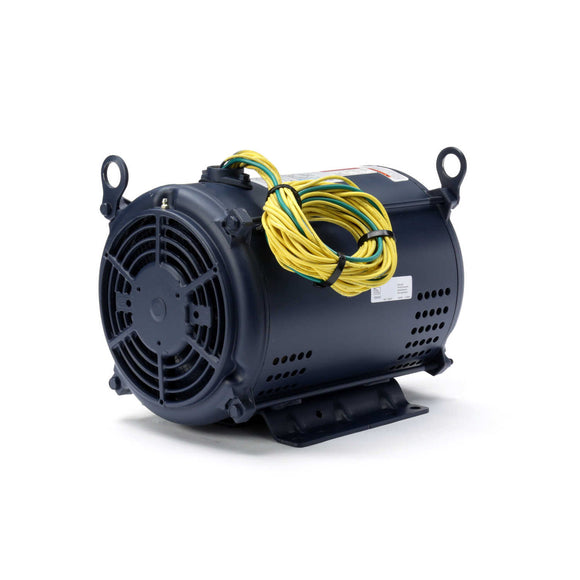

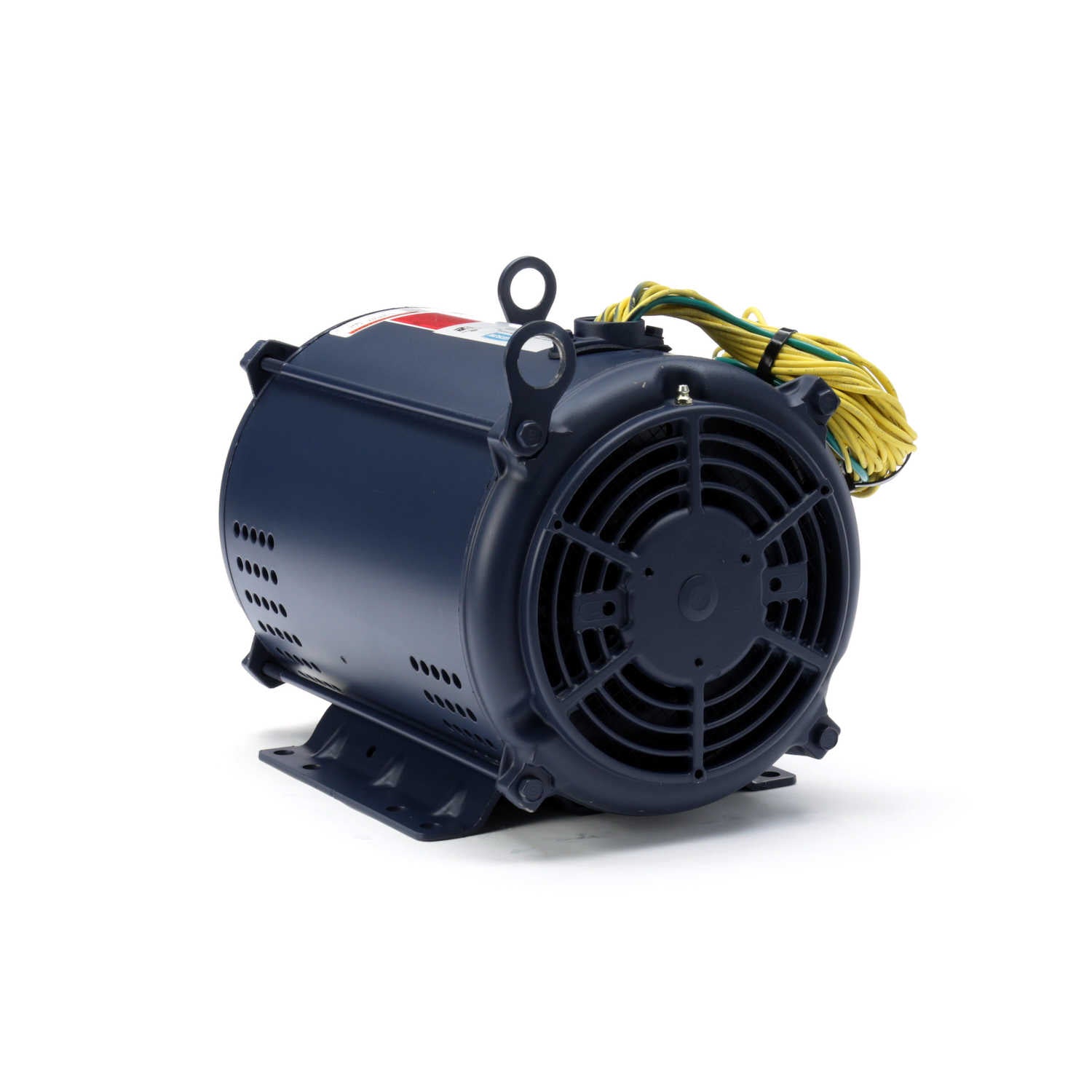

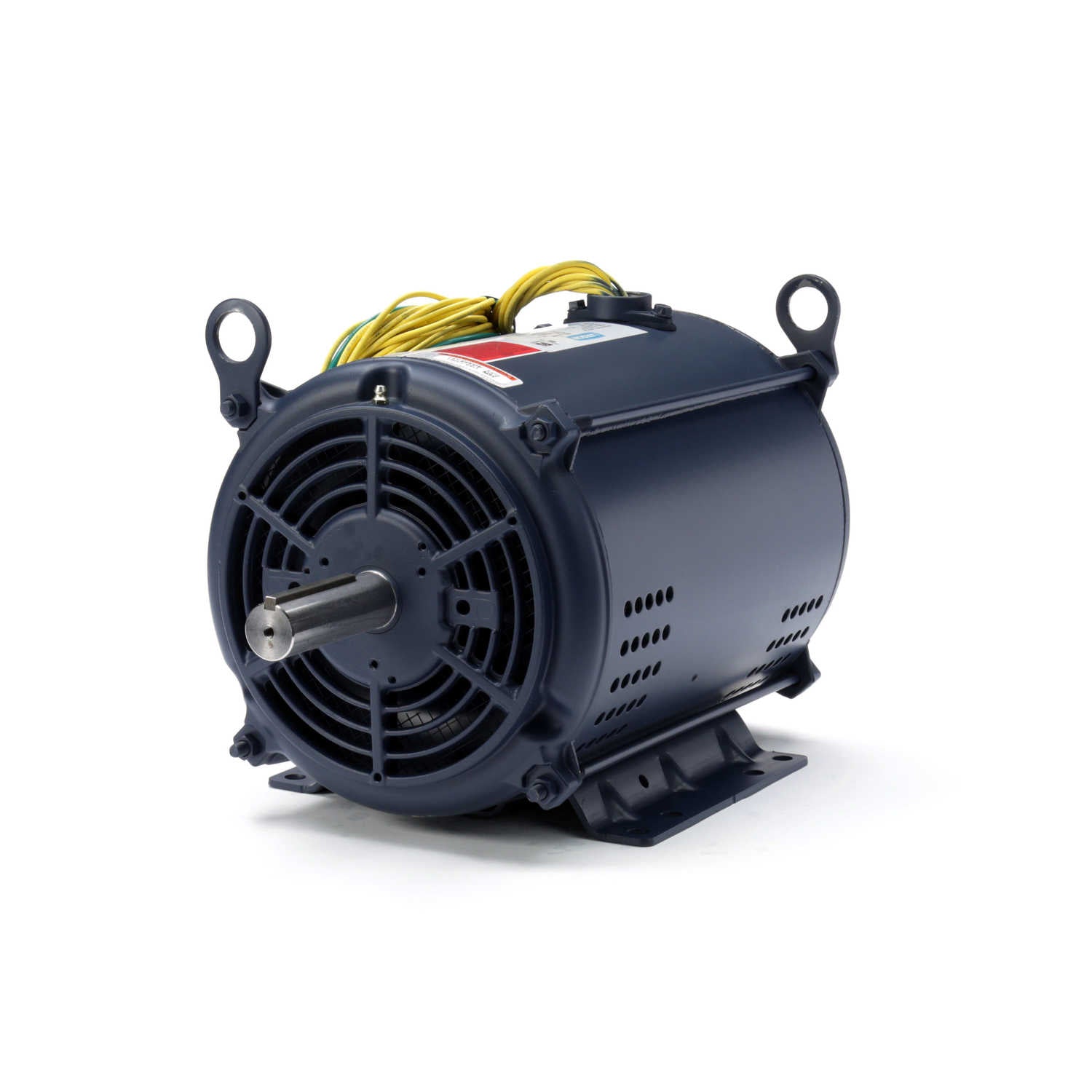

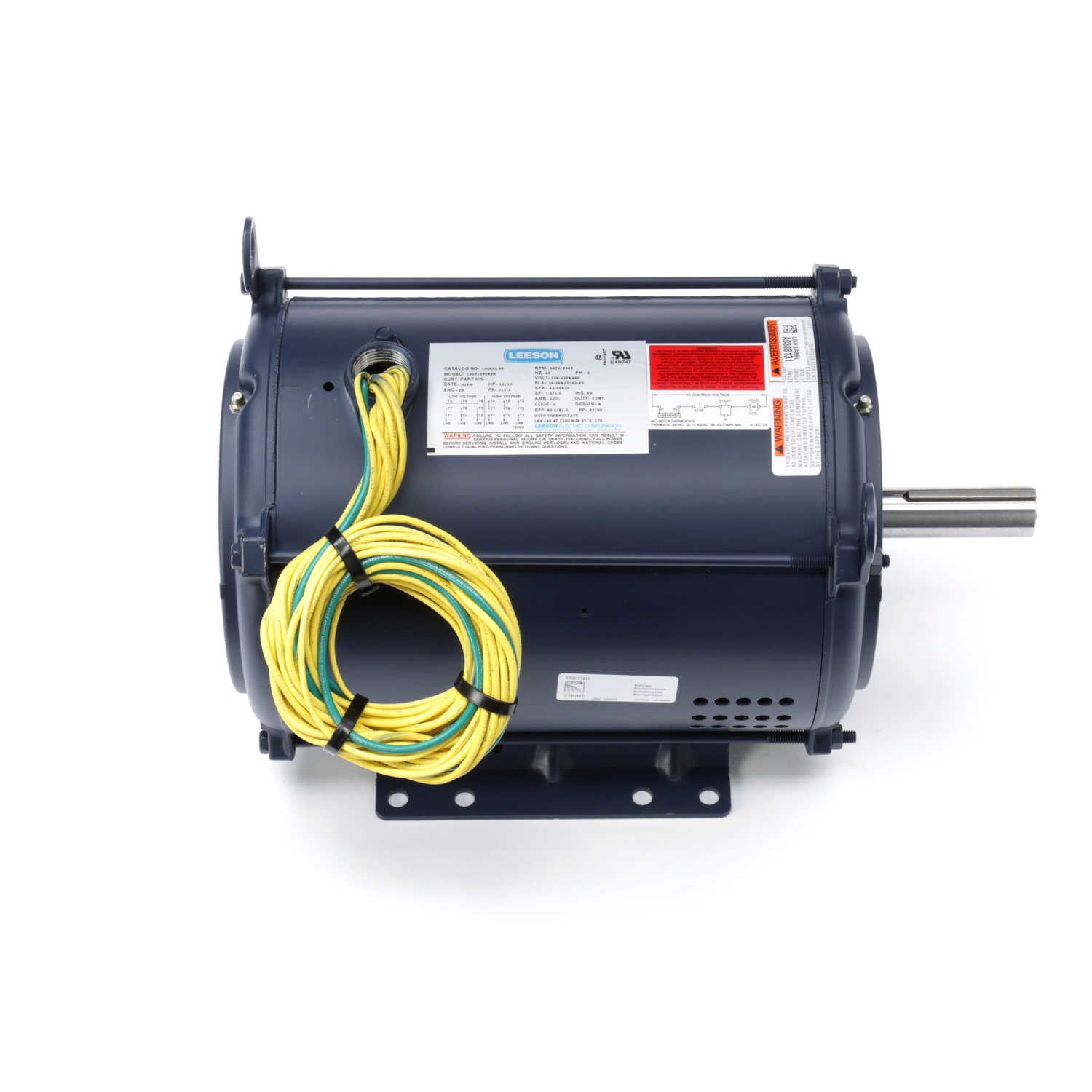

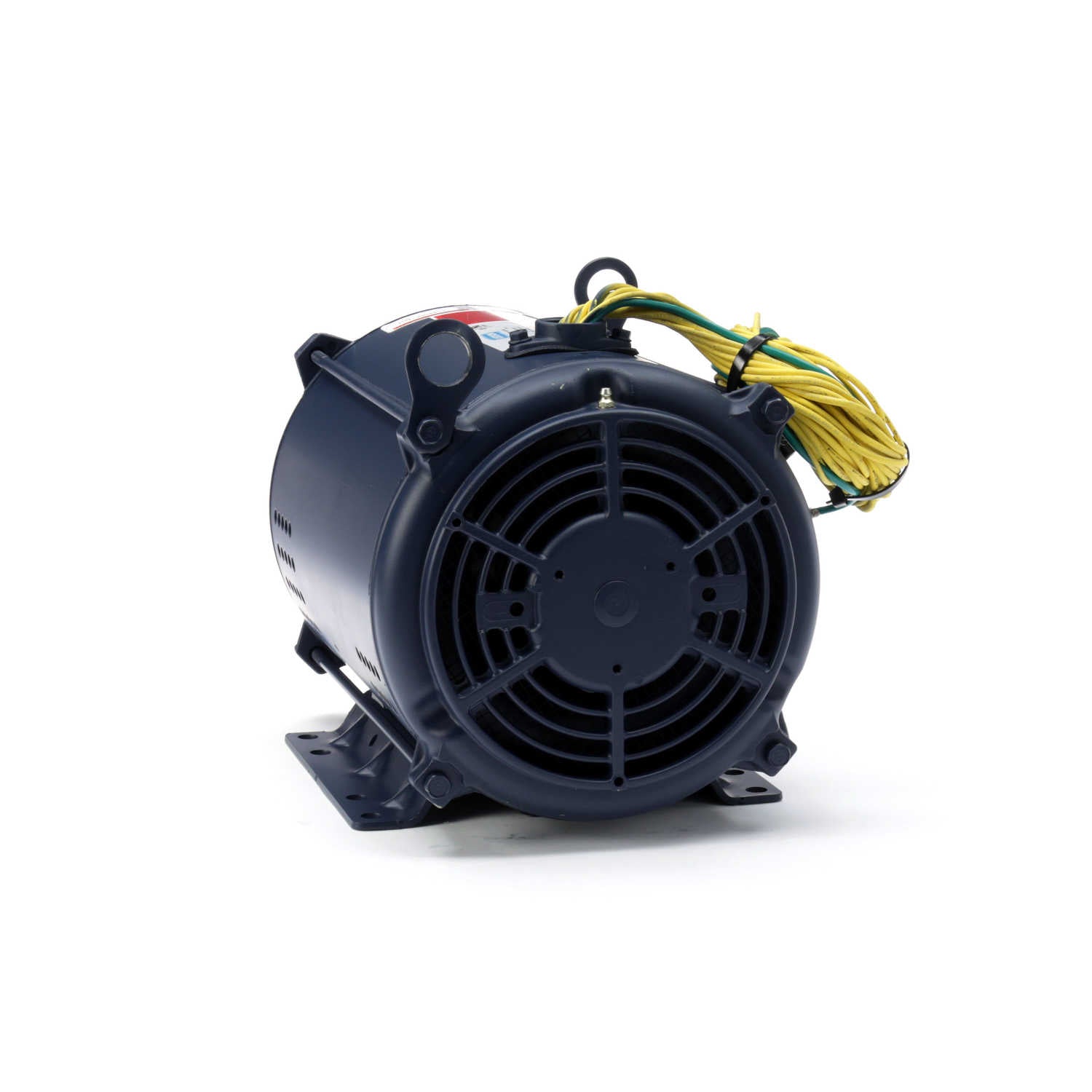

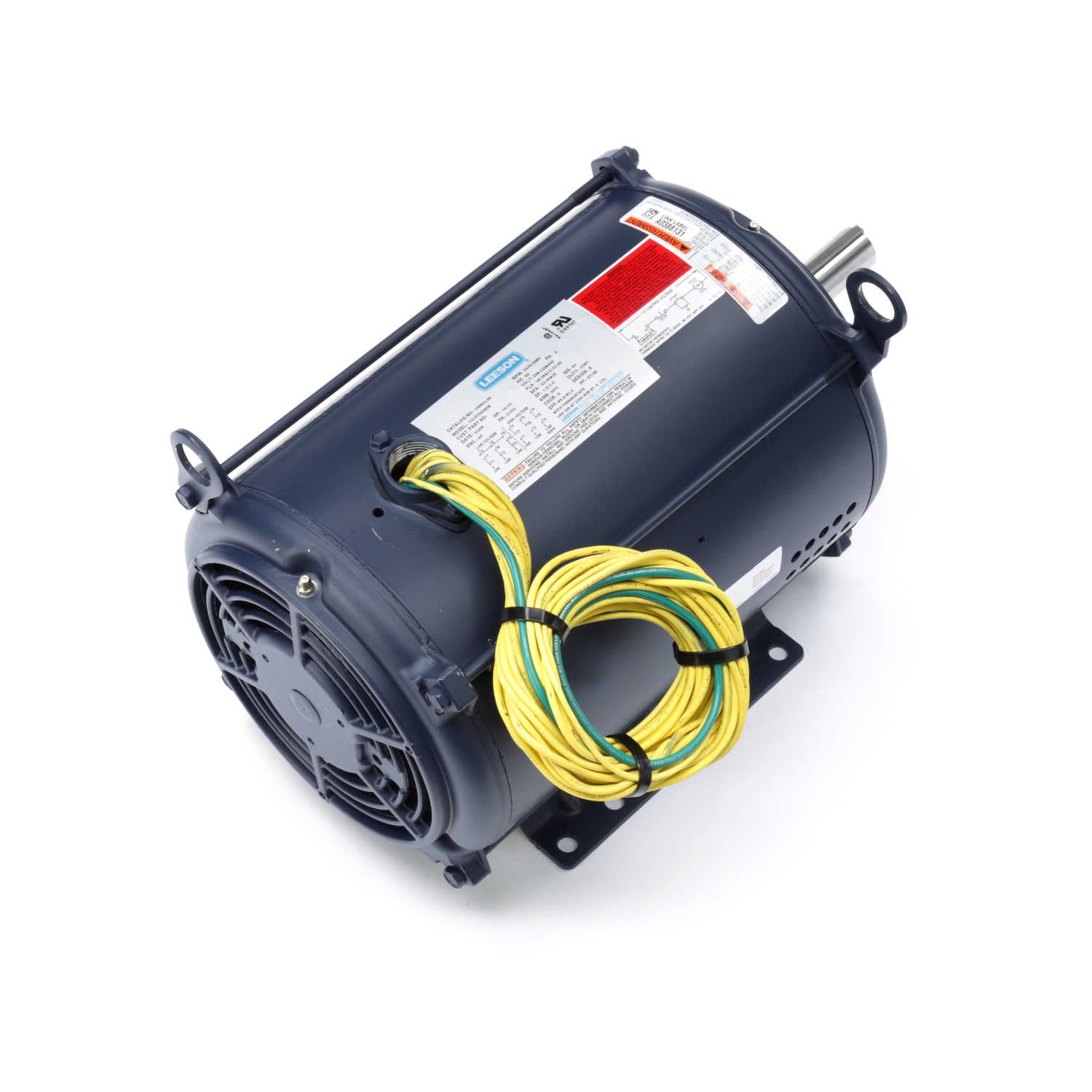

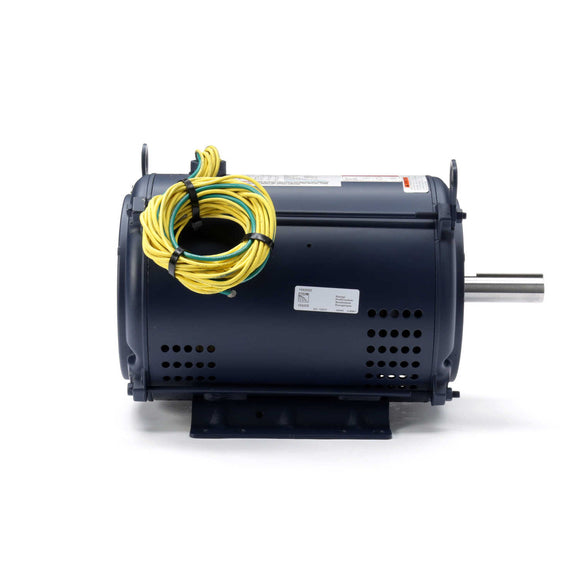

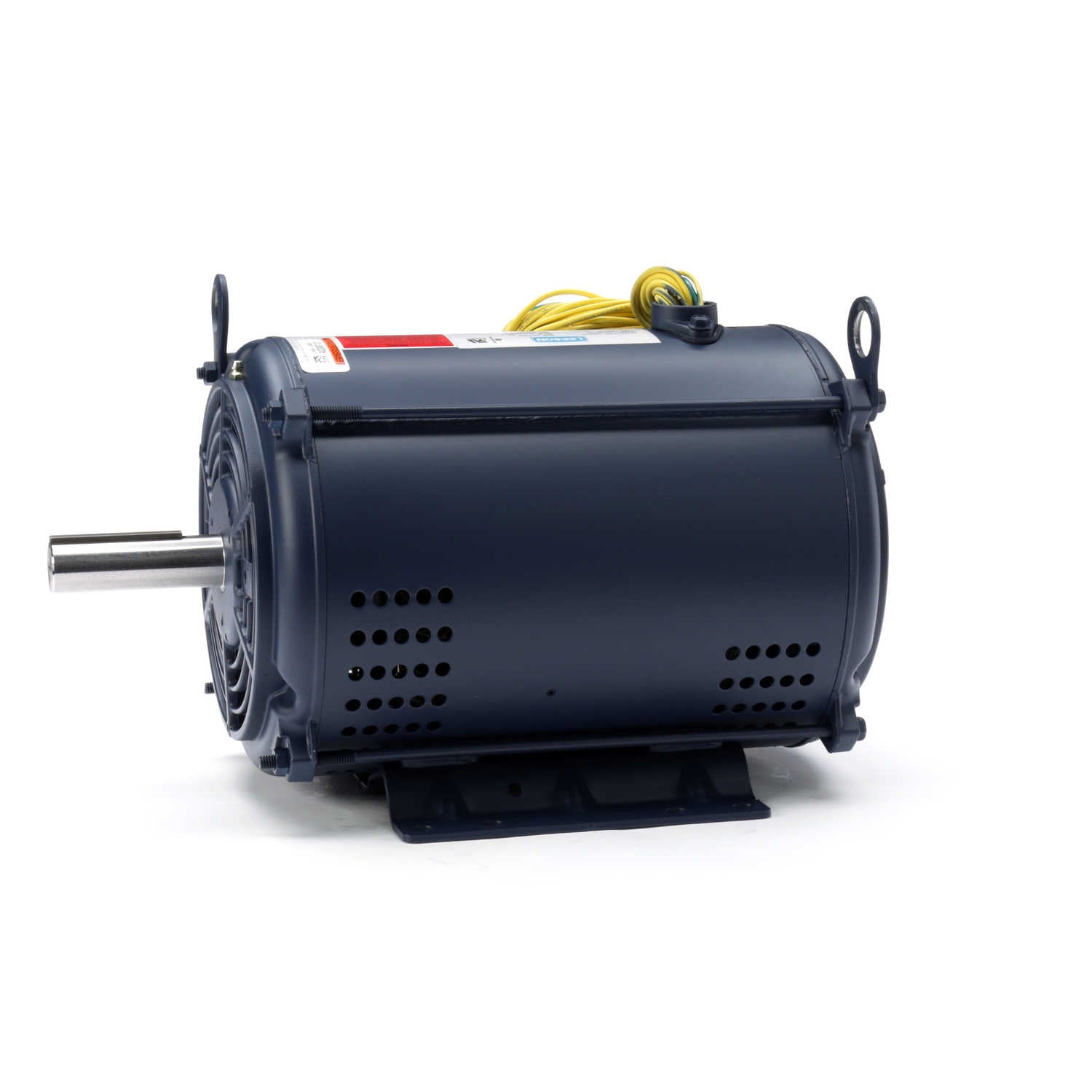

Grain Dryer / Centrifugal Fan Motor
Features:
• 268% Starting Torque
• Oversized sealed bearings
• Rodent Screen Protection
• Rolled Steel frame with cast iron endbells
• Epoxy painted
• 91.2% efficient
Features
- Class “F” insulation system
- Overload protected
- Keyed shaft with 1/4-20 UNC tapped hole on end
- 34” long leads
- Capacitors shipped loose on 1-phase designs
- Motor venting protected against insects and rodents
- Double sealed ball bearings
General Specifications
| UPC: | 691720154670 | Weight: | 114.00 LB |
| Packaged Length: | 22.5 IN | Packaged Width: | 16.81 IN |
| Packaged Height: | 14 IN |
Nameplate Specifications
| Output HP: | 10 Hp | Output KW: | 7.5 kW |
| Frequency: | 60/60 Hz | Voltage: | 208-220/440 V |
| Current: | 28.0-26.0/13.0 A | Speed: | 3470 rpm |
| Service Factor: | 1.5 | Phase: | 3 |
| Efficiency: | 85.5 % | Power Factor: | 87 |
| Duty: | Continuous | Insulation Class: | B |
| Design Code: | B | KVA Code: | G |
| Frame: | 215TZ | Enclosure: | Drip Proof |
| Thermal Protection: | No | Ambient Temperature: | 40 °C |
| Drive End Bearing Size: | 307 | Opp Drive End Bearing Size: | 206 |
| UL: | Recognized | CSA: | Y |
| CE: | N | IP Code: | 22 |
Technical Specifications
| Electrical Type: | Squirrel Cage Induction Run | Starting Method: | Across The Line |
| Poles: | 2 | Rotation: | Reversible |
| Resistance Main: | 1.8 Ohms | Mounting: | Rigid Base |
| Motor Orientation: | Horizontal | Drive End Bearing: | Ball |
| Opp Drive End Bearing: | Ball | Frame Material: | Rolled Steel |
| Shaft Type: | Single Special Extension | Overall Length: | 17.41 in |
| Frame Length: | 11.15 in | Shaft Diameter: | 1.125 in |
| Shaft Extension: | 3.59 in | Assembly/Box Mounting: | F3 |
Speed Characteristics
| Curvepoint | Current (Amps) | Current (%) | Torque (LB-FT) | Torque (%) | Speed (RPM) | Rated Output (KW) | Power Factor (%) | Rated Output (Hp) |
| 2/3 | 62.70 | 482.0 | 25.00 | 167.0 | 2,400 | 0.00 | 0.0 | 15.00 |
| No Load | 5.40 | 42.0 | 0.00 | 0.0 | 3,600 | 0.00 | 0.0 | 15.00 |
| Locked-Rotor | 80.00 | 654.0 | 22.50 | 150.0 | 0 | 0.00 | 54.5 | 15.00 |
| Pull-Up | 69.00 | 531.0 | 20.50 | 137.0 | 1,800 | 0.00 | 0.0 | 15.00 |
| 1/3 | 73.20 | 563.0 | 20.00 | 133.0 | 1,200 | 0.00 | 0.0 | 15.00 |
| Full Load | 13.00 | 100.0 | 15.00 | 100.0 | 3,470 | 0.00 | 0.0 | 15.00 |
| Break-Down | 48.10 | 370.0 | 38.50 | 257.0 | 2,830 | 0.00 | 79.0 | 15.00 |
Load Characteristics
| % of Rated Load | 100 % | 115 % |
| Current (Amps) | 13.00 | 15.00 |
| Rated Output (KW) | 8.58 | 9.96 |
| Efficiency (%) | 87.0 | 86.1 |
| Power Factor (%) | 87.4 | 89.0 |
| Speed (RPM) | 3,484 | 3,463 |
| Temp. Rise @ FL | 0.0 | 0.0 |
| Torque (LB-FT) | 15.08 | 17.44 |
