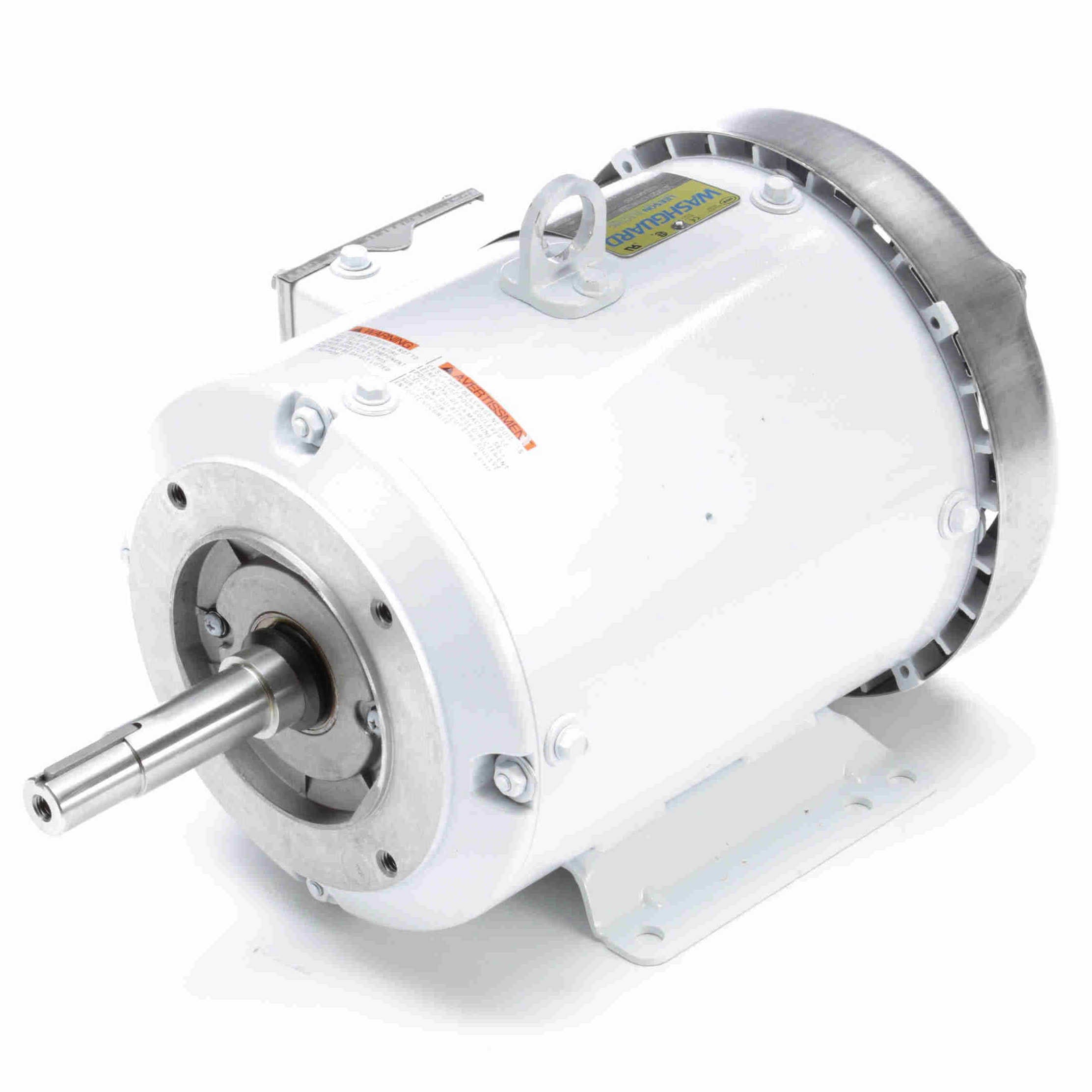

132442.00 Leeson 3HP White Duck Washdown Pump Electric Motor, 1800RPM-1

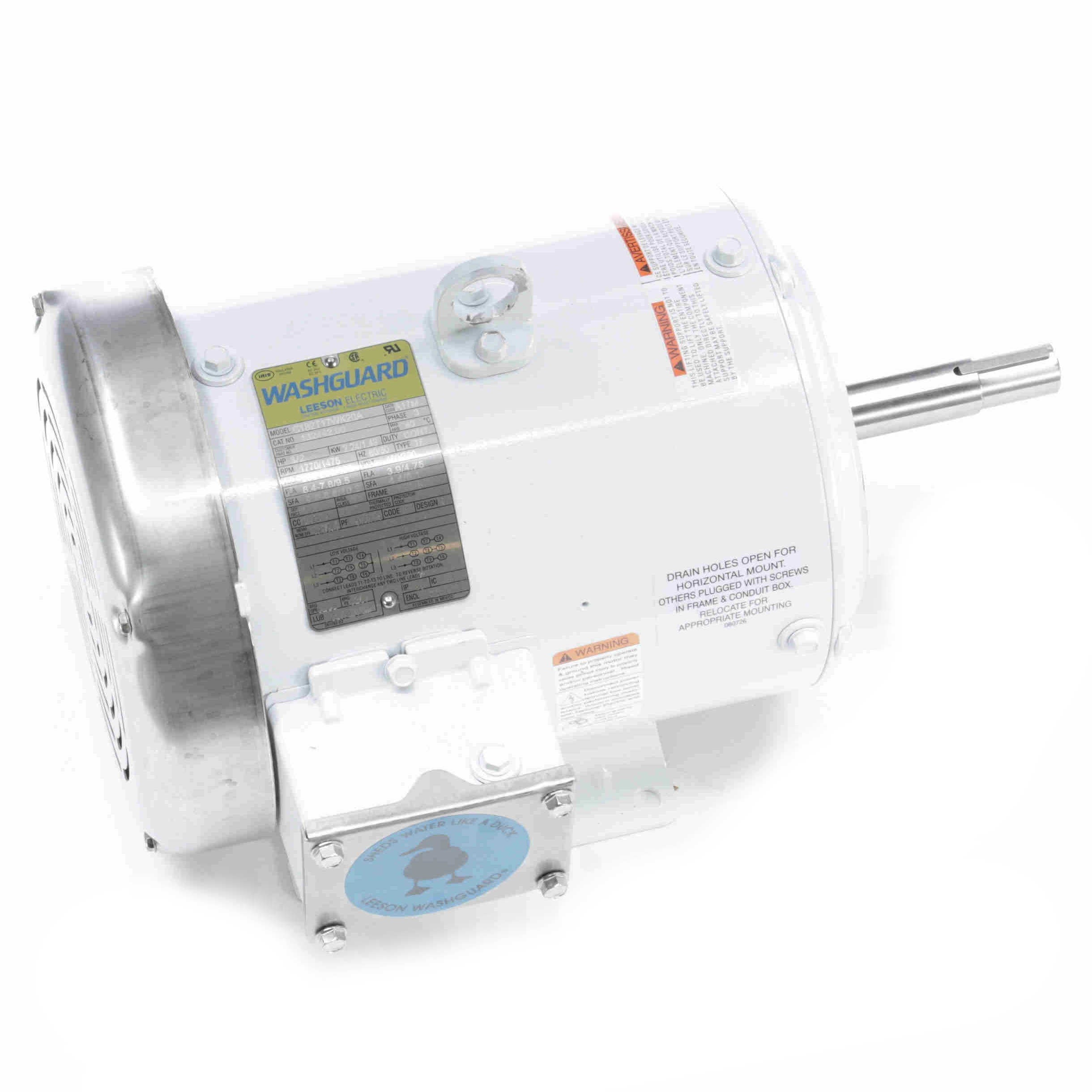

132442.00 Leeson 3HP White Duck Washdown Pump Electric Motor, 1800RPM-2

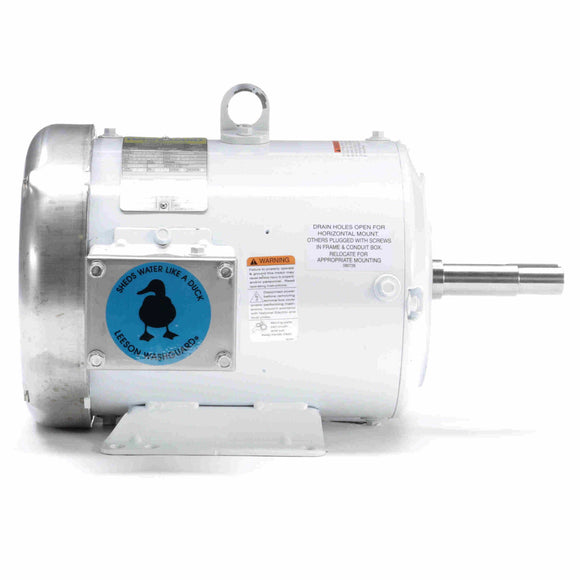

132442.00 Leeson 3HP White Duck Washdown Pump Electric Motor, 1800RPM-3

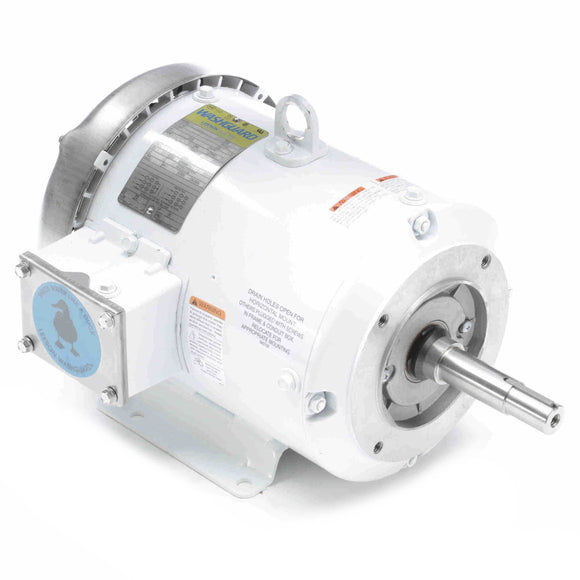

132442.00 Leeson 3HP White Duck Washdown Pump Electric Motor, 1800RPM-4

132442.00 Leeson 3HP White Duck Washdown Pump Electric Motor, 1800RPM

$1,415.22 USD $2,917.00 USD Save $1,501.78 USD

Shipping calculated at checkout

Leeson Electric (Regal Rexnord) SKU: 132442.00 Barcode: 691720052099

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Features

  • USDA-approved epoxy painted motors
  • NEMA motors
  • Rigid base and C face mount types
  • UL recognized and CSA certified
  • Double lip contact seals and v-ring seals used for shaft seals

General Specifications

UPC: 691720052099 Weight: 90.00 LB
Packaged Length: 17.94 IN Packaged Width: 13.06 IN
Packaged Height: 12.88 IN Country of Origin: Mexico

Nameplate Specifications

Output HP: 3 Hp Output KW: 2.2 kW
Frequency: 60 Hz Voltage: 208-230/460 V
Current: 8.4-7.8/3.9 A Speed: 1770 rpm
Service Factor: 1.15 Phase: 3
Efficiency: 89.5 % Power Factor: 80.5
Duty: Continuous Insulation Class: F
Design Code: B KVA Code: K
Frame: 182JM Enclosure: Totally Enclosed Fan Cooled
Thermal Protection: No Protection Ambient Temperature: 40 °C
Drive End Bearing Size: 6207 Opp Drive End Bearing Size: 6205
UL: Recognized CSA: Y
CE: Y IP Code: 55
Number of Speeds: 1

Technical Specifications

Electrical Type: Squirrel Cage Induction Run Starting Method: Across The Line
Poles: 4 Rotation: Reversible
Resistance Main: 6.08 Ohms Mounting: Rigid Base
Motor Orientation: Horizontal Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: JM Overall Length: 16.13 in
Frame Length: 9.00 in Shaft Diameter: 0.875 in
Shaft Extension: 4.28 in Assembly/Box Mounting: F1/F2 CAPABLE

Speed Characteristics

Curvepoint Current (Amps) Current (%) Torque (LB-FT) Torque (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Break-Down 21.50 551.0 36.00 404.0 0 0.00 0.0 3.00
Full Load 3.90 100.0 8.90 100.0 1,770 0.00 80.5 3.00
Pull-Up 33.00 846.0 21.00 236.0 0 0.00 0.0 3.00
Locked-Rotor 33.50 859.0 22.50 253.0 0 0.00 0.0 3.00

Load Characteristics

% of Rated Load 0 % 25 % 50 % 75 % 100 % 115 % 125 % 150 %
Current (Amps) 1.90 2.10 2.56 3.18 3.90 4.40 4.73 5.61
Rated Output (KW) 0.11 0.69 1.28 1.87 2.50 2.86 3.13 3.79
Efficiency (%) 0.0 80.8 87.7 89.6 89.5 89.9 89.5 88.5
Power Factor (%) 6.9 41.4 62.7 73.8 80.5 81.6 83.0 84.7
Speed (RPM) 1,798 1,792 1,785 1,777 1,770 1,766 1,755 1,750
Temp. Rise @ FL 0.0 0.0 0.0 0.0 40.0 47.0 60.0 0.0
Torque (LB-FT) 0.00 2.20 4.42 6.64 8.91 10.26 11.20 13.49
